ASRock K7S41 / K7S41GX Motherboard

EnglishEnglish

English

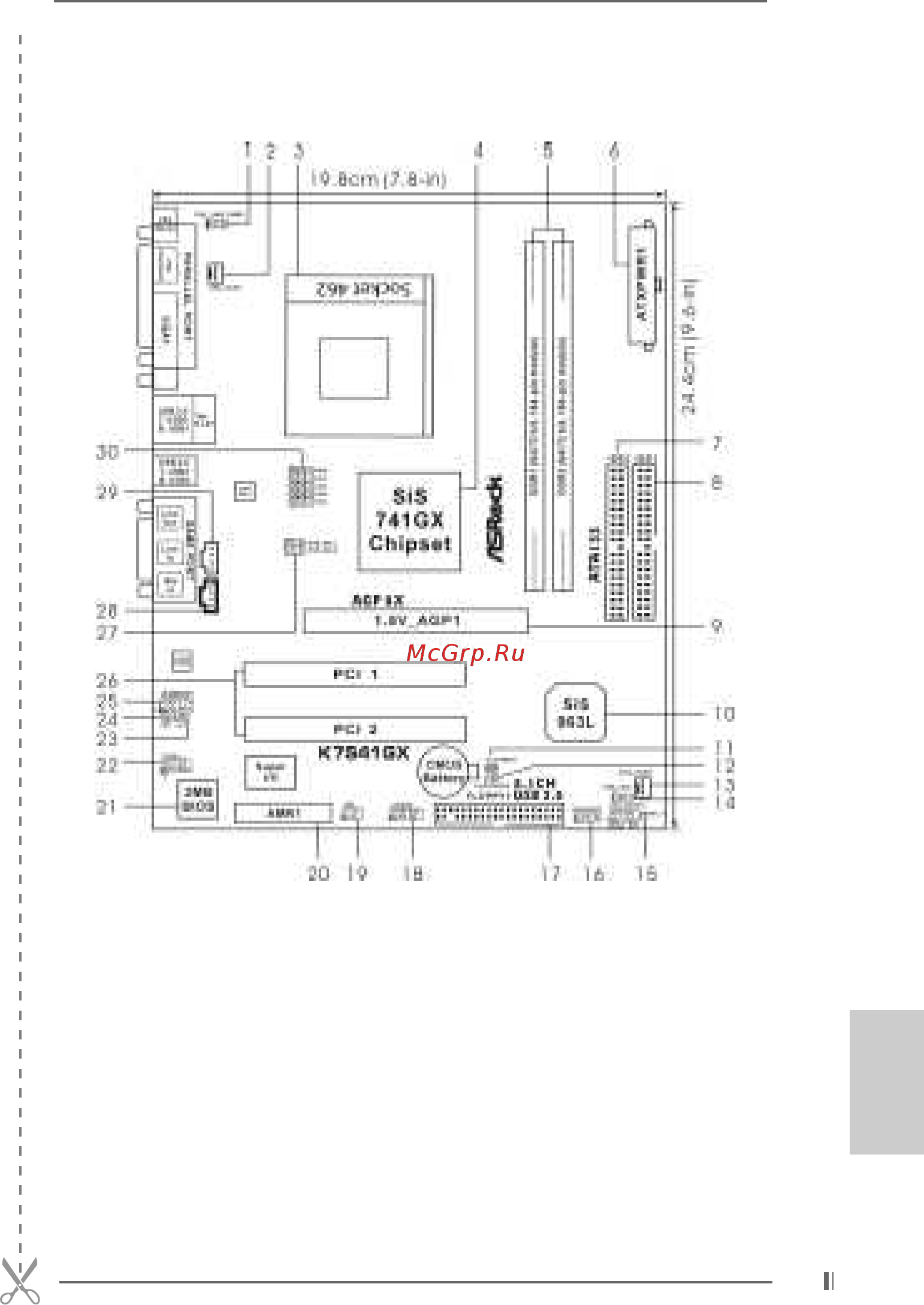

Motherboard LMotherboard L

Motherboard L

ayout ayout

ayout

(K7S41GX)(K7S41GX)

(K7S41GX)

1 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1)

2 CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1)

3 CPU Socket 18 USB 2.0 Connector (USB45, Blue)

4 North Bridge Controller 19 Infrared Module Connector (IR1)

5 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1)

6 ATX Power Connector (ATXPWR1) 21 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1)

8 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper

9 AGP Slot (1.5V_AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 Front Panel Audio Connector (AUDIO1)

11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2)

12 Clear CMOS (CLRCMOS2, 2-pin jumper) 27 FSB Select Jumpers (FSB_SEL0/FSB_SEL1)

13 Chassis Fan Connector (CHA_FAN1) 28 Internal Audio Connector: CD1 (Black)

14 Power LED Connector (PWR_LED1) 29 Internal Audio Connector: AUX1 (White)

15 System Panel Connector (PANEL1) 30 FID Jumpers (FID0, FID1, FID2, FID3, FID4)
