17

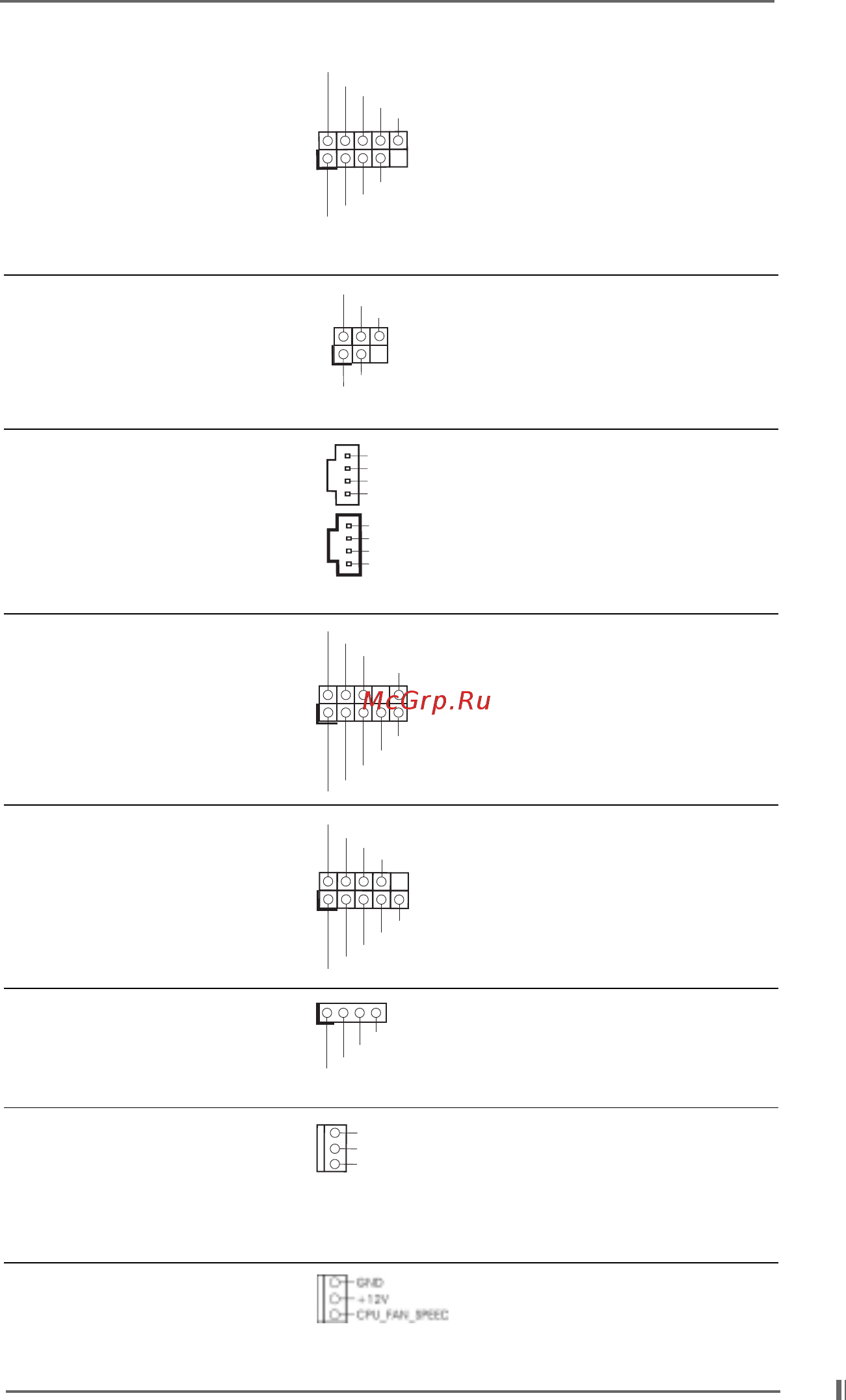

USB 2.0 Connector There are 4 default USB 2.0
(9-pin USB45) ports on the rear panel. If the
(see p.7/p.8 No. 18) rear USB ports are not sufficient,
this USB 2.0 connector is
available to support 2 additional
USB 2.0 ports.
Infrared Module Connector This connector supports an
(5-pin IR1) optional wireless transmitting
(see p.7/p.8 No. 19) and receiving infrared module.
Internal Audio Connectors These connectors allow you to
(4-pin CD1, 4-pin AUX1) receive stereo audio input from
(CD1: see p.7/p.8 No. 28) sound sources such as a CD-
(AUX1: see p.7/p.8 No. 29) ROM, DVD-ROM, TV tuner card,
or MPEG card.
Front Panel Audio Connector This is an interface for front panel
(9-pin AUDIO1) audio cable that allows conve-
(see p.7/p.8 No. 25) nient connection and control of
audio devices.
System Panel Connector This connector accommodates
(9-pin PANEL1) several system front panel
(see p.7/p.8 No. 15) functions.
Chassis Speaker Connector Please connect the chassis
(4-pin SPEAKER 1) speaker to this connector.
(see p.7/p.8 No. 16)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(see p.7/p.8 No. 13) match the black wire to the
ground pin.
CPU Fan Connector Please connect a CPU fan cable
(3-pin CPU_FAN1) to this connector and match
(see p.7/p.8 No. 2) the black wire to the ground pin.
USB_PWR
USB_PWR
P+5
P-5
P+4
P-4
GND
GND
DUMMY
1
DUMMY
GND
+5V
IRTX
IRRX
1
+5V
DUMMY
DUMMY
SPEAKER
1
GND
DUMMY
+5VA
BACKOUT-R
BACKOUT-L
AUD-OUT-L
AUD-OUT-R
MIC-POWER
MIC
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
AUX-L
GND
GND
AUX-R
CD-L
GND
GND
CD-R
CD1
AUX1
GND
+12V
CHA_FAN_SPEED
