ASRock Beebox Series [2/2] Inch hard drive how to install the hard drive c

如何安裝硬碟/ So installieren Sie die Festplatte / Comment installer le disque dur / Come installare l’unità HDD / Cómo instalar la unidad de disco duro / Установка жесткого диска /

Como Instalar o Disco Rígido / 하드 드라이브를 설치하는 방법 / ハードドライブの取り付け方法

Beebox 系列擺放/ Positionen der Beebox-Serie / Positions de la série Beebox / Posizioni della serie Beebox / Posiciones de la serie Beebox / Положения серии Beebox /

Posições de série Beebox / Beebox 시리즈의 위치 / Beebox シリーズの位置

USB 電源開啟功能/ USB-Einschaltfunktion / Fonction d'alimentation USB / Funzione di accensione USB / Función de alimentación USB / Функция включении питания через USB /

Função de Ligamento USB / USB 전원 켜기 기능/ USB 電源オン機能

如何安裝記憶體模組 / So installieren Sie die Speichermodule / Comment installer les modules de mémoire / Come installare i moduli di memoria / Cómo instalar los módulos de memoria /

Установка модулей памяти / Como Instalar os Módulos de Memória / 메모리 모듈/ メモリモジュール

如何安裝 VESA 支架/ So installieren Sie die VESA-Halterung / Comment installer le support VESA / Come installare il supporto VESA / Cómo instalar el soporte VESA /

D

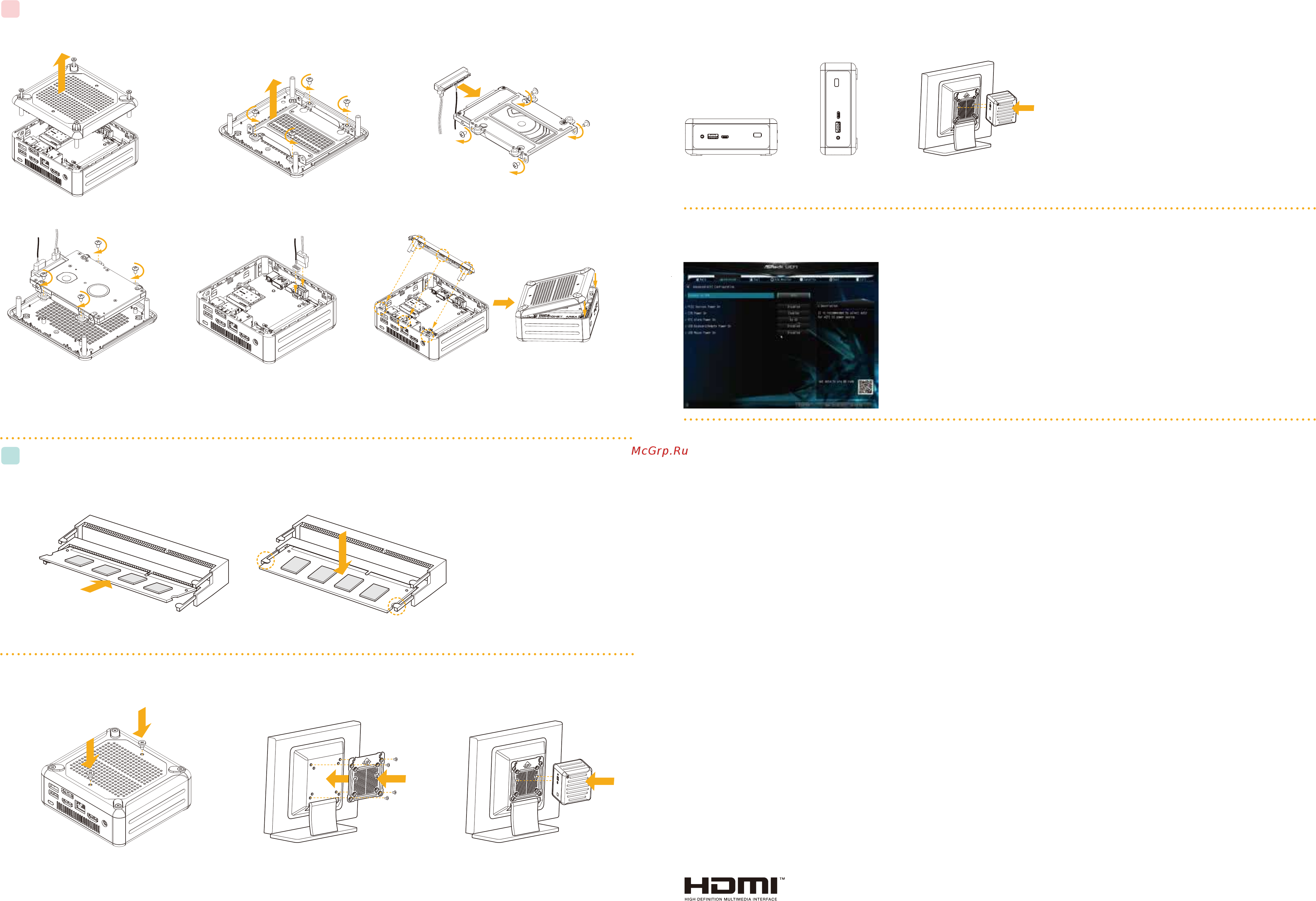

How to Install the VESA Bracket

1. Remove the four screws on the bottom case.

en li up and remove the bottom panel.

2. Unscrew the four screws that hold the HDD

cage in place.

3. Install the HDD in the cage using the four

screws. en connect the SATA cable to the

HDD.

Please visit our web site at http:/www.asrock.com for:

A list of tested memory, mSATA, 2.5” SATA HDD, wireless interface cards and operating systems that are supported; for information about downloading the latest driver and BIOS updates; as well

- Eine Liste unterstützter getesteter Speichermodule, mSATA-, 2,5-Zoll SATA-Festplatten, WLAN-Schnittstellenkarten und Betriebssysteme;

- Informationen zum Herunterladen aktuellster Treiber- und BIOS-Versionen;

- sowie aktuellste Informationen über unterstützte Produkte.

Veuillez visiter notre site Web à l'adresse http:/www.asrock.com pour :

- Une liste de mémoires, disques mSATA, disques durs SATA 2,5", cartes d'interface sans l et systèmes d'exploitation testés et pris en charge ;

- Des informations sur le téléchargement des dernières mises à jour du pilote et du BIOS ;

- Les dernières informations d'assistance produit.

Visitare il nostro sito all’indirizzo http:/www.asrock.com per:

- L’elenco di memorie, mSATA, HDD SATA 2.5", schede d’interfaccia wireless e sistemi operativi che sono stati testati e sono supportati;

- Informazioni sul download dei driver più recenti e degli aggiornamenti BIOS;

- Списке проверенной памяти, mSATA, жестком диске SATA 2,5 дюйма, беспроводных интерфейсных платах и поддерживаемых операционных системах;

- информации о загрузке последних версий драйверов и обновлений BIOS

- а также актуальной информации о поддержке изделия.

Por favor, visite nosso Website em http: /www.asrock.com para:

- Uma lista de memórias testadas, mSATA, HDD 2.5" SATA, placas de interface sem o e sistemas operacionais que são suportados;

- para informações sobre como baixar as últimas atualizações de drivers e BIOS;

- bem como as mais recentes informações de suporte do produto.

다음 항목은 당사 웹사이트 http:/www.asrock.com을 참조하십시오.

-테스트한 메모리, mSATA, 2.5” SATA HDD, 무선 인터페이스 카드 및 지원되는 운영 체제의 목록

-최신 드라이버 및 BIOS 업데이트 다운로드에 관한 정보

panel and secure it using the four screws.

5. Connect the SATA Data and Power

Cable to the motherboard.

1. Attach the two screws to the base of the

Beebox series.

USB Power On Function allows system power on via USB keyboard/mouse.

is function is useful when the Beebox series is mounted behind your display/TV.

*You can also easily power on/o the Beebox series by using the remote controller.

Note:

ensure better cooling performance.

e Beebox series can be placed in vertical or horizontal position.
