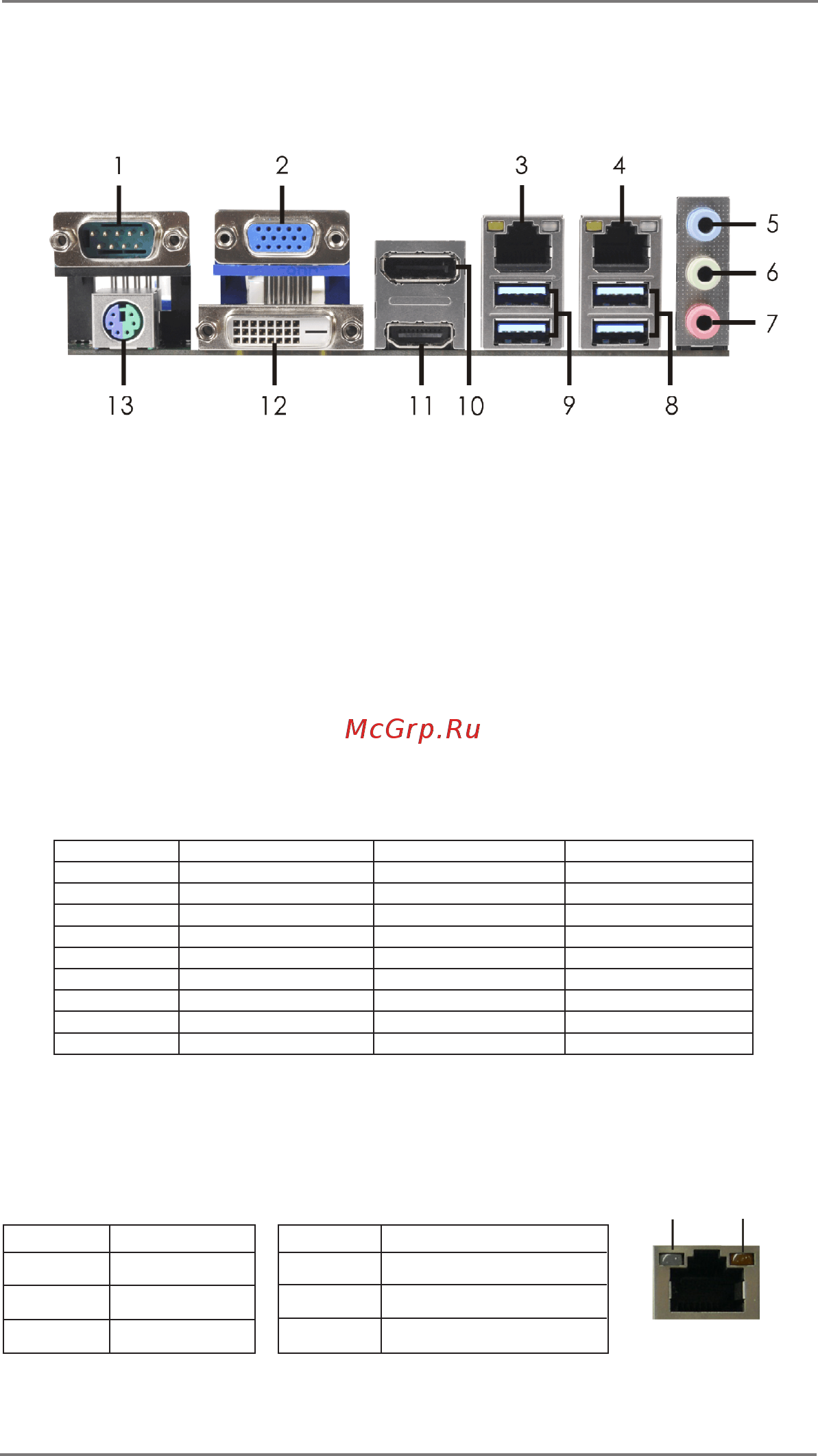

1.4 I/O Panel
1 COM Port (COM1) (RS232/422/485)*
2 D-Sub Port (VGA1)
3 LAN RJ-45 Port**
4 LAN RJ-45 Port**
5 Line In (Light Blue)
6 Line out (Lime)
7 Microphone (Pink)
8 USB 3.1 Ports (USB3_3_4)
9 USB 3.1 Ports (USB3_1_2)
10 DisplayPort (DP1)
11 HDMI Port (HDMI1)
12 DVI-D Port (DVI1)
13 PS/2 Keyboard/Mouse Port
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below table for
the pin denition. In addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 31 for details.
COM1 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data RX+ N/A
3 TXD, Transmit Data TX+ RTX+
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 No Power/5V/12V N/A N/A
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
