36

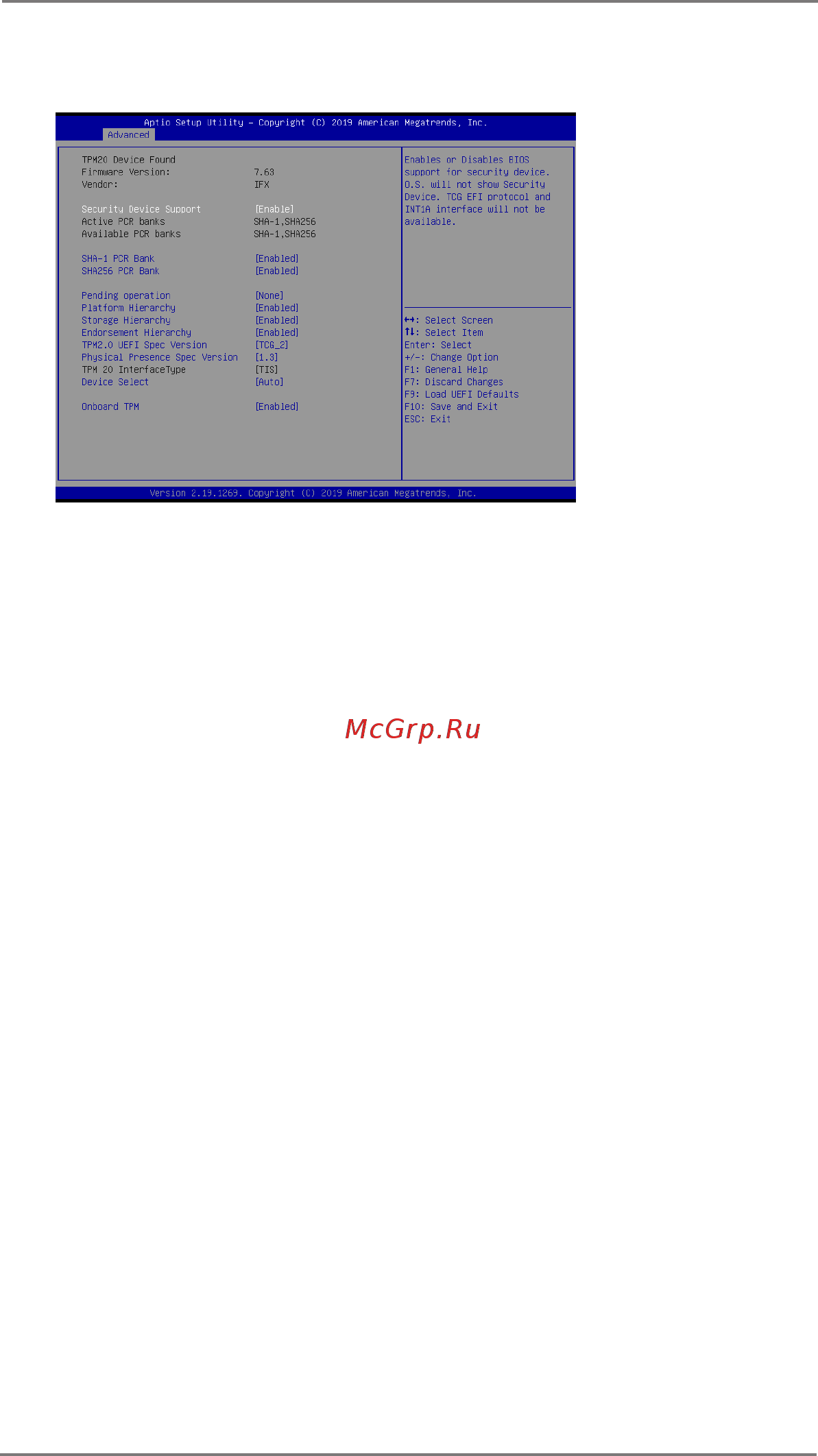

3.3.9 Trusted Computing
Security Device Support
Enable or disable BIOS support for security device.
Onboard TPM (For IMB-1216M/P Only)
Use this to enable or disable onboard TPM. The default value is [Enabled].
