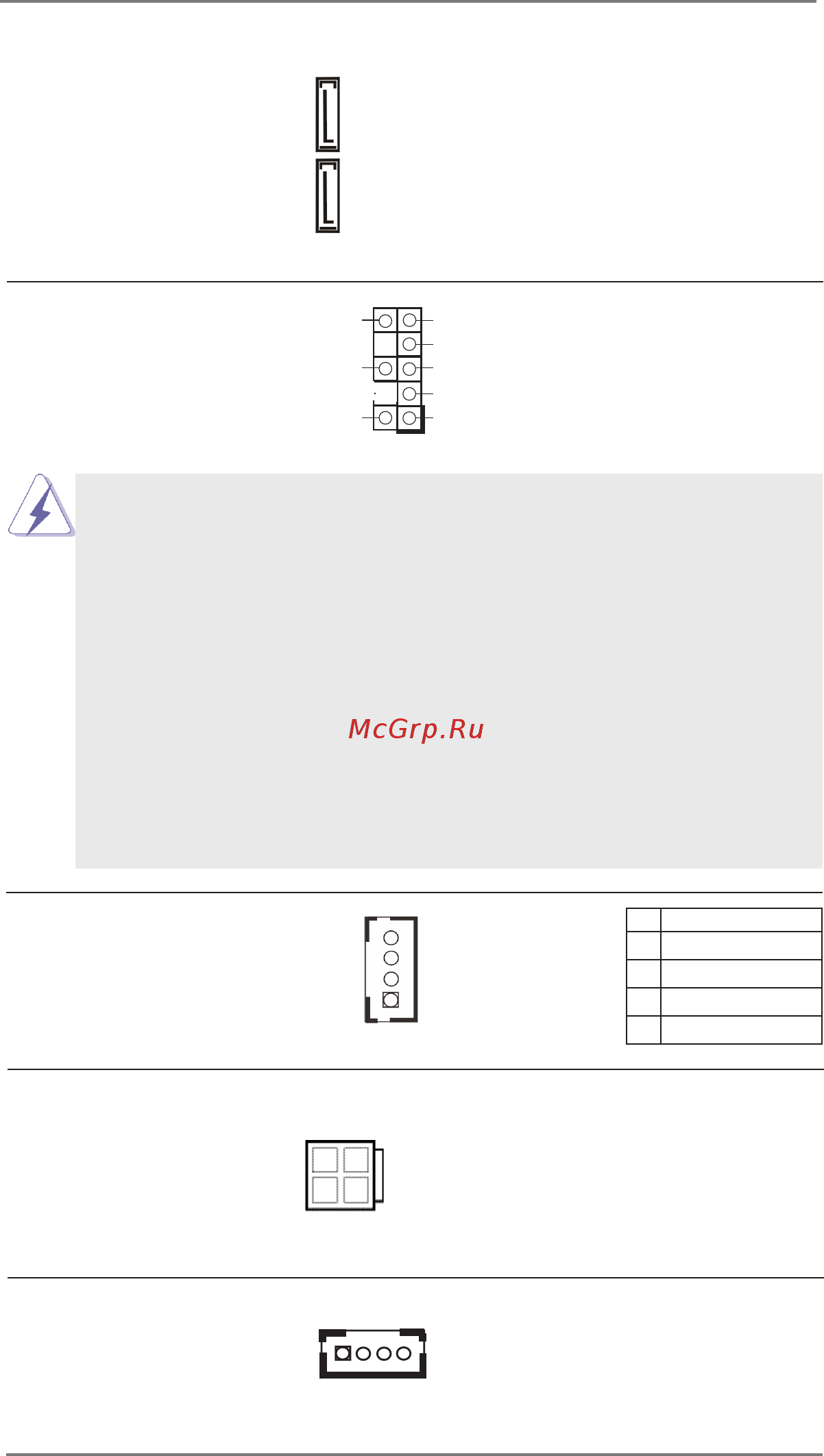

19
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 27)
SATA3 Connectors These two Serial ATA3 (SATA3)
(SATA3_1~2: see p.8, No. 34)
connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.8 No. 30)
convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
SATA3_1
SATA3_2
PIN Signal Name
4 OUTRN
3 OUTRP
2 OUTLP
1 OUTLN
1
4
2
3
1
ATX Power Connector (Input +12V & +19V~+28V)
Please connect a DC
(4-pin DC_4PIN1)
power supply to this
(see p.8 No. 28)
connector.
1-2 : GND
3-4 : DC Input
1
1
4-pin UPS Module Power Input Connector
Please connect a
(Input +12V & +19V~+28V)
UPS module to this
(4-pin FROM_UPS1)
connector.
(see p.8 No. 26)
J_SENSE
OUT2_L
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
