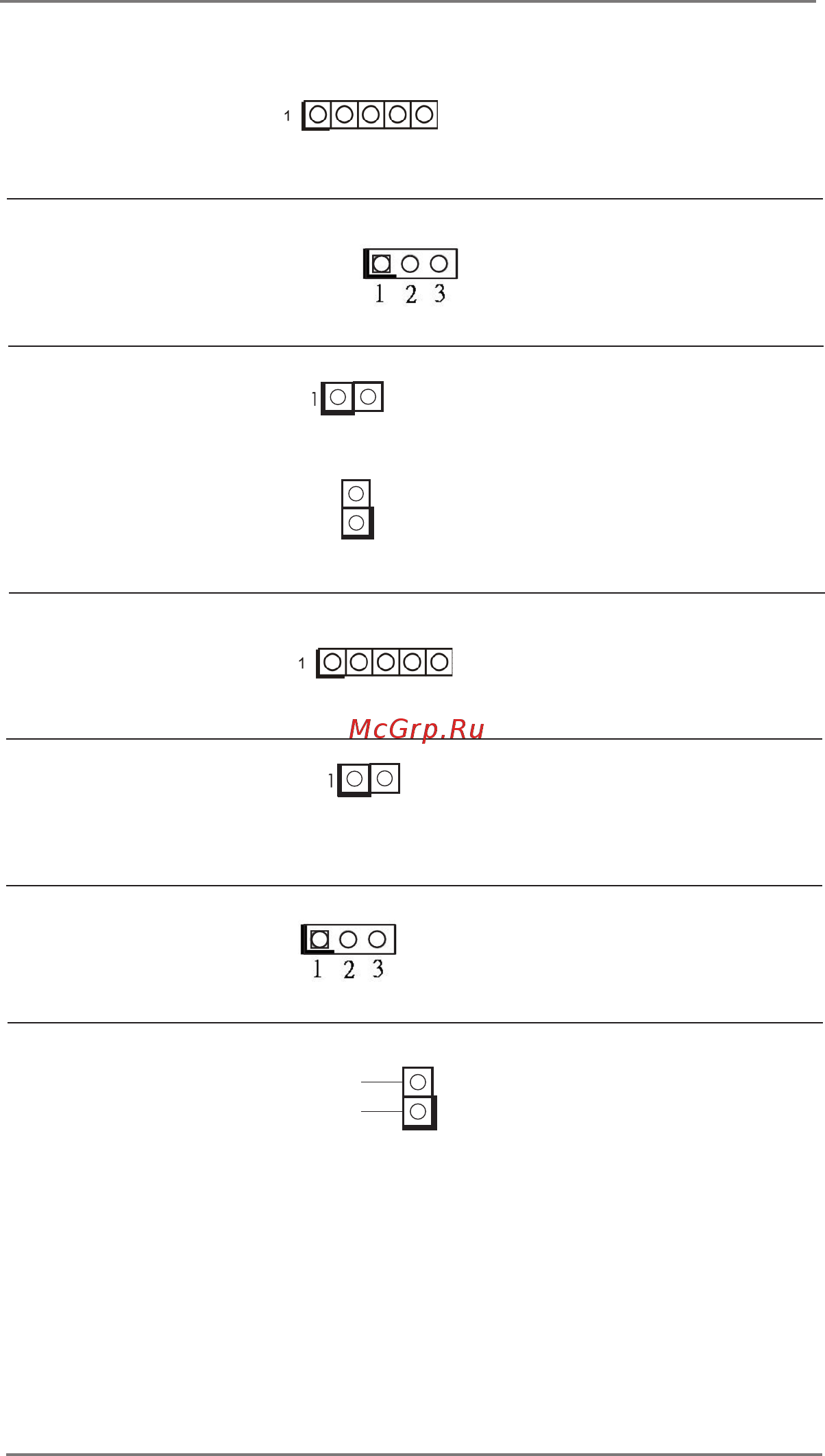

Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC : +5V
(5-pin BKT_PWR1)
2-3 : LCD_BLT_VCC : +12V
(see p.8, No. 13)
4-5 : LCD_BLT_VCC : DC_IN
COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin SET_CM1, 2, 3, 4)
2-3 : +12V
(see p.8, No. 12)
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.8 No. 15)
Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect LCD_VCC
(see p.8 No. 18)
Short : No Protect LCD_VCC
Panel Power Select (LCD_VCC) 1-2 : LCD_VCC : +3V
(5-pin PNL_PWR1)
2-3 : LCD_VCC : +5V
(see p.8, No. 20)
4-5 : LCD_VCC : +12V
PWR_BAT2
Open : Normal
(2-pin PWR_BAT2)
Close : Charge Battery
(see p.8, No. 4)
1
BLT_PWM1 1-2 : eDP
(3-pin BLT_PWM1)
2-3 : LVDS
(see p.8, No. 6)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1: see p.8, No. 23)
CASE OPEN detection feature
(2-pin CI2: see p.8, No. 22)
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close
: Active Case Open
Open : Normal
CI2 :
Close
: Normal
Open : Active Case Open
1
Signal
GND
