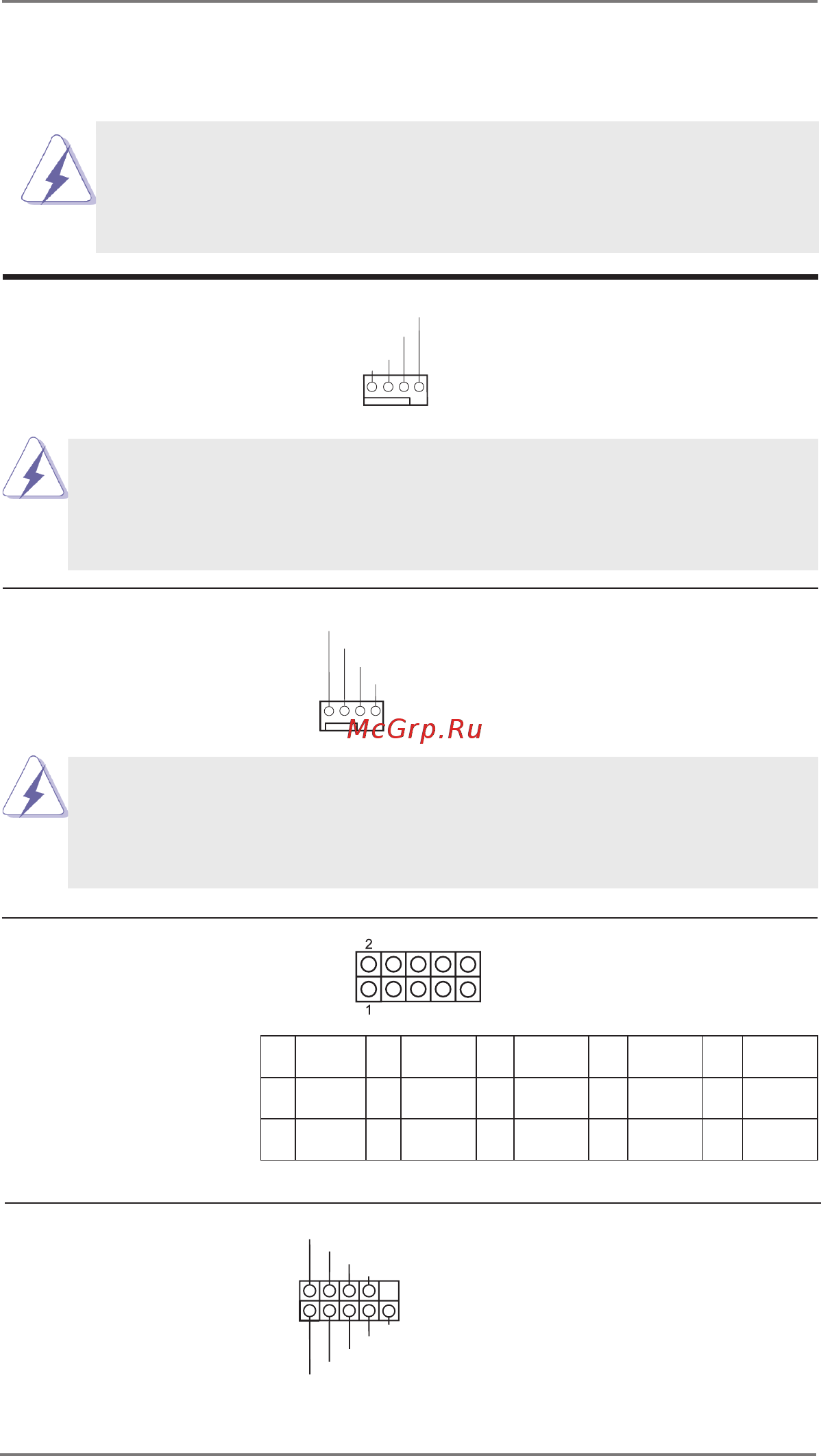

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector (+12V) Please connect the CPU fan
(4-pin CPU_FAN1)
cable to the connector and
(see p.9 No. 9)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Digital Input / Output Pin Header
(10-pin JGPIO1)
(see p.9, No. 27)
System Panel Header This header accommodates
(9-pin PANEL1)
several system front panel
(see p.9, No. 23)
functions.
Chassis Fan Connector (+12V) Please connect the chassis fan
(4-pin CHA_FAN1)
cable to the connector and
(see p.9 No. 22)
match the black wire to the
ground pin.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even without the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FAN_S PEED
FAN_SPEE D_CONTROL
GN D
+12 V
CHA_FAN_SPEED
FAN_SPEED_CONTRO L
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
PIN
Signal
Name
2
SIO_
GP71
4
SIO_
GP72
6
SIO_
GP73
8
SIO_
GP74
10 GND
1
SIO_
GP75
3
SIO_
GP76
5
SIO_
GP77
7
SIO_
GP80
9
JGPIO_
PWR
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
