42

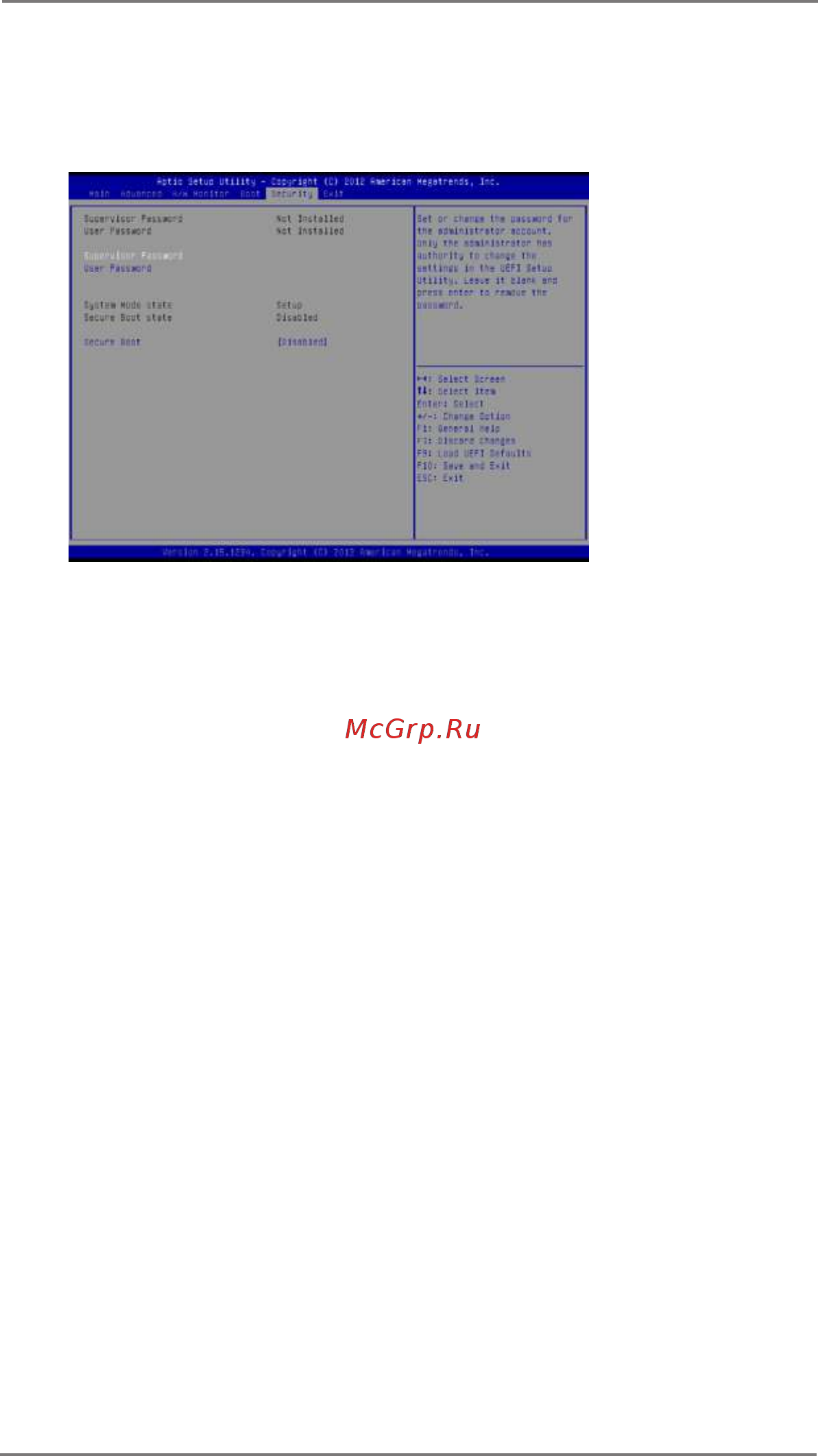

3.6 Security Screen
In this section, you may set, change or clear the supervisor/user password for the
system.
Secure Boot
Use this to enable or disable Secure Boot. The default value is [Disabled].
