ASRock IMB-150N [10/39] 12 10 11 9

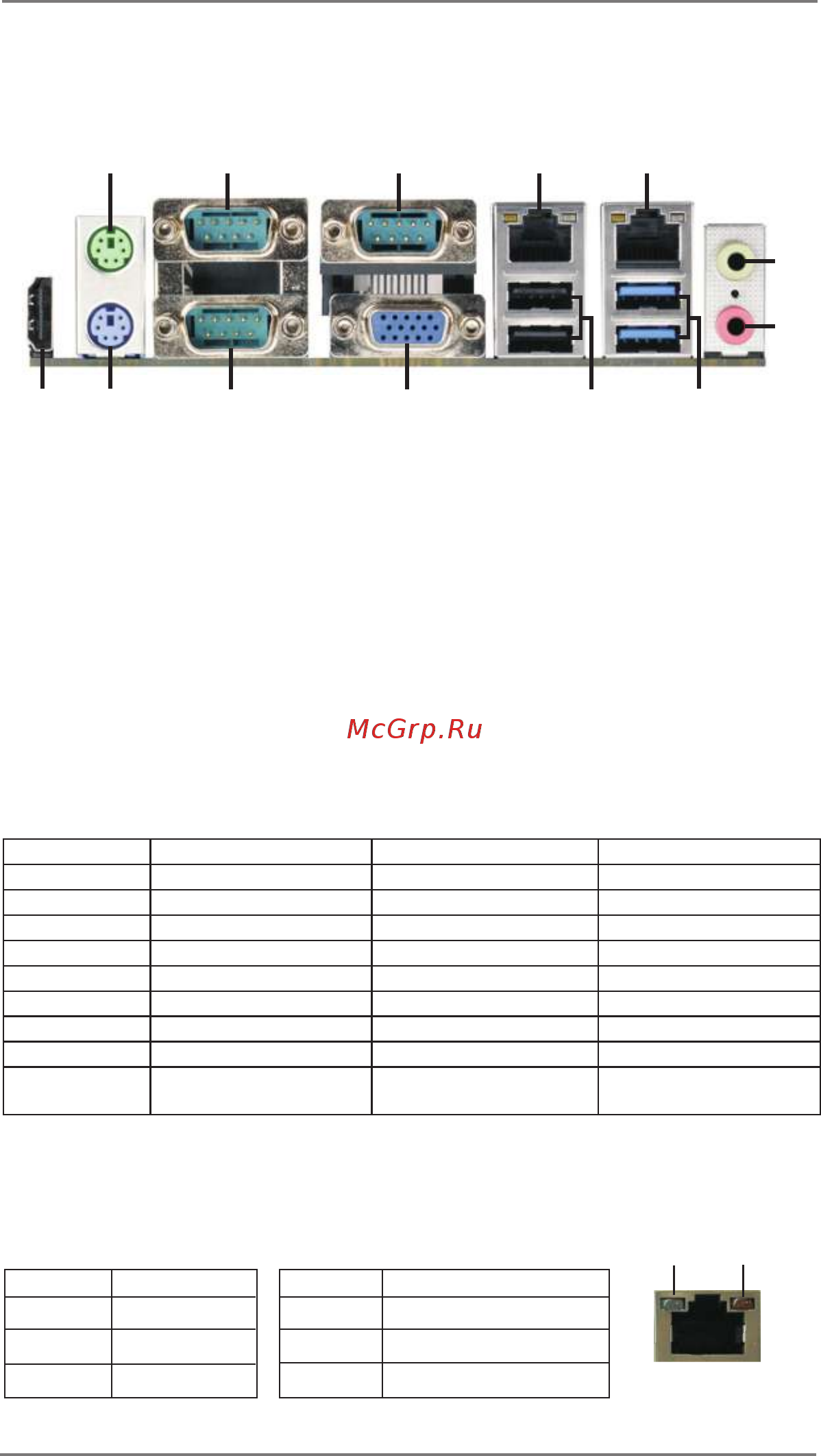

1.4 I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port

2 COM Port 1 (COM1)*

3 COM Port 3 (COM3)*

4 LAN RJ-45 Port**

5 LAN RJ-45 Port**

6 Line out (Green)

7 Microphone (Pink)

8 USB 3.0 Ports (USB3_0_1)

9 USB 2.0 Ports (USB_0_1)

10 VGA Port (VGA1)

11 COM Port 2 (COM2)*

12 PS/2 Keyboard Port

13 HDMI Port (HDMI1)

ACT/LINK

LED

SPEED

LED

LAN Port

* This motherboard supports RS232/422/485 on COM1~3 ports. Please refer to below table for

the pin denition. In addition, COM1~3 ports (RS232/422/485) can be adjusted in BIOS setup

utility > Advanced Screen > Super IO Conguration. You may refer to page 31 for details.

COM1~3 Port Pin Denition

PIN RS232 RS422 RS485

1 DCD TX- RTX-

2 RXD RX+ N/A

3 TXD TX+ RTX+

4 DTR RX- N/A

5 GND GND GND

6 DSR N/A N/A

7 RTS N/A N/A

8 CTS N/A N/A

COM1: +5V/+12V/+5VSB

COM2, 3: +5V/+12V

COM1: +5V/+12V/+5VSB

COM2, 3: +5V/+12V

COM1: +5V/+12V/+5VSB

COM2, 3: +5V/+12V
