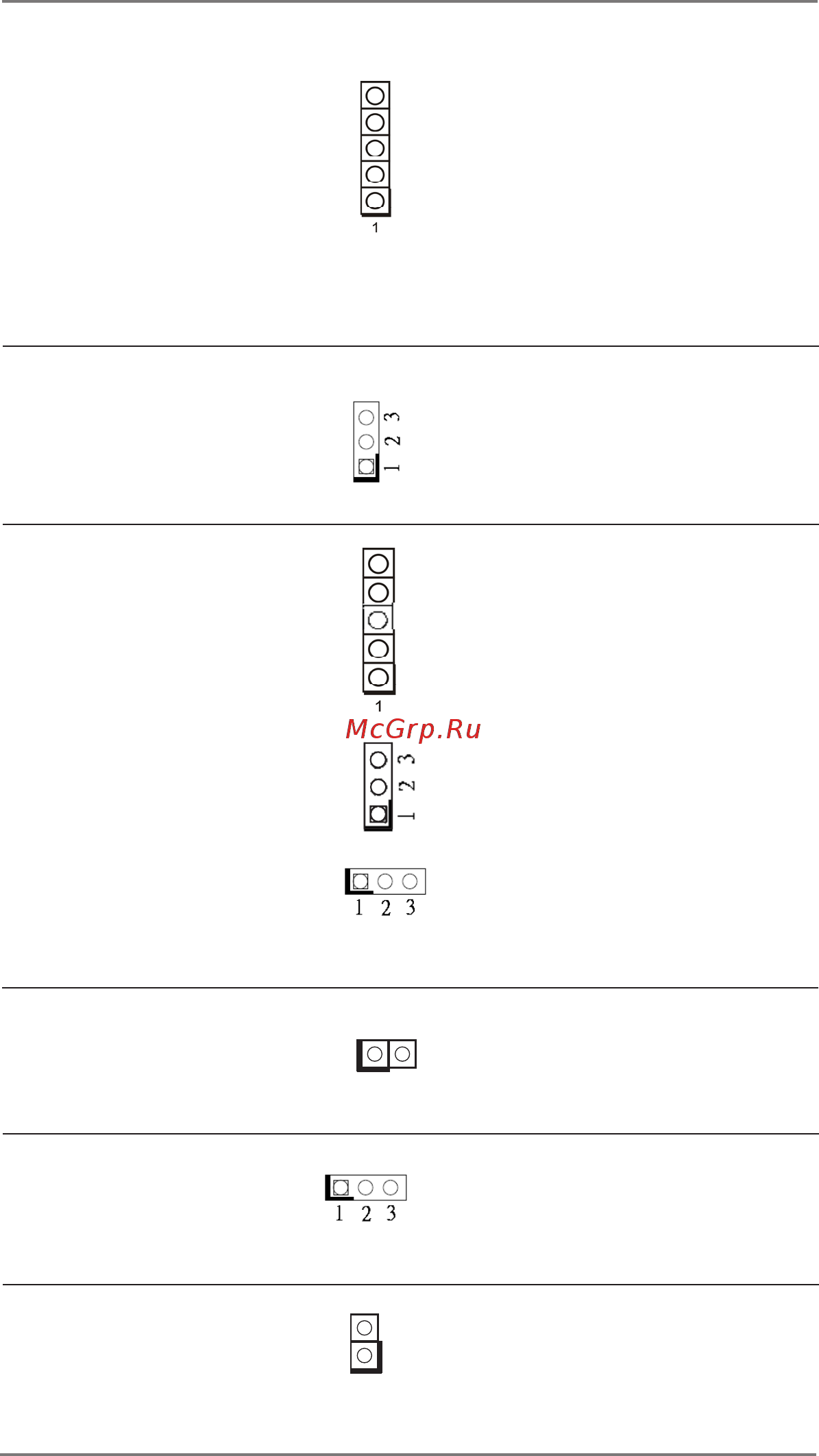

Backlight Power Selection Use this to set up the backlight

(LCD_BLT_VCC) power of the LVDS connector

(5-pin BKT_PWR1)

and the panel backlight power

(see p.8 No. 5)

of BLT_PWM1.

1-2: LCD_BLT_VCC: +5V

2-3: LCD_BLT_VCC: +12V

4-5: LCD_BLT_VCC: DC_IN

Backlight Control Level

(CON_LBKLT_CTL)

1-2: +3V Level

(3-pin BLT_PWM1)

2-3: +5V Level

(see p.8, No. 15)

COM Port PWR Setting Jumpers

1-2: +5V

(5-pin PWR_COM1, for COM Port1)

2-3: +12V

(see p.8, No. 1)

3-4: +12V

4-5: +5VSB

(3-pin PWR_COM2, for COM Port2)

1-2: +5V

(3-pin PWR_COM3, for COM Port3)

2-3: +12V

(see p.8, No. 1)

(3-pin PWR_COM4, for COM Port4)

1-2: +5V

(3-pin PWR_COM6, for COM Port6)

2-3: +12V

(see p.8, No. 22)

ME Override (Security Flash Descriptors)

Short: Override

(2-pin ME_OVR1)

Open: Normal Operation

(see p.8, No. 2)

JGPIO_JP Jumper

1-2: High

(3-pin JGPIO_JP1)

2-3: Low

(see p.8, No. 23)

mSATA Select

Open: For SATA2_2

(2-pin mSATA_SEL1)

Close: For m-SATA

(see p.8, No. 31)
