ASRock SBC-230J Руководство по настройке перемычек онлайн

ASRock SBC-230J Руководство по настройке перемычек онлайн
11 : Digital Input / Output Power Select
(JGPIO_PWR1)
1-2 : +12V
2-3 : +5V
12 : SATA Power Output Connector
13 :
System Panel Header
14 : SATA3 Connector
(SATA3_1)
15 : 2-Pin Buzzer Header
16 : LPC Header
17 :
4-Pin FAN Connector
(+12V)
18 : ATX Power Connector (Input
9V~36V
)
1-4 : GND
2-3 : DC Input
19 : Clear CMOS Header (CLRMOS1)
1-2 : Normal
2-3 : Clear CMOS
20
: GPIO Default Setting (JGPIO_SET1)
1-2 : Pull-High
2-3 : Pull-Low
6 : Inverter Power Control Wafer
(BLT_PWR1)
7
: Backlight Power Select
(LCD_BLT_VCC)
(BKT_PWR1)
1-2 : +5V
2-3 : +12V
3-4 : +12V
4-5 : DC_IN Power
8 : Backlight & Amp Volume Control
(BLT_VOL1)
9 : EDP_LVDS_J1
1-2 : eDP
2-3 : LVDS
10 : ATX/AT Mode Select (PWR_JP1)
1-2 : AT Mode
2-3 : ATX Mode
1 : EDP_LVDS_J2
1-2 : eDP
2-3 : LVDS
2 : BL2
3 :
LVDS Panel Connector
* eDP Connector
(on the Backside of PCB)
4 : BL1
5 : Panel Power Selection (LCD_VCC)
(PNL_PWR1)
1-2 : +3V
2-3 : +5V
3-4 : +5V
4-5 : +12V

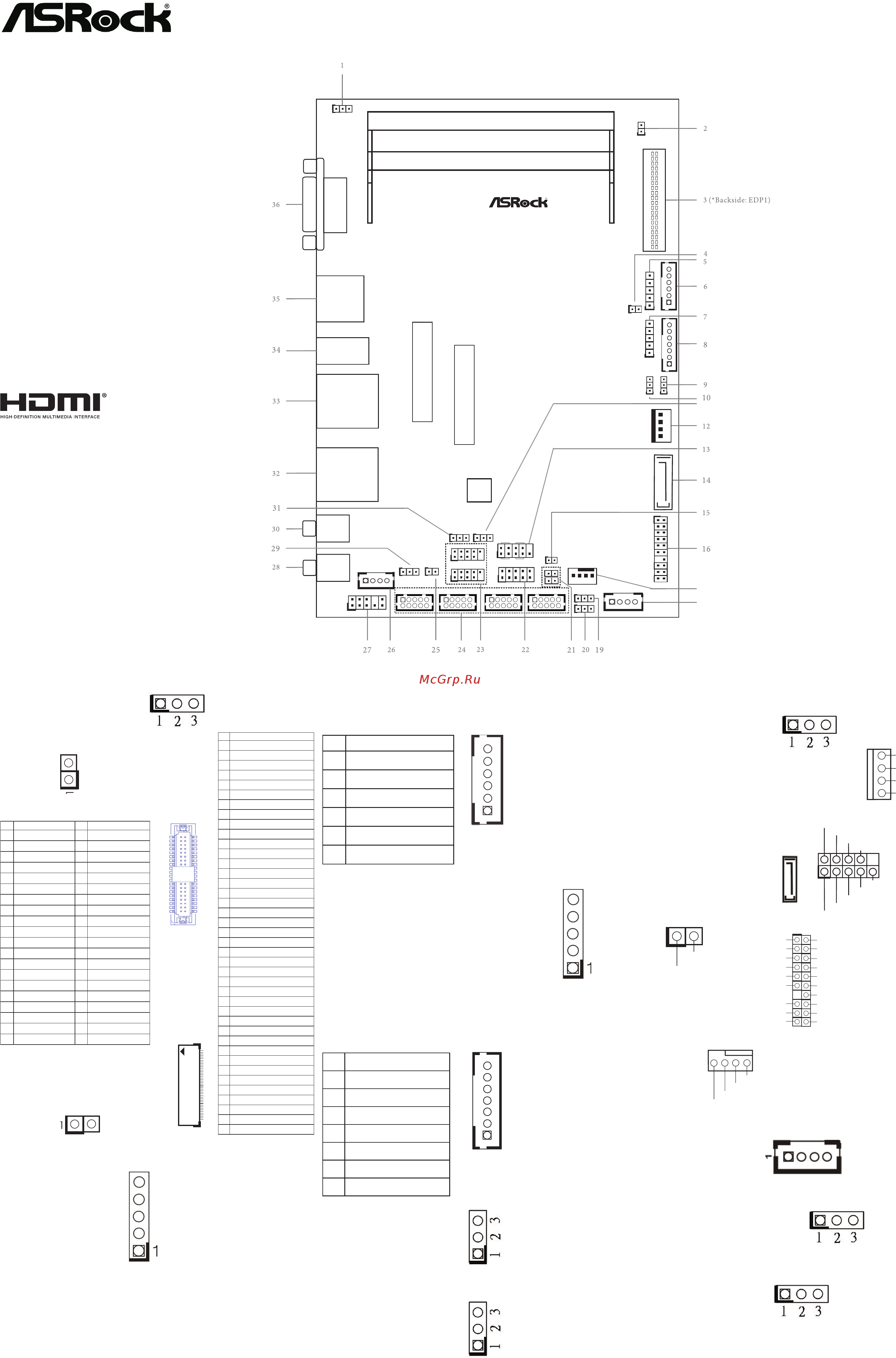

Jumpers and Headers Setting Guide
SBC-230-WT
SBC-230D
SBC-230L
SBC-E230
SBC-230J
The terms HDMI
®
and HDMI High-Denition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
BIOS
Chip
1
JGPIO1
mini-PCIe/min i - S ATA
1
LPC1
SPEAK ER1
1
LAN1
HDMI1
PANEL1
HDLED RESET
PLED PWRBT N
1
SATA_ PWR1
LVDS1
1
1
BLT_ VO L1
USB 3.0
T: USB3
B: USB2
COM1
COM2 COM3 COM4
PNL _PW R1
1
SATA3 _1
LAN2
1
DC_ IN 1
VGA1
Mic In
Line Out
mini-PCIe
BKT _PW R1
1
CLR MOS2
1
11
17
18
DDR3_A1 (Support DDR3L Only)
DDR3_B1 (Support DDR3L Only)
Indust ri al
SBC-230
1
BL2
BLT_ PW R1
1
1
BL1
1 1
EDP _LVD S_J 1
PWR _J P1
1
EDP _LVD S_J 2
1
HD_AU DI O1
FAN1
SET _CM1
1
MSATA_ SEL 1
1
JGP IO_ PWR1
1
1
USB 2_ 6_7
1
USB 2_ 4_5
CLR MOS1
1
JGP IO_ SET1
1
1
CI1
1
CI2
BUZ Z 1
1
PIN Signal Name
7 GND
6 GND
5 GPIO_BLT_DW
4 GPIO_BLT_UP
3 PWRDN
2 GPIO_VOL_DW
1 GPIO_VOL_UP
1
PIN Signal Name
6 LCD_BLT_VCC
5 LCD_BLT_VCC
4 CON_LBKLT_EN
3 CON_LBKLT_CTL
2 GND
1 GND
1
1
+5V
SPKR
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 NC 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
1
39
40
2
PIN Signal Name
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 NA
34 NA
33 CON_LBKLT_CTL
32 CON_LBKLT_EN
31 GND
30 GND
29 GND
28 GND
27 eDP_HPD_CON
26 GND
25 GND
24 GND
23 GND
22 NA
21 LCD_VCC
20 LCD_VCC
19 LCD_VCC
18 LCD_VCC
17 GND
16 eDP_AUX#_CON
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9 eDP_TX#1_CON
8 GND
7 eDP_TX2_CON
6 eDP_TX#2_CON
5 GND
4 eDP_TX3_CON
3 eDP_TX#3_CON
2 GND
1 NA
40
1
EDP1
+5V
+12V
1
GND
GND
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
1
GN D
GN D
S_ PWRDWN#
LA D2
SM B_CLK_MAIN
PC ICLK
PC IRST#
LA D3
+3 V
LA D0
GN D
FR AME
SM B_DATA_MAIN
LA D1
SE RIRQ #
GN D
+3 VSB
48 MHz
+5 V
P/ N: 15G06M051001AK V1.1
*15G06M051001AK*
