2.5 Jumpers Setup

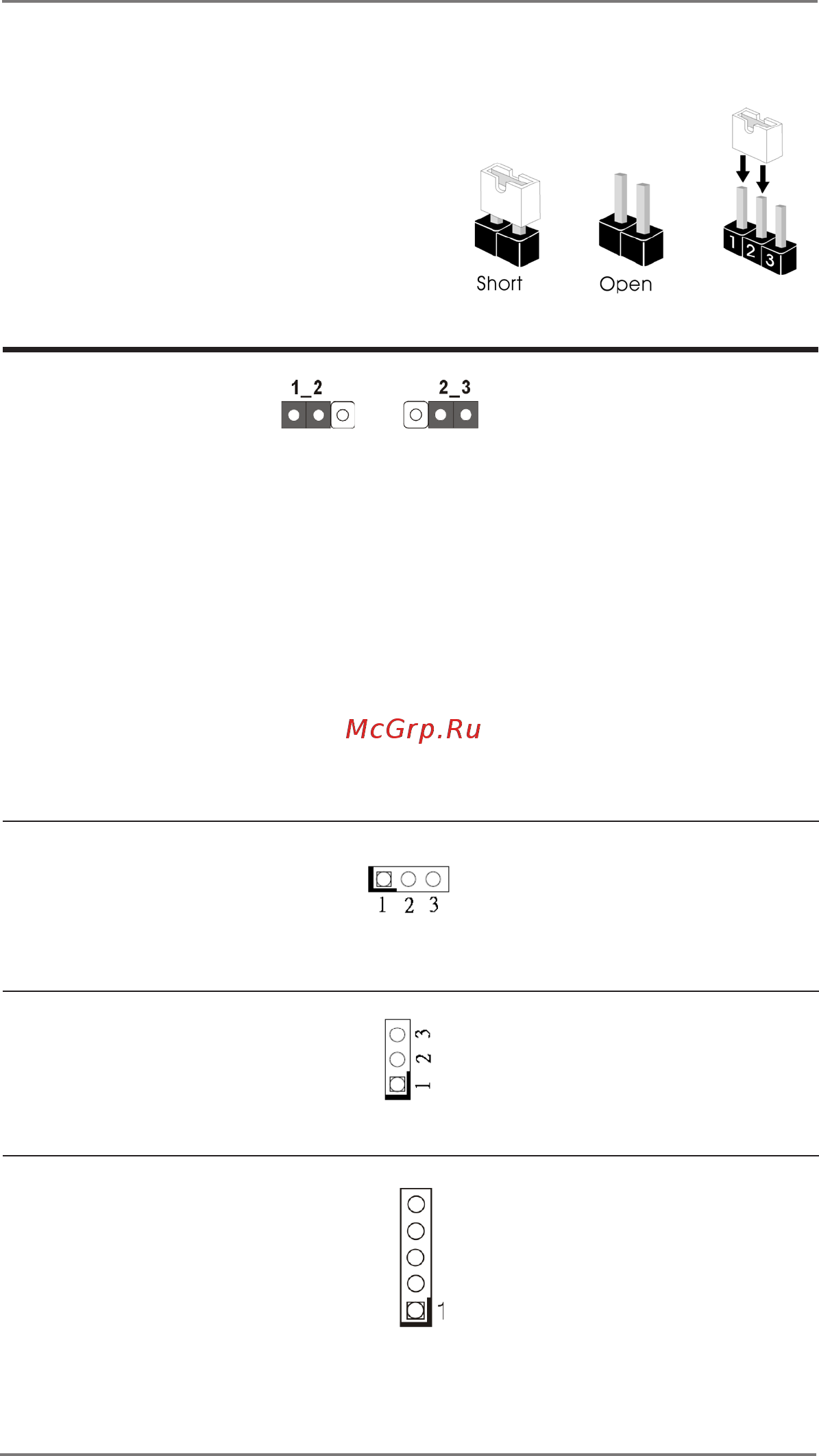

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Clear CMOS Jumper

(CLRCMOS1)

(see p.8, No. 1)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn o the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot up

the system rst, and then shut it down before you do the clear-CMOS action.

Please be noted that the password, date, time, user default prole and MAC

address will be cleared only if the CMOS battery is removed.

Clear CMOSDefault

Panel Power Select (LCD_VCC) Use this to set up the VDD

(5-pin PNL_PWR1)

power of the LVDS connector.

(see p.8 No. 11)

1-2: +3V

2-3: +5V

3-4: +5V

4-5: +12V

Digital Input/Output Power Select 1-2: +12V

(3-pin JGPIO_PWR1)

2-3: +5V

(see p.8 No. 26)

ATX/AT Mode Select

1-2: AT Mode

(3-pin PWR_JP1)

2-3: ATX Mode

(see p.8 No. 14)
