Jumpers and Headers Setting Guide
NUC-8365UE
NUC-8665UE
The terms HDMI
®
and HDMI High-Denition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
M2_2
AUDIO1
HDMI1
DC_IN1
M.2 SSD (M2_1)
DISPLAY1
S ATA3_1
DDR4_B1 (Support DDR4L Only)
DDR4_A1 (Support DDR4L Only)
SATA_PWR1
1
NUC-8365U
Industrial
LAN1
USB 3.1:
USB3_1
LAN2
USB 3.1:
USB3_2
BIOS
ROM
M2_SEL2
1
CLRMOS1
1
1
LPC1
RESE T HDLE D
PWRB TN PLE D
PANEL1
1
PWR_JP1
1
USB2_3_4
1
COM1
1
USB 3.1:
USB3_3
DP2
1 :

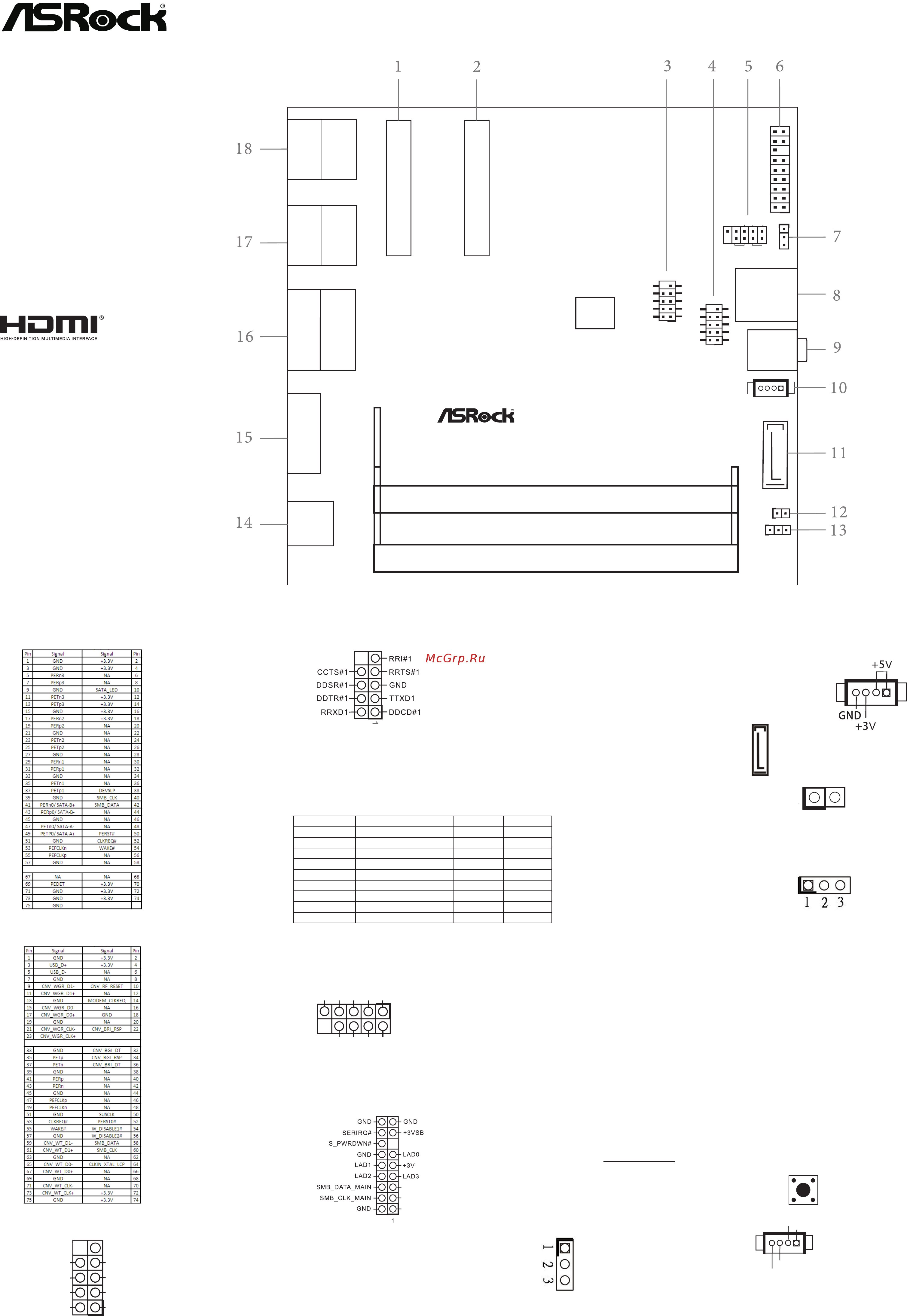

M.2 Key-M Socket (M2_1)
2 :
M.2 Key-E Socket (M2_2)
3 : USB2.0 Connector (USB2_3_4)
4 :
COM Port Header (RS232/422/485)
5 :
System Panel Header (PANEL1)
6 : LPC Debug Header (LPC1)
7 : ATX/AT Mode Jumper (PWR_JP1)
1-2 : AT Mode
2-3 : ATX Mode
8 : USB3.1 Port (USB3_3)
9 :
Audio Jack (AUDIO1)
10 :
SATA Power Output Connector
(SATA_PWR1)
11 : SATA3 Connector
(SATA3_1)
12 : M.2 Select (M2_SEL1)
Open : M.2
Short : SATA3_1
13 :
Clear CMOS Headers (CLRMOS1)
1-2 : Normal
2-3 : Clear CMOS
14 :
DC-In Jack (DC_IN1)
15 : DisplayPort (DISPLAY1)
16 : Top : DisplayPort (DP2)
Bottom : HDMI Port (HDMI1)
17 : Top : RJ-45 LAN Port (LAN2)
Bottom :
USB3.1 Port (USB3_2)
18 : Top : RJ-45 LAN Port (LAN1)
Bottom :
USB3.1 Port (USB3_1)
Back Side :
Power Button (PWR_BTN1)
Fan Connector (FAN1)
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
PCIRST#
FRAME
PCICLK
1
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR
USB_PWR
1
_
DUMMY
* This motherboard supports RS232/422/485 on COM1 port. Please
refer to below table for the pin denition. In addition, COM1 port
(RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Conguration. You may refer to our user manual for
details.
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data TX+ RTX+
3 TXD, Transmit Data RX+ N/A
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 N/A N/A N/A
COM1 Port Pin Denition
1
1
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND
