9

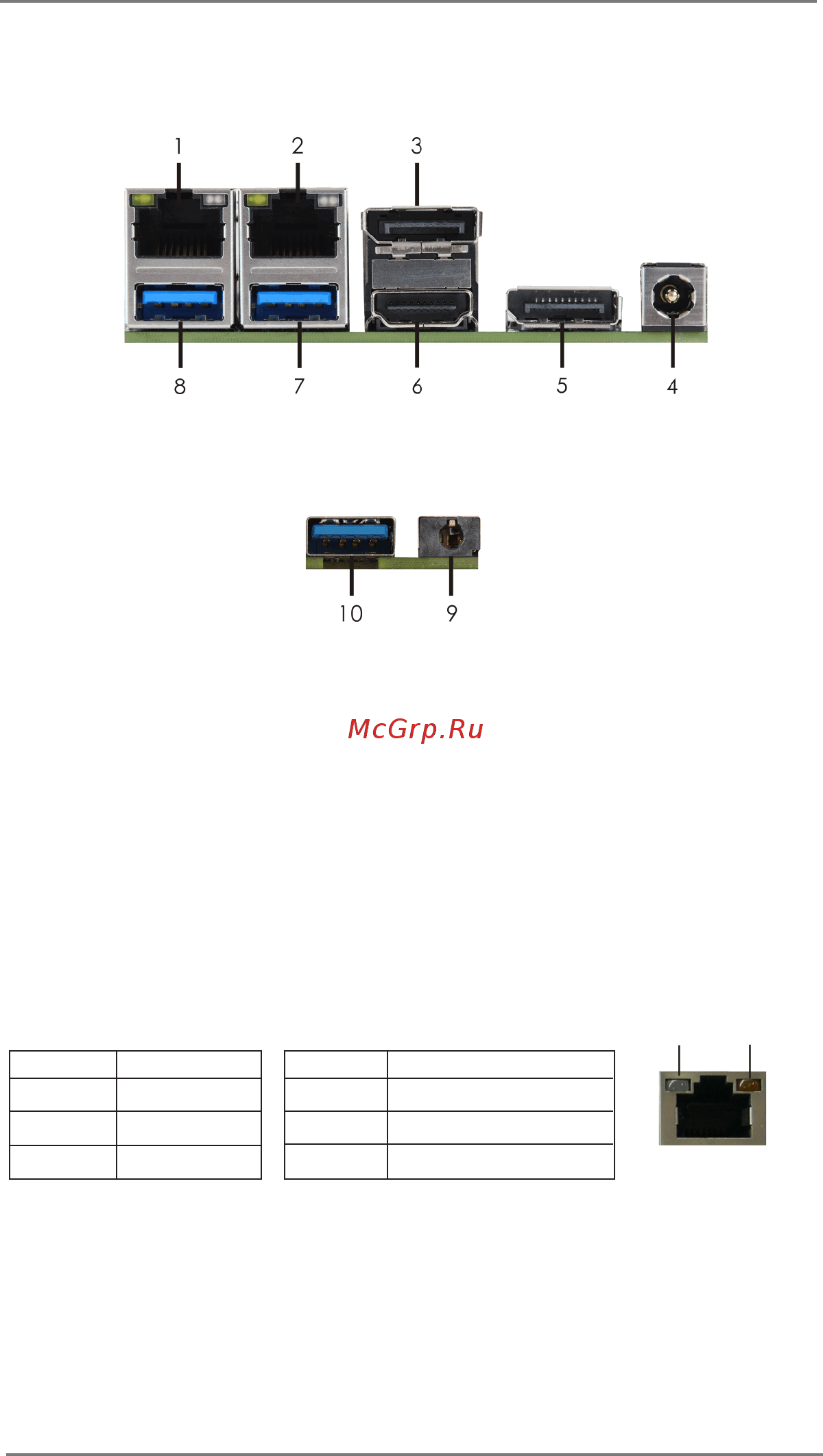

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 LAN RJ-45 Port (LAN1)*
2 LAN RJ-45 Port (LAN2)*
3 DisplayPort (DP2)
4 DC-In Jack (DC_IN1)
5 DisplayPort (DISPLAY1)
6 HDMI Port (HDMI1)
7 USB 3.1 Port (USB3_2)
8 USB 3.1 Port (USB3_1)
9 Audio Jack (AUDIO1)
10 USB 3.1 Port (USB3_3)
