PCIE-Riser-3S

Package Contents

•

2 x Screws (M3*4)

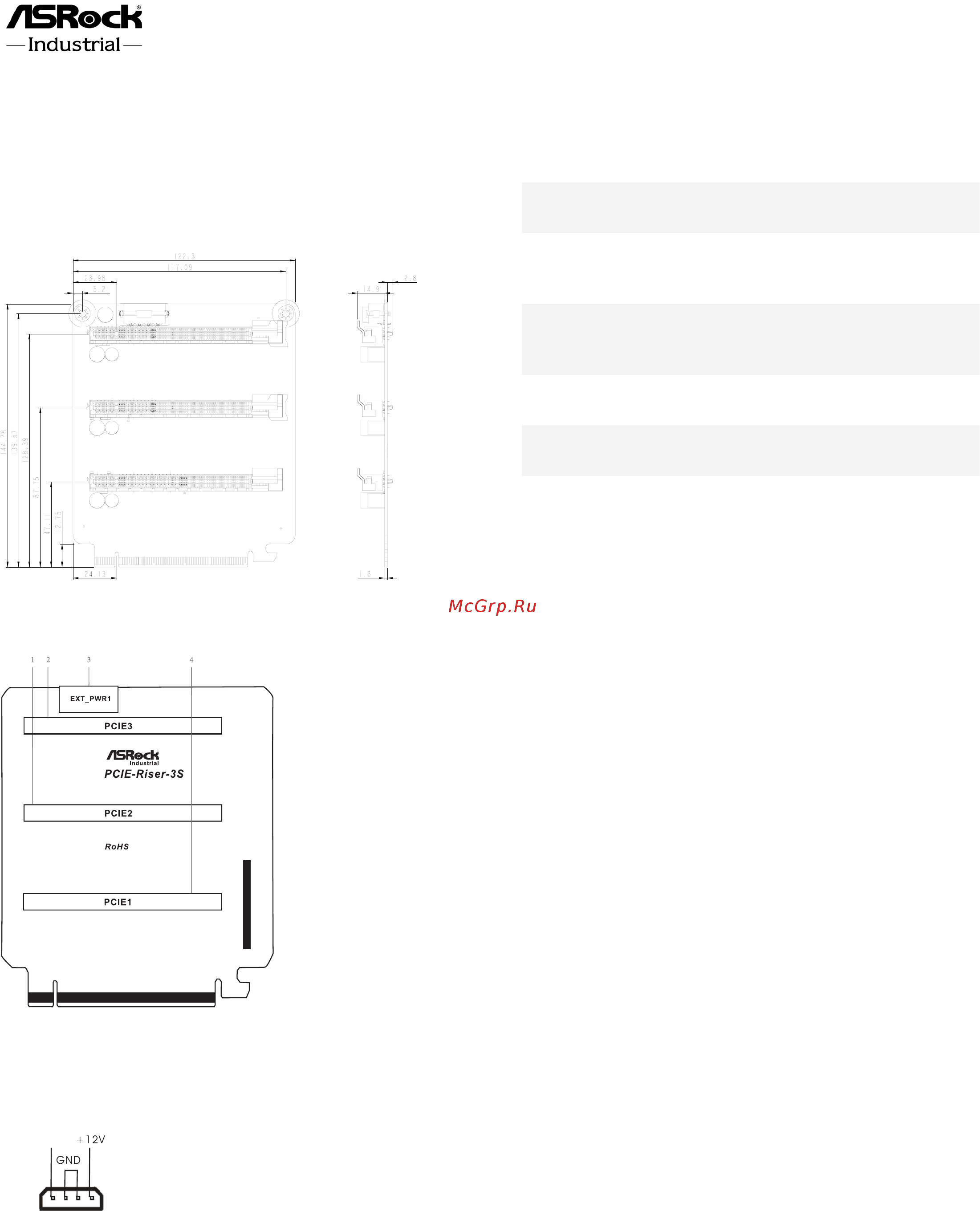

Mechanical Drawing

Card Layout

Jumpers/Headers Denition

1. PCI Express Slot (PCIE2)

2. PCI Express Slot (PCIE3)

3. 4-Pin PCIe Power Connector (EXT_PWR1)

4. PCI Express Slot (PCIE1)

Function

•

PCIe x16 to 1 PCIe x8 and 2 PCIe

x4 Expansion Slots

Form Factor

•

PCI Express x16

Input Interface/Power

•

PCI Express x16

•

Power Con 4 PIN +12V

Output Interface/Power

•

One PCI Express X8

•

Two PCI Express X4

Output Connector

•

ree PCI Express x16 Slots

Controller / Major ICs

•

N/A

Dimensions (W x L x H/

mm)

•

123 x 145 x 19.1

Specications
