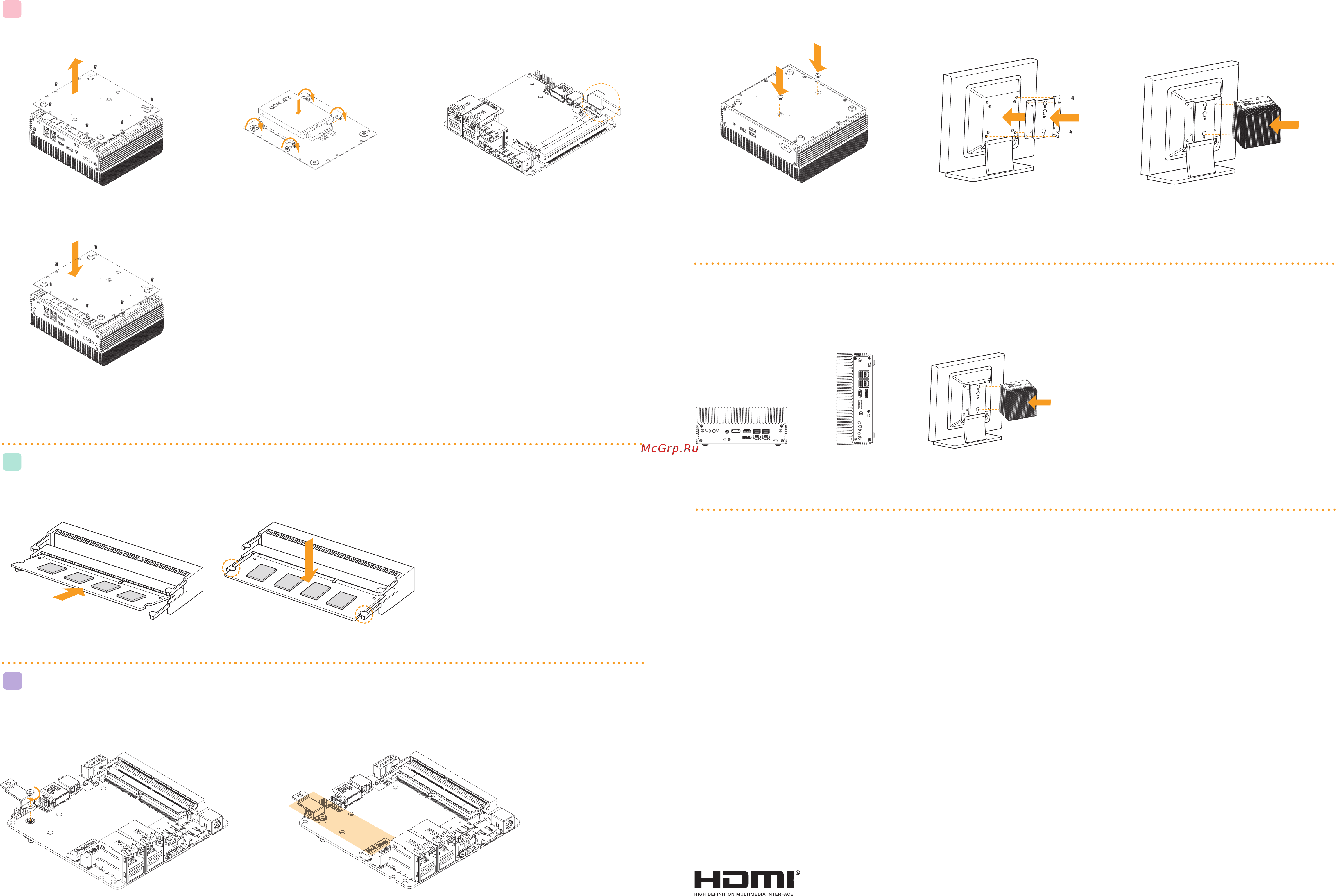

2.5-inch Hard Drive: How to Install the Hard Drive

SO-DIMM Slots: How to Install the Memory Modules

(DDR3 Low Voltage (1.35V))

How to Install the VESA Bracket

1. Remove the four screws on the bottom case.

en li up and remove the bottom panel.

2. Attach the HDD cage to the bottom panel

and secure it using the four screws. en

connect the SATA cable to the HDD.

3. Connect the SATA Data and Power Cable to

the motherboard.

4. en reinstall the bottom panel.

1. Carefully insert the SO-DIMM memory modules

into the slot at a 30-degree angle.

2. Push down until the modules snap into place.

1. Attach the two screws to the base of the

iBOX-315/316.

2. Attach the VESA Bracket to the rear of

a compatible display using the four screws.

*Choose mounting holes depending on the

mounting hole pattern of your LCD screen

(75 mm × 75 mm or 100 mm × 100 mm).

3. Mount the iBOX-Whiskey Lake/Ryzen by sliding it

into place.

Vertical Position Wall-mountedHorizontal Position

Positions of the iBOX-Whiskey Lake/Ryzen

Note:

- e iBOX-Whiskey Lake/Ryzen requires DDR3L

SO-DIMM (1.35V).

- For dual channel conguration, you always need to

install identical (the same brand, speed, size and

chip-type) DDR3L SO-DIMM pairs.

*Please note that keeping the iBOX-Whiskey Lake/Ryzen series in a vertical position will ensure better cooling performance.

*For iBOX-Whiskey Lake/Ryzen series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the iBOX-Whiskey Lake/Ryzen

in a vertical position to ensure better cooling performance.

e iBOX-Whiskey Lake/Ryzen can be placed in vertical or horizontal position.

如何安裝2280 M.2 SSD的托架 / How to Install the Bracket for a M.2 SSD (Type 2280) / How to Install the Bracket for a M.2 SSD (Type 2280) / How to Install the Bracket for a M.2 SSD (Type 2280) /

How to Install the Bracket for a M.2 SSD (Type 2280) / How to Install the Bracket for a M.2 SSD (Type 2280) / How to Install the Bracket for a M.2 SSD (Type 2280) / How to Install the Bracket

for a M.2 SSD (Type 2280)

Bracket Kits: How to Install the Bracket for a M.2 SSD (Type 2280)

1. Use the screw to secure the bracket to the motherboard.

2. en refer to the Section B to install a Type 2280 M.2 SSD.

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks

or registered trademarks of HDMI Licensing LLC in the United States and other countries.
