Daikin Europe N.V. Naamloze Vennootschap · Zandvoordestraat 300 · 8400 Oostende · Belgium · www.daikin.eu · BE 0412 120 336 · RPR Oostende (Responsible Editor)Daikin Europe N.V. Naamloze Vennootschap · Zandvoordestraat 300 · 8400 Oostende · Belgium · www.daikin.eu · BE 0412 120 336 · RPR Oostende (Responsible Editor)Daikin Europe N.V. Naamloze Vennootschap · Zandvoordestraat 300 · 8400 Oostende · Belgium · www.daikin.eu · BE 0412 120 336 · RPR Oostende (Responsible Editor)

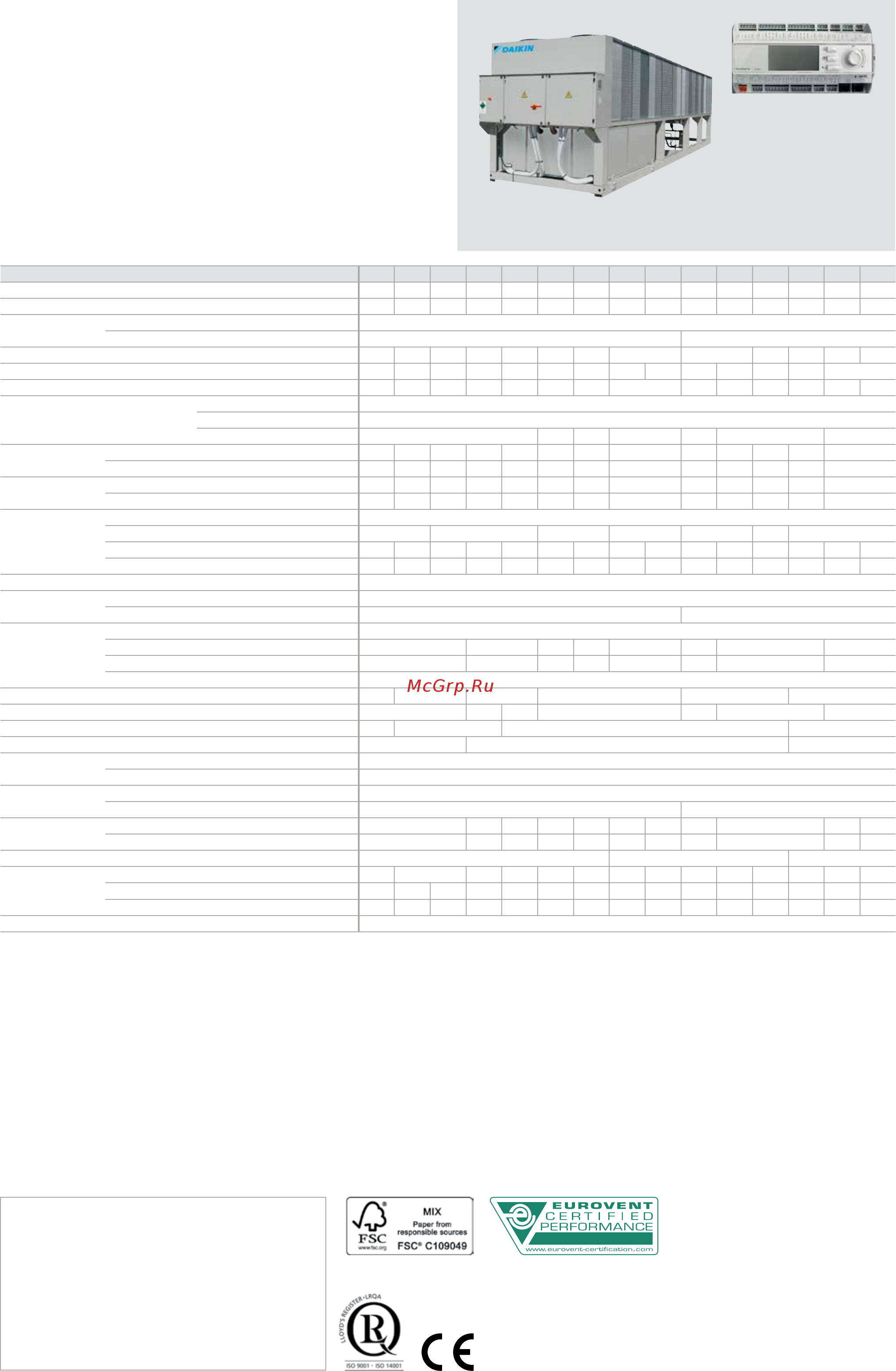

Cooling only EWAD-C-SS/SL 650 740 830 910 970 C11 C12 C13 H14 C15 C16 C17 C18 C19 C20
Cooling capacity Nom. kW 645 741 829 908 962 1,059 1,146 1,315 1,412 1,532 1,615 1,706 1,797 1,870 1,917
Power input Cooling Nom. kW 223 265 302 322 355 382 408 446 479 557 586 627 669 687 721
Capacity control Method Stepless
Minimum capacity % 12.5 7.0
EER 2.89 2.80 2.74 2.82 2.71 2.77 2.81 2.95 2.75 2.72 2.69 2.72 2.66
ESEER 3.79 3.69 3.72 3.65 3.60 3.69 3.63 3.88 3.86 3.73 3.68 3.59 3.71 3.68
IPLV 4.32 4.17 4.18 4.25 4.16 4.17 4.21 4.42 4.28 4.18 4.15 4.24 4.19 4.21
Dimensions Unit Height mm 2,540
Width mm 2,285
Depth mm 6,285 7,185 8,085 8,985 10,285 11,185 12,085
Weight (SS) Unit kg 5,330 5,740 5,760 6,280 6,560 7,010 7,2 80 7,90 0 10,320 10,710 10,770 11,240 11,600
Operation weight kg 5,610 5,990 6,010 6,530 6,810 7, 2 50 7,5 20 8,280 10,730 11,110 11,260 12,110 12,480
Weight (SL) Unit kg 5,920 6,030 6,050 6,570 6,850 7,30 0 7,570 8,190 10,770 11,150 11,210 11,680 12,040
Operation weight kg 6,200 6,280 6,300 6,820 7,100 7,5 40 7,810 8,570 11,170 11,550 11,700 12,560 12,920
Water heat
exchanger
Type Single pass shell & tube
Water volume l 266 251 243 386 408 474 850
Water ow rate Cooling Nom. l/s 30.9 35.5 39.7 43.5 46.1 50.8 55.0 62.9 67.6 73.4 7 7.4 81.8 86.0 89.5 91.7
Water pressure drop
Cooling Nom. kPa 47 54 53 62 69 64 74 54 58 62 68 75 36 39 40
Air heat exchanger Type High eciency n and tube type with integral subcooler
Compressor Type Asymmetric single screw compressor
Quantity 2 3
Fan Type Direct propeller
Quantity 10 12 14 16 18 20 22 24
Air ow rate Nom. l/s 53,442 64,131 74,819
85,508
96,196
106,885
11 7,5 73 128,262
Speed rpm 900
Sound power level (SS)
Cooling Nom. dBA 102 100 101 102 103 104
Sound power level (SL)
Cooling Nom. dBA 96 98 97 98 99 100 101
Sound pressure level (SS)
Cooling Nom. dBA 81 80 81 82
Sound pressure level (SL)
Cooling Nom. dBA 76 77 78
Operation range Water side Cooling
Min.~Max.
°CDB -8~15
Air side Cooling
Min.~Max.
°CDB -18~46
Refrigerant Type / GWP R-134a / 1,430
Circuits Quantity 2 3
Refrigerant charge Per circuit kg 64.0 76.5 80.0 91.0 94.0 110.0 130.0 73.3 86.7 91.7 101.7
Per circuit TCO
2
Eq 91.5 109.4 114.4 130.1 134.4 157. 3 185.9 104.9 123.9 131.1 145.4
Piping connections Evaporator water inlet/outlet (OD) 168.3mm 219.1mm 273mm
Unit Maximum starting current A 604 649 915 962 1,017 1,021 1,068 1,081 1,312 1,363 1,367 1,410 1,456 1,470
Nominal running current (RLA)
Cooling A 366 432 492 524 577 624 667 726 773 909 959.0 1,023 1,092 1,116 1,164
Maximum running current A 476 545 589 656 715
787 859 921 974 1,144 1,217 1,281 1,334 1,395 1,449
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
() Cooling: entering evaporator water temp. °C; leaving evaporator water temp. °C; ambient air temp. °C; full load operation.
Equipment contains uorinated greenhouse gases. Actual refrigerant charge depends on the nal unit construction, details can be found on the unit labels.
EWAD-C-SS/SL
MicroTech III
03/15ECPEN15428_1
Daikin Europe N.V. participates in the Eurovent Certification
programme for Liquid Chilling Packages (LCP), Air handling
units (AHU), Fan coil units (FCU) and variable refrigerant flow
systems (VRF) Check ongoing validity of certificate online:
www.eurovent-certification.com or using: www.certiflash.com
The present leaflet is drawn up by way of information only and does not constitute an offer binding upon Daikin
Europe N.V.. Daikin Europe N.V. has compiled the content of this leaflet to the best of its knowledge. No express or
implied warranty is given for the completeness, accuracy, reliability or fitness for particular purpose of its content
and the products and services presented therein. Specifications are subject to change without prior notice. Daikin
Europe N.V. explicitly rejects any liability for any direct or indirect damage, in the broadest sense, arising from or
related to the use and/or interpretation of this leaflet. All content is copyrighted by Daikin Europe N.V.
EWAD-C-SS/SL
