General Outline ESIE10-01
1–88 Part 1 – System Outline
3
11
4
5
When two or more machines are positioned side by side, a space of at least 3,600 mm is
recommended between the condensation banks. For further solutions, please consult authorised
technicians. In any case, the microprocessor will allow the machine to adapt to the new condition,
producing maximum capacity available even at side distances of less that the recommended
clearance space.
1800
1800

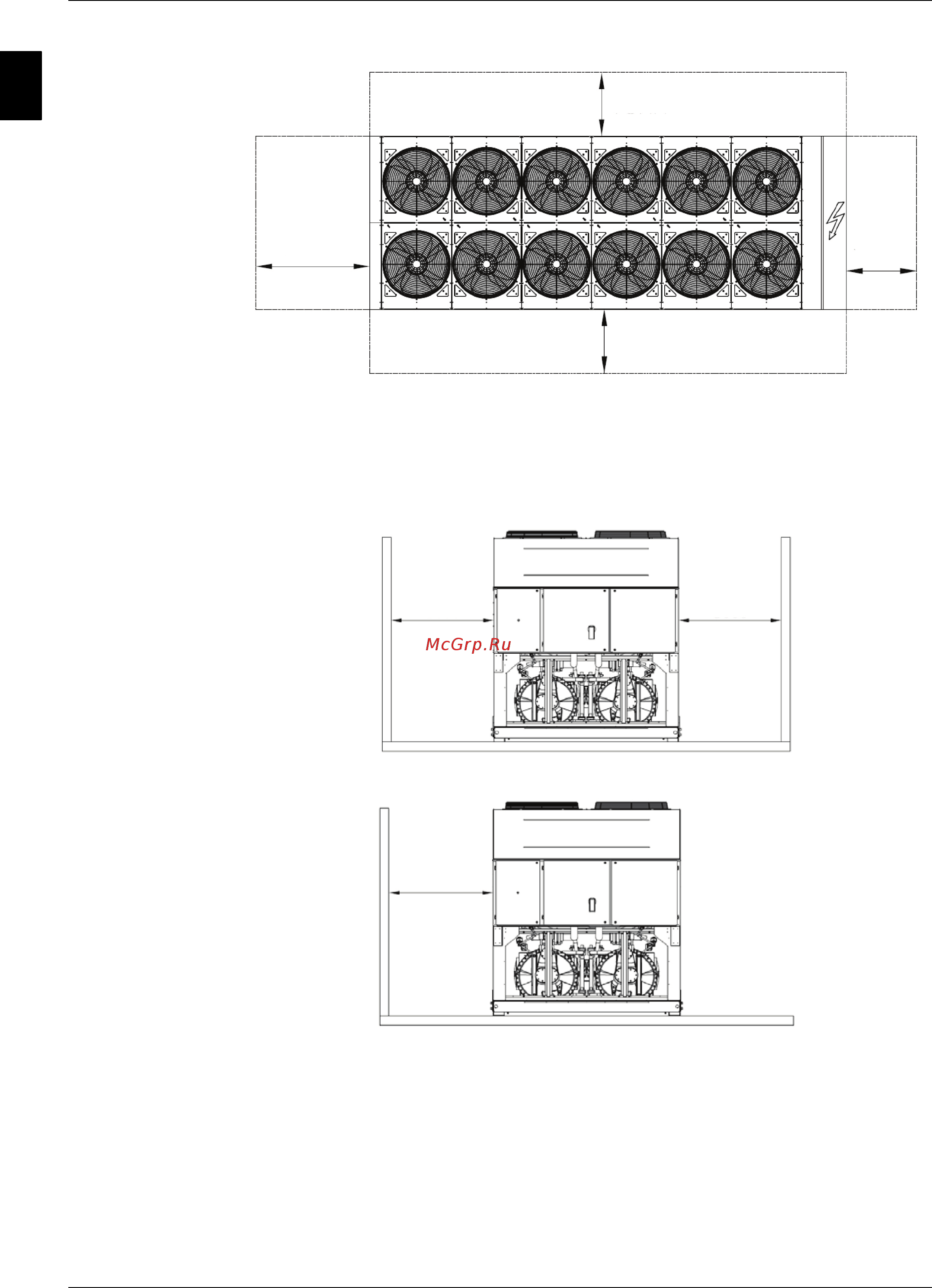

Clearance requirements for machine maintenance
1500
2000
3000 3000
3000
Minimum installation clearance of the individual machine
