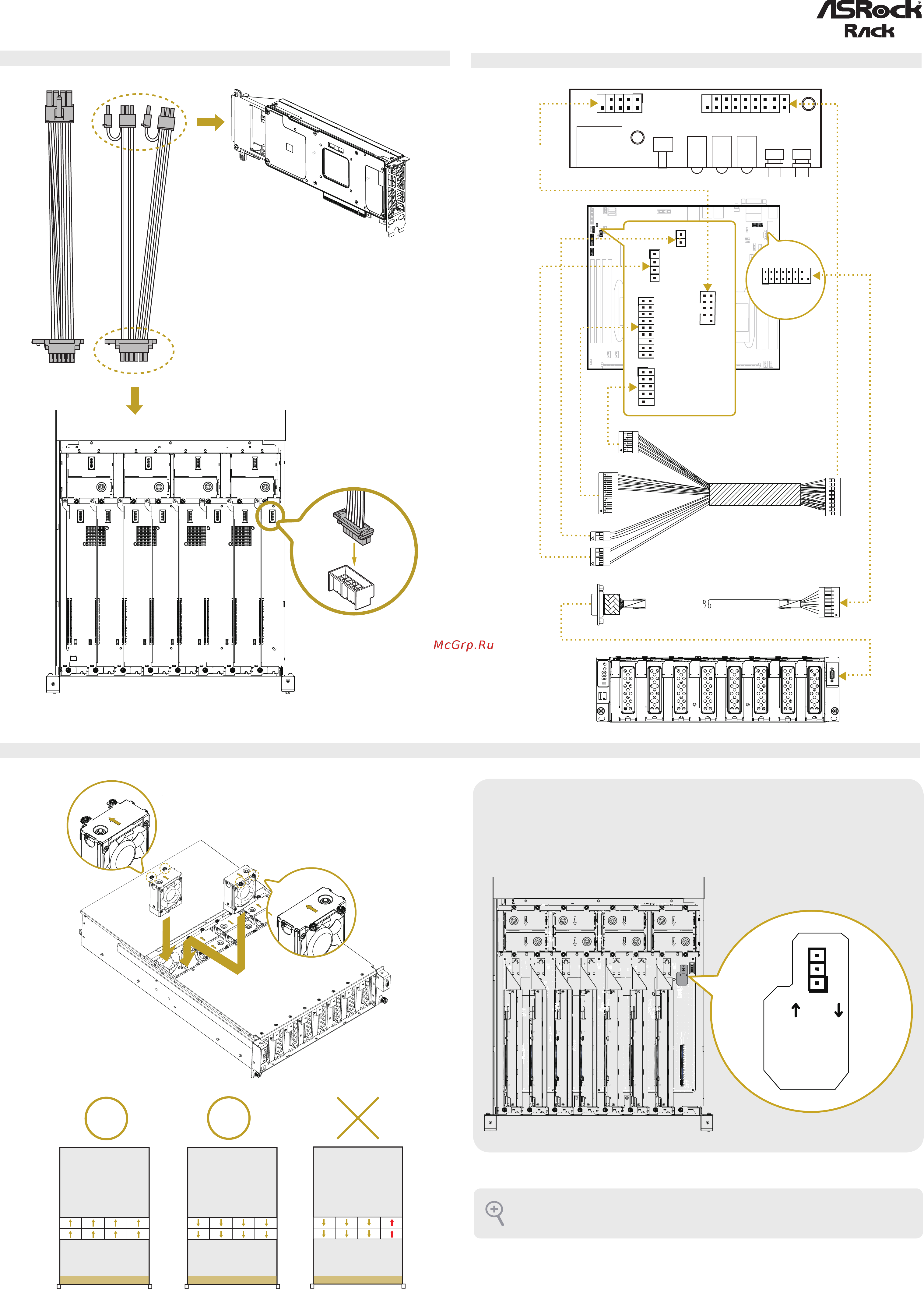

3U8G+ Series
Quick Installation Guide
GPGPU Power Cables Connection
Front Panel Cables / VGA Cable Connection
Front Panel Cable
1
1
AUX1USB1
EP2C612D16FM2
VGA Cable
PANEL1
AUX_PANEL1
FRONT_LAN_LED34
USB Cable
NMI_BTN1
1
1
1
1
Front Panel Board (FPB)
USB_3_4
1
FRNT_VGA1
Front Side
GPGPU Power Cable
OR
System Fan Installation
Please refer to the User’s Manual for more instructions on how to reverse fan modules and set up
back-to-front air  ow routing.
For active GPU/MIC cards
Back-to-front air flow
FRONT FRONT
For passive GPU/MIC cards
Front-to-back air flow
FRONT
For active card users, please reverse the fan modules and move the jumper caps placed on
the FAN Flow Switch Jumper (FAN_FLOW_SW1) from pins 1-2 (default) to pins 2-3 on the
switchboard (SWB)
FAN_FLOW_SW1
Jumper Pin1 - 2:
For Passive Card,
Fan Air Flow
Jumper Pin2 - 3:
For Active Card,
Fan Air Flow
1
1
FAN_FLOW_SW1
Jumper Pin1 - 2:
For Passive Card,
Fan Air Flow
Jumper Pin2 - 3:
For Active Card,
Fan Air Flow
