Daikin R08019037793 [7/9] Installation of lcd remote controller

ENGLISH

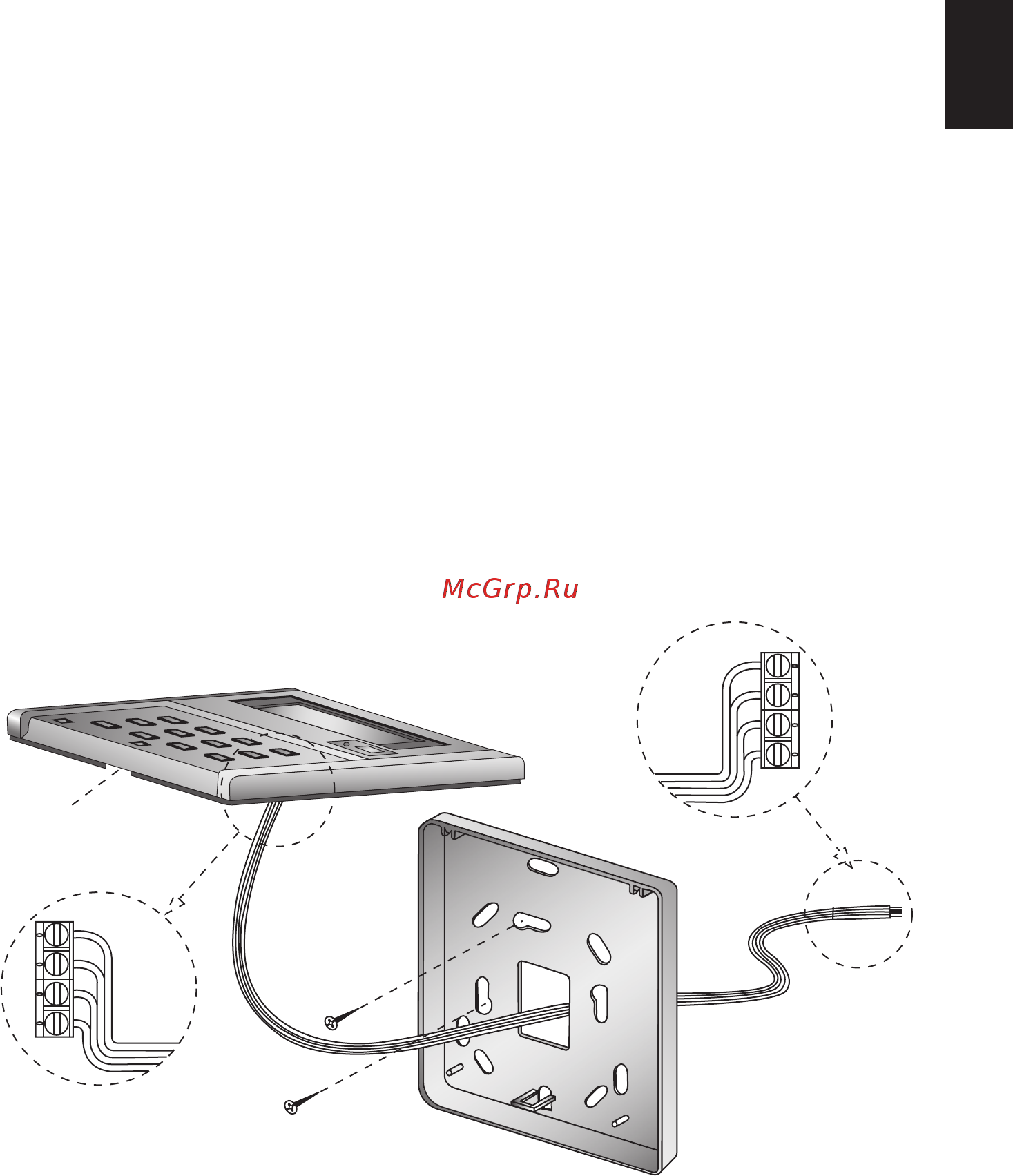

Lower slot for

opening LCD casing

Connection behind

top case

LCD Remote

(Bottom case)

Connection

wires

LCD Remote

(Top case)

2 x Wooden

screw

Connection at

main board

GND

+5V

GND

+5V

4. Installation Of LCD Remote Controller

4.1 Accessories

The following accessories are included together with this manual. If any part is

missing, contact your dealer immediately.

1 Remote controller

2 Wooden screw 4.1 x 16 (2 pieces)

3 Instruction manual

4.2 Step-by-step Guide

i) First, open up the casing of the LCD remote controller into its top and bottom

case using a screwdriver. To do this, insert the screwdriver into the lower slot

and slide it in the outward direction.

ii) Fix the bottom case onto the wall with the 2 wooden screws provided. Then,

insert the 4 connecting wires (from the main board) through the slot on the lower

center of the case as shown below.

iii) Connect one end in each of the 4 wires to the terminal block behind the top case

as illustrated. The wire that goes into the “GND” terminal at the top case must be

connected at the other end to the “GND” terminal at the main board. The same

goes for the “+5V”, “B” and “A” connection.

iv) Fasten back the top and bottom case into place. Hook the two upper claws into

their respective slots and snap the lower part shut.
