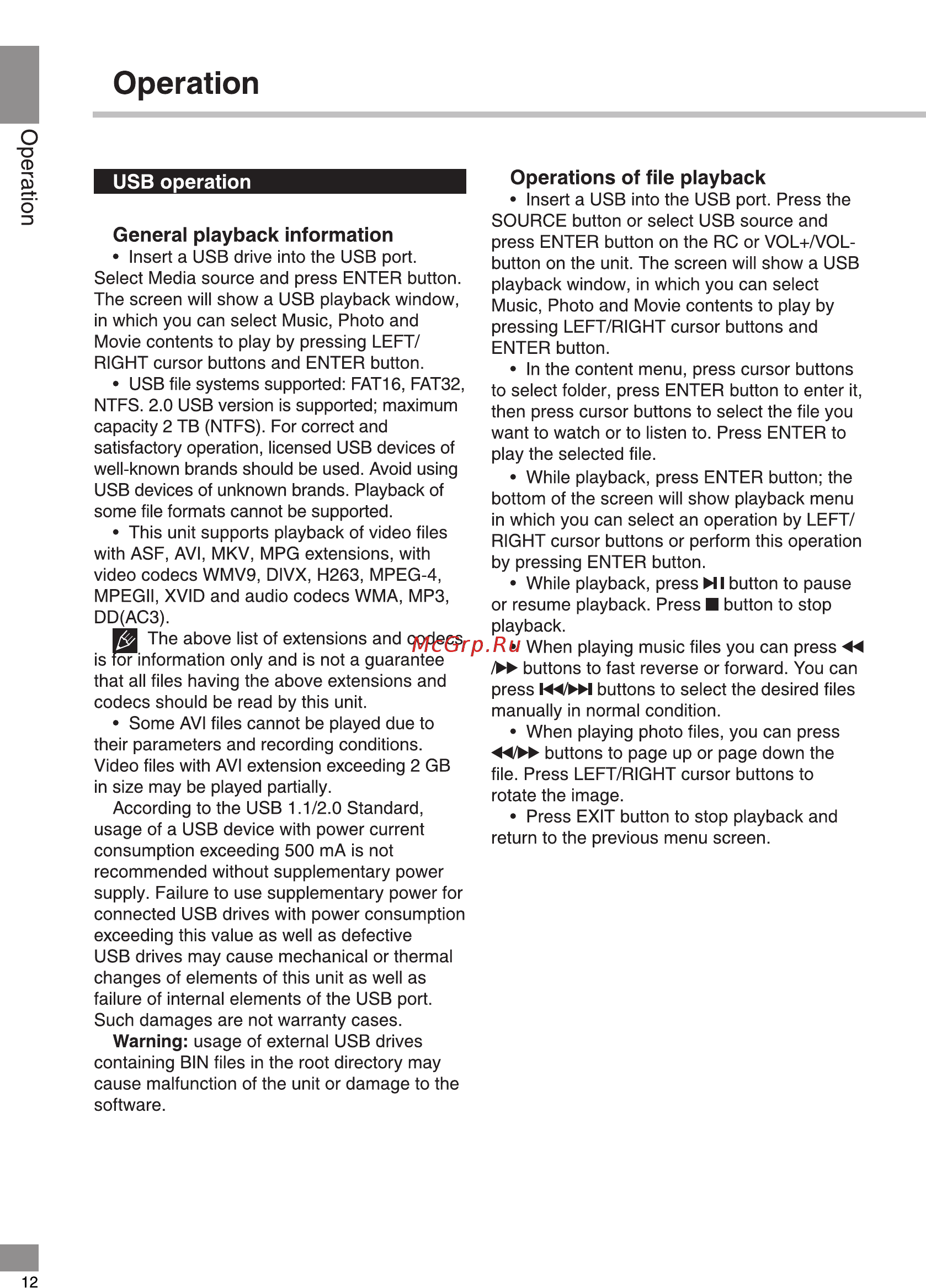

Telefunken TF-LED32S72T2S [12/38] Operation

Содержание

Похожие устройства

Operation Operation USB operation General playback information Insert a USB drive into the USB port Select Media source and press ENTER button The screen will show a USB playback window in which you can select Music Photo and Movie contents to play by pressing LEFT RIGHT cursor buttons and ENTER button USB file systems supported FAT16 FAT32 NTFS 2 0 USB version is supported maximum capacity 2 TB NTFS For correct and satisfactory operation licensed USB devices of well known brands should be used Avoid using USB devices of unknown brands Playback of some file formats cannot be supported This unit supports playback of video files with ASF AVI MKV MPG extensions with video codecs WMV9 DIVX H263 MPEG 4 MPEGII XVID and audio codecs WMA MP3 DD AC3 fl The above list of extensions and codecs is for information only and is not a guarantee that all files having the above extensions and codecs should be read by this unit Some AVI files cannot be played due to their parameters and recording conditions Video files with AVI extension exceeding 2 GB in size may be played partially According to the USB 1 1 2 0 Standard usage of a USB device with power current consumption exceeding 500 mA is not recommended without supplementary power supply Failure to use supplementary power for connected USB drives with power consumption exceeding this value as well as defective USB drives may cause mechanical or thermal changes of elements of this unit as well as failure of internal elements of the USB port Such damages are not warranty cases Warning usage of external USB drives containing BIN files in the root directory may cause malfunction of the unit or damage to the software 12 Operations of file playback Insert a USB into the USB port Press the SOURCE button or select USB source and press ENTER button on the RC or VOL VOLbutton on the unit The screen will show a USB playback window in which you can select Music Photo and Movie contents to play by pressing LEFT RIGHT cursor buttons and ENTER button In the content menu press cursor buttons to select folder press ENTER button to enter it then press cursor buttons to select the file you want to watch or to listen to Press ENTER to play the selected file While playback press ENTER button the bottom of the screen will show playback menu in which you can select an operation by LEFT RIGHT cursor buttons or perform this operation by pressing ENTER button While playback press Ml button to pause or resume playback Press button to stop playback When playing music files you can press buttons to fast reverse or forward You can press KOH buttons to select the desired files manually in normal condition When playing photo files you can press buttons to page up or page down the file Press LEFT RIGHT cursor buttons to rotate the image Press EXIT button to stop playback and return to the previous menu screen
