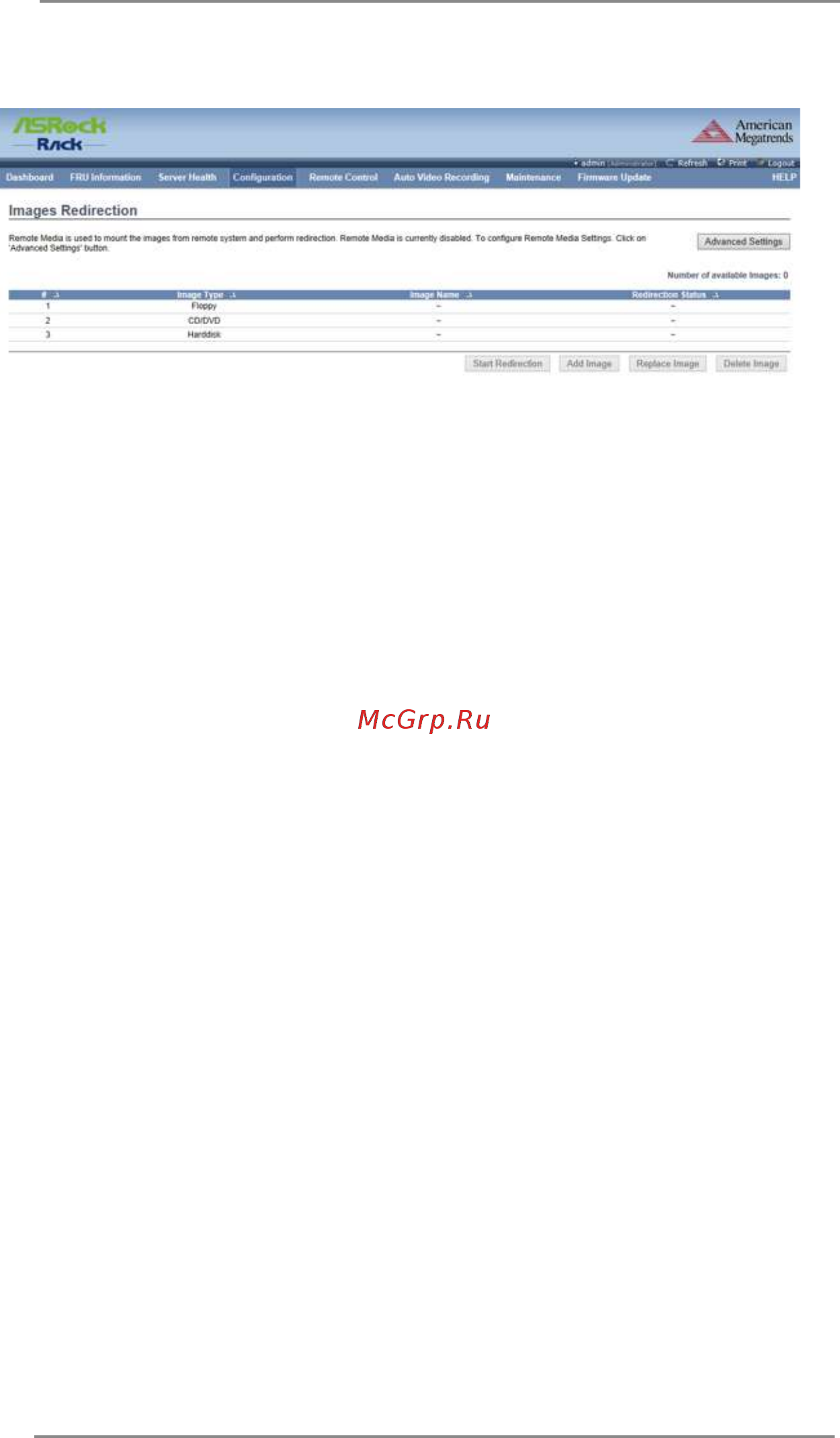

2.5.4 Images Redirection

The displayed table shows congured images on BMC. You can add or

replace the images from here to the remote media. Only one image can

be configured for each image type. To configure the image, You need

to enable Remote Media support using ‘Advanced Settings’. To add or

replace an image, you must have Administrator Privileges.

NOTE: Free slots are denoted by “~”.

Start/Stop Redirection

Select a configured slot and click ‘Start Redirection’ to start the remote

media redirection. It is a toggle button, if the image is successfully

redirected, then click the ‘Stop Redirection’ button to stop the remote

media redirection.

Add Image

Select a free slot and click ‘Add Image’ to congure a new image to the

device. Alternatively, double click on a free slot to add an image.

Replace Image

Select a congured slot and click ‘Replace Image’ to replace the existing

image. Alternatively, double click on the congured slot.

Delete Image

Select the desired image to be deleted and click ‘Delete Image’.

NOTE: Redirection needs to be stopped to replace or delete the image.
