EPYC3451D4I2-2T / EPYC3351D4I2-2T
8 9
English

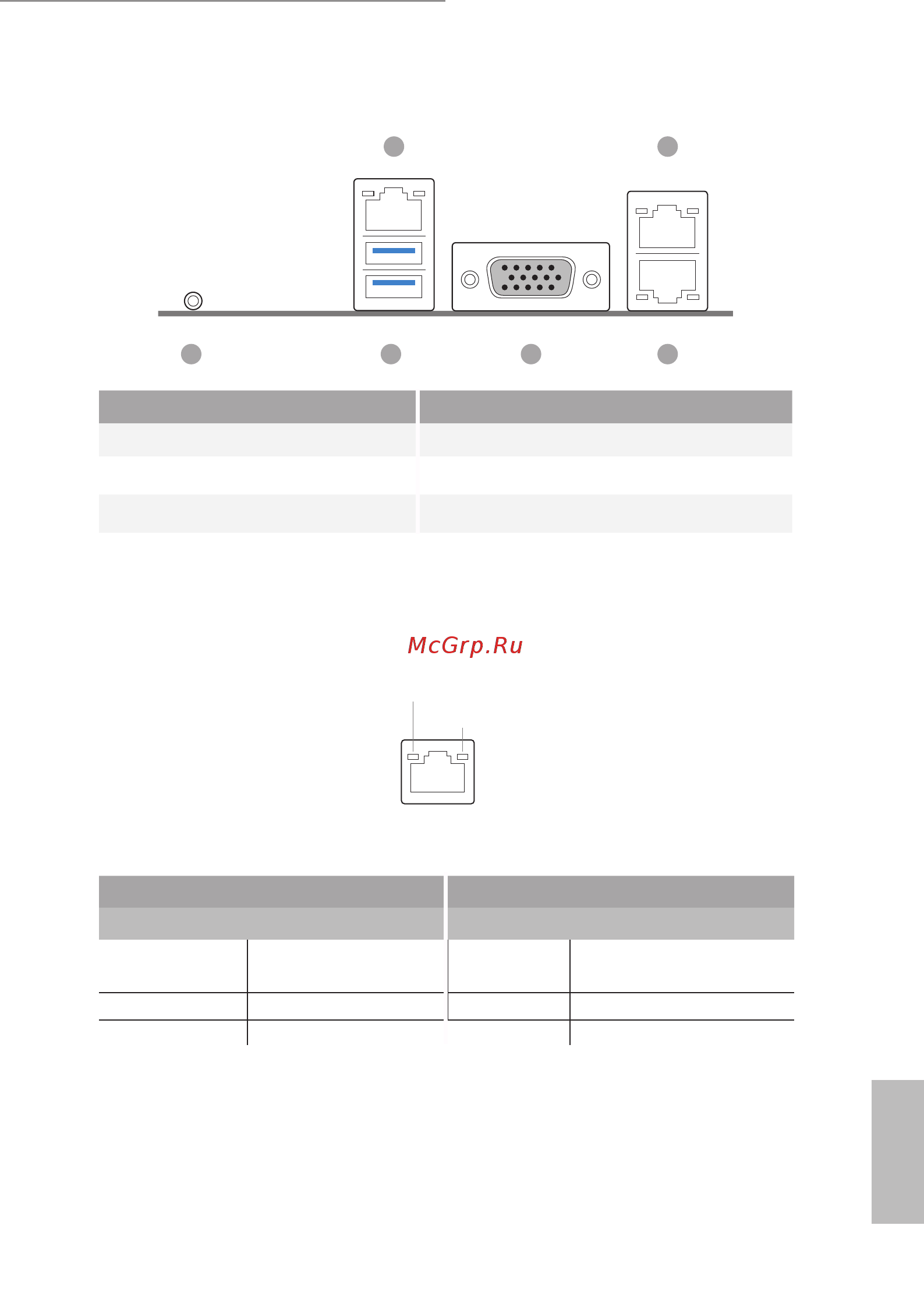

1.6 I/O Panel
4
2
1
5
3
6
No. Description No. Description
1 UID Switch/LED (UID1) 4 VGA Port (VGA1)
2 USB 3.1 Gen1 Ports (USB3_1_2) 5 10G LAN RJ-45 Port (LAN1)**
3 Dedicated IPMI LAN Port* 6 10G LAN RJ-45 Port (LAN2)**
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port
