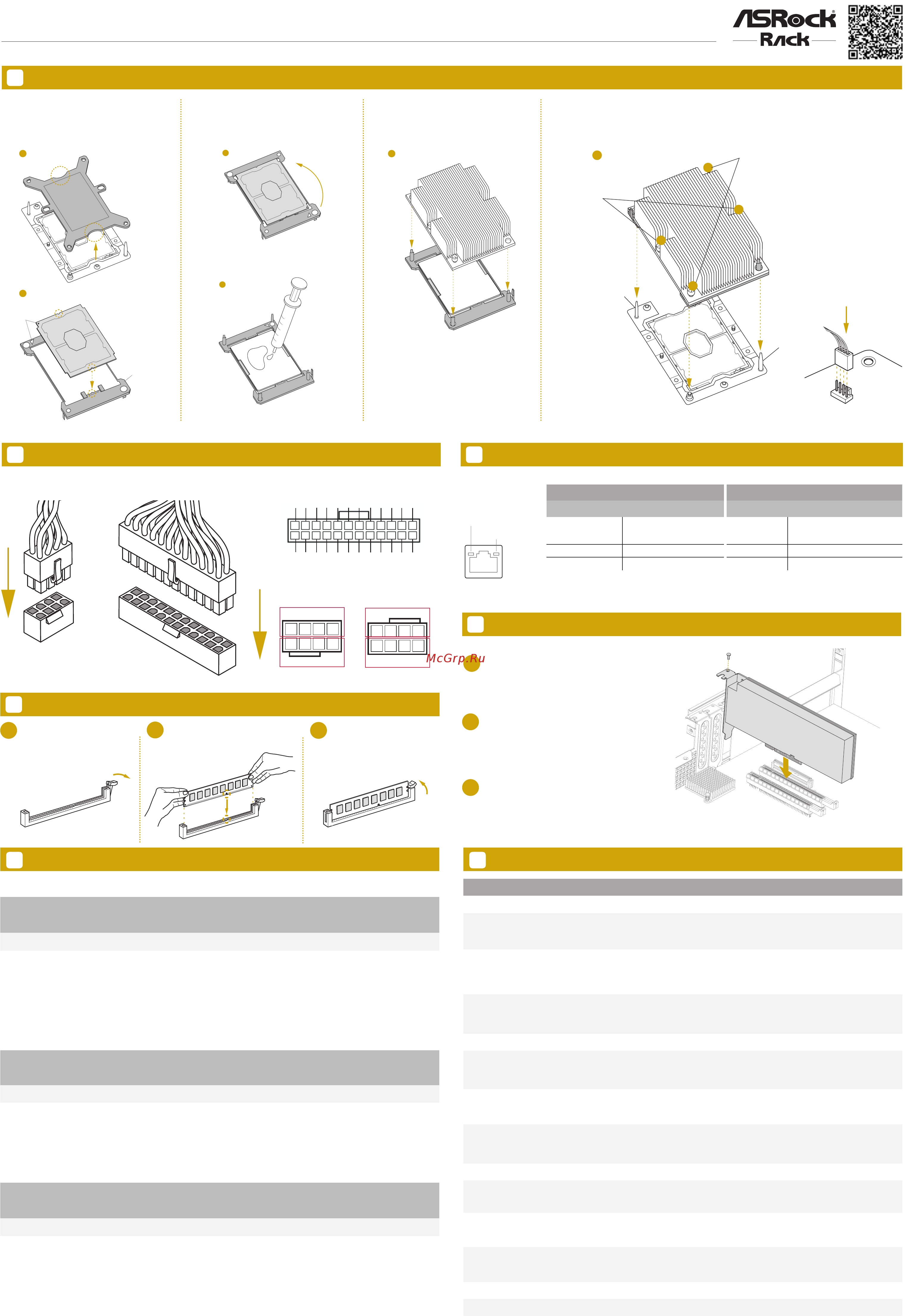

EP2C6212D16NM
Quick Installation Guide
www.asrockrack.com
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
8 LAN Port LED Indications
6
7
Remove the CPU socket cover. Align and
install the processor on the carrier.
Carefully ip the carrier assembly. Apply
a thermal paste .
en install the heatsink to the carrier
assembly and make sure the arrow is
located in the correct direction.
CPU_
FAN
Install the heatsink. Tighten the screws in a sequential order (6-1>6-2>6-3>6-4). When
dissembling the heatsink, loosen the screws in reverse order (6-4>6-3>6-2>6-1). Connect
the CPU fan to the CPU FAN connector.
Install the Power Cables
10
Install the PCIE Card
1
Remove the bracket facing the slot that
you intend to use. Keep the screw for
later use.
2
Align the card connector with t he
slot and press firmly until the card is
completely seated on the slot.
Fasten the card to the chassis with the
screw.
3
IPMI LAN Port
ACT/LINK LED
SPEED LED
LAN Port
Install the Processor and Heatsink
Dr. Debug
11
1
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
12
24 13
4
8
1
5
+12V2
GND
4
8
1
5
+12V2
GND
We recommend using the CPU Installation tool to avoid CPU pin-bent problem.
1
2
PIN1
CPU Carrier
3
4
180
o
5
6
Tighten the two
Middle Nuts to
12 IN.LB.
Two turns at a time.
Tighten the two
Corner Plunger
to 12 IN.LB.
Tw
o turns at a time.
6-1
6-2
6-3
6-4
Guide Pin
Guide Pin
*Images shown are for illustrative purposes only and may dier depending on model.
9
Install the Memory
1
2
3
Unlock a DIMM slot by
pressing the module clip
outward.
Insert the memory module. Lock the clip.
Recommended Memory Congurations
Code Description
00 Please check if the CPU is installed correctly and then clear CMOS.
0d
Problem related to memory, VGA card or other devices. Please clear CMOS, re-install the memo-
ry and VGA card, and remove other USB, PCI devices.
01 - 54
(except 0d),
5A- 60
Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the
problem still exists, please install only one memory module or try using other memory modules.
55
e Memory could not be detected. Please re-install the memory and CPU. If the problem still
exists, please install only one memory module or try using other memory modules.
61 - 91 Chipset initialization error. Please press reset or clear CMOS.
92 - 99
Problem related to PCI-E devices. Please re-install PCI-E devices or try installing them in other
slots. If the problem still exists, please remove all PCI-E devices or try using another VGA card.
A0 - A7
Problem related to IDE or SATA devices. Please re-install IDE and SATA devices. If the problem
still exists, please clear CMOS and try removing all SATA devices.
b0
Problem related to memory. Please re-install the CPU and memory. If the problem still exists,
please install only one memory module or try using other memory modules.
b4 Problem related to USB devices. Please try removing all USB devices.
b7
Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the
problem still exists, please install only one memory module or try using other memory modules.
d6
e VGA could not be recognized. Please clear CMOS and try re-installing the VGA card. If the
problem still exists, please try installing the VGA card in other slots or use other VGA cards.
d7
e Keyboard and mouse could not be recognized. Please try re-installing the keyboard and
mouse.
d8 Invalid Password.
FF Please check if the CPU is installed correctly and then clear CMOS.
12
Dr. Debug
1 CPU Conguration
CPU1
A1 A2 B1 C1 D1 D2 E1 F1
1 DIMM
#
2 DIMMS
# #
4 DIMMS
# # # #
6 DIMMS
# # # # # #
8 DIMMS
# # # # # # # #
2 CPU Conguration
CPU1
A1 A2 B1 C1 D1 D2 E1 F1
1 DIMM
#
2 DIMMS
#
4 DIMMS
# #
8 DIMMS
# # # #
16 DIMMS
# # # # # # # #
CPU2
G1 G2 H1 I1 J1 J2 K1 L1
1 DIMM
2 DIMMS
#
4 DIMMS
# #
8 DIMMS
# # # #
16 DIMMS
# # # # # # # #
Note: "#" indicates the socket is populated with a memory module.
