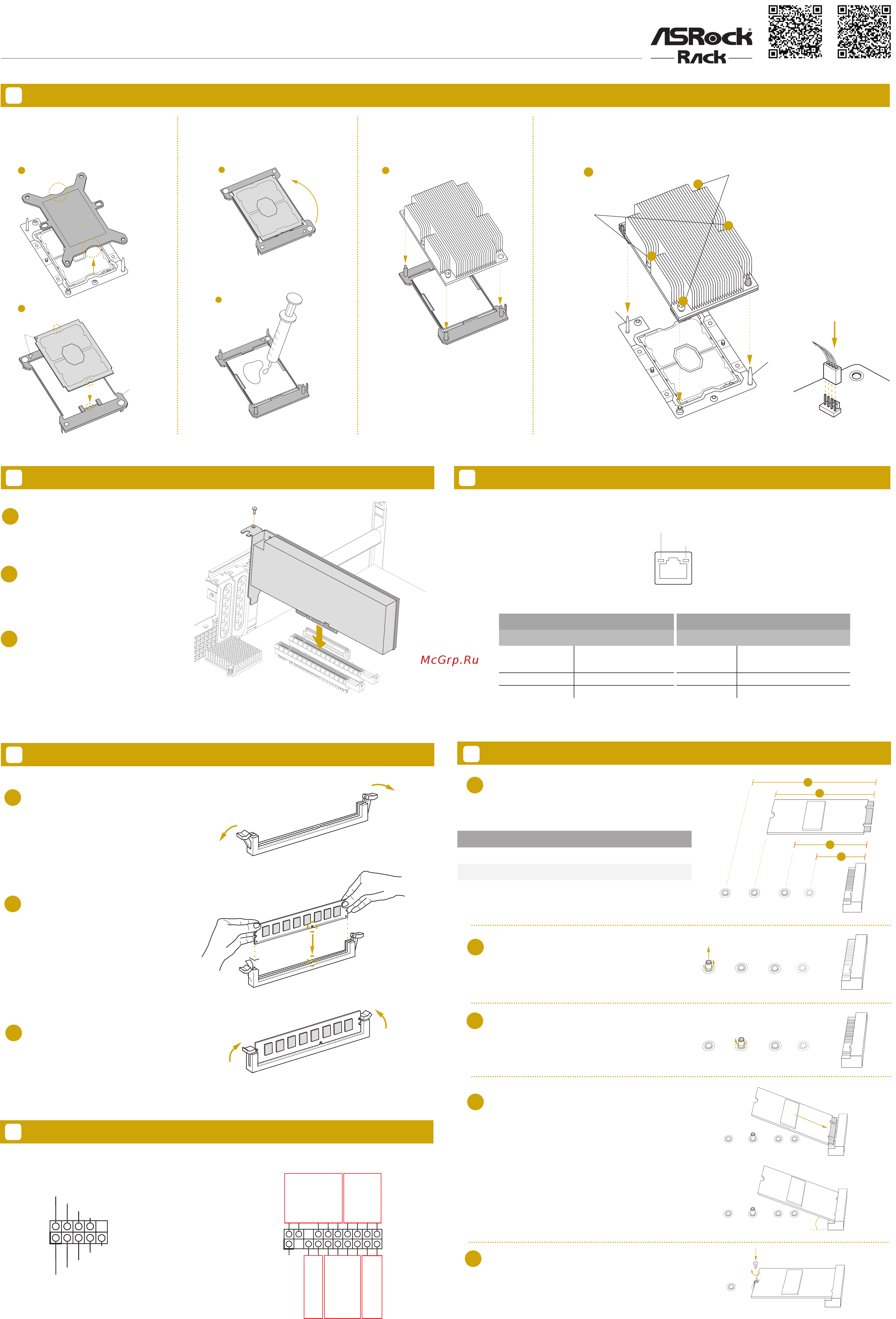

EP2C622D24LM / EP2C621D24LM-AB
Quick Installation Guide
www.asrockrack.com
EP2C622D24LM EP2C621D24LM-AB
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
8 Install the Memory
1
2
3
Unlock a DIMM slot by pressing
the module clips outward.
Insert the memory module.
Lock the clips.
7 LAN Port LED Indications
IPMI LAN Port
ACT/LINK LED
SPEED LED
LAN Port
5
Remove the CPU socket cover. Align and
install the processor on the carrier.
Carefully  ip the carrier assembly. Apply
a thermal paste .
en install the heatsink to the carrier
assembly and make sure the arrow is
located in the correct direction.
CPU_
FAN
Install the heatsink. Tighten the screws in a sequential order (6-1>6-2>6-3>6-4). When
dissembling the heatsink, loosen the screws in reverse order (6-4>6-3>6-2>6-1). Connect
the CPU fan to the CPU FAN connector.
Install the Processor and Heatsink
We recommend using the CPU Installation tool to avoid CPU pin-bent problem.
1
2
PIN1
CPU Carrier
3
4
180
o
5
6
Tighten the two
Middle Nuts to
12 IN.LB.
Two turns at a time.
Tighten the two
Corner Plunger
to 12 IN.LB.
Tw
o turns at a time.
6-1
6-2
6-3
6-4
Guide Pin
Guide Pin
M.2_SSD (NGFF) Module Installation
9
1
2
3
Find the corresponding nut location to be used.
Move the stando based on the module type and
length.
Peel o the yellow protective  lm on the nut. Hand
tighten the stando into the desired location.
Align and gently insert the M.2 module into the
slot.
Tighten the screw with a screwdriver to secure
the module into place. Please do not overtighten
the screw.
4
5
System Panel Auxiliary Panel
10 Headers
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
No. 1 2 3 4
Nut Location A B C D
PCB Length 3cm 4.2cm 6cm 8cm
Module Type Type2230 Type 2242 Ty pe2260 Type 2280
3
2
4
BCD
A
1
B
BCD
A
BCD
A
ABCD
ABCD
20
o
NUT1NUT2D
GND
BMC_SMBCLK1
BMC_Alert1_N
CA SEOPEN#
1
SMB_SMBDATA1
+3VSB
P0_LED_0
LAN1_LINK_P
P1_LED_0
LAN2_LINK_P
+5VSB
GND
GND
LOCATORLED+
LOCATORLED -
LOCATORBTN#
System_Fault_LED_P
System_Fault_LED_N
A
B
CD
E
6
Install the PCIE Card
1
Remove the bracket facing the slot that
you intend to use. Keep the screw for
later use.
2
Align the card connector with the
slot and press firmly until the card is
completely seated on the slot.
Fasten the card to the chassis with the
screw.
3
