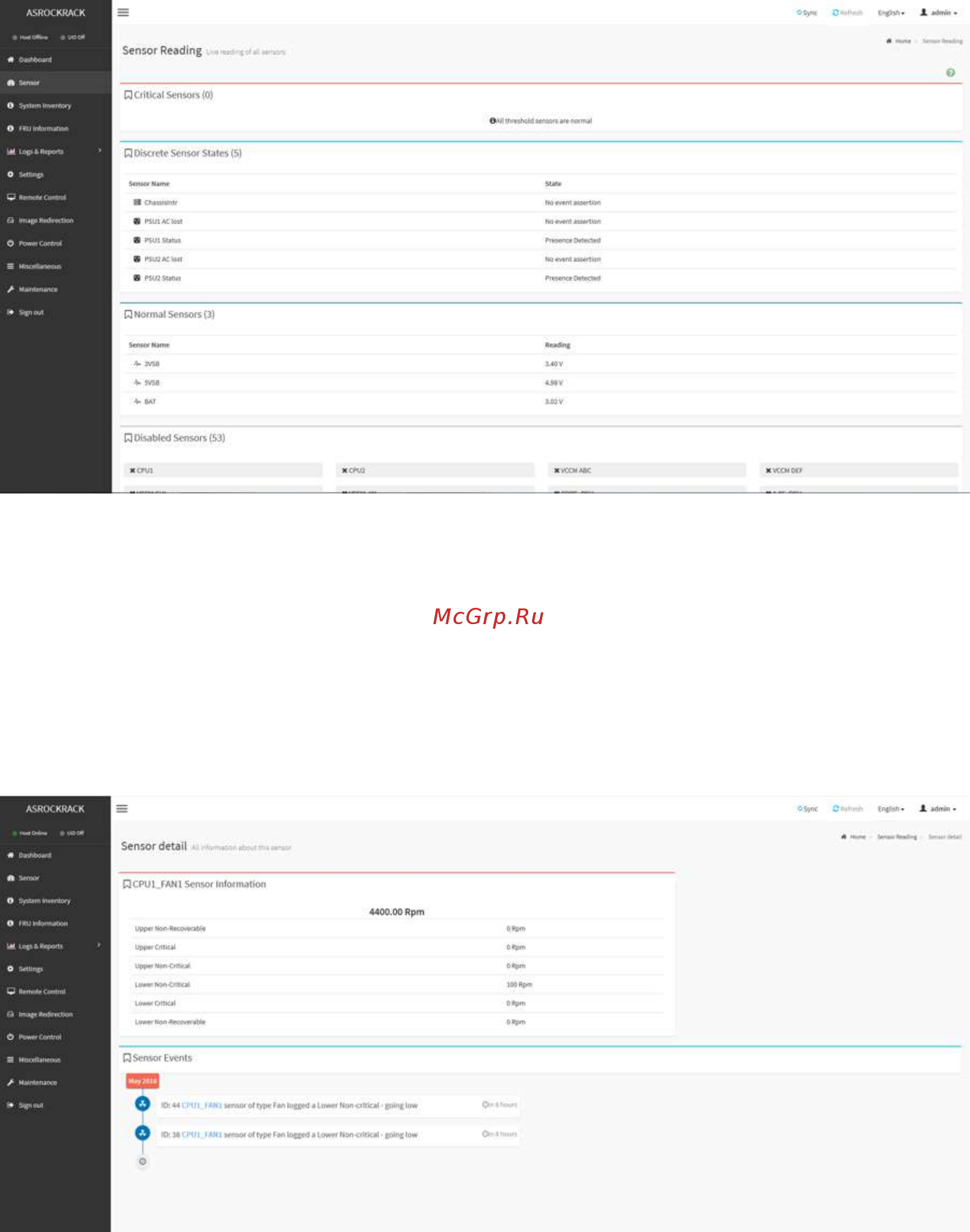

Sensor Page

In this Sensor Reading page, Live readings for all the available sensors with details like

Sensor Name, Status and Current Reading are shown.

Sensor detail:

Select a particular Sensor from the Critical Sensor or Normal Sensor lists. The Sensor

Information as Thresholds for the selected sensor will be displayed as shown below.

Sensor detail Page

Types of the thresholds:

• Lower Non-Recoverable (LNR)

• Lower Critical (LC)

• Lower Non-Critical (LNC)

• Upper Non-Recoverable (UNR)
