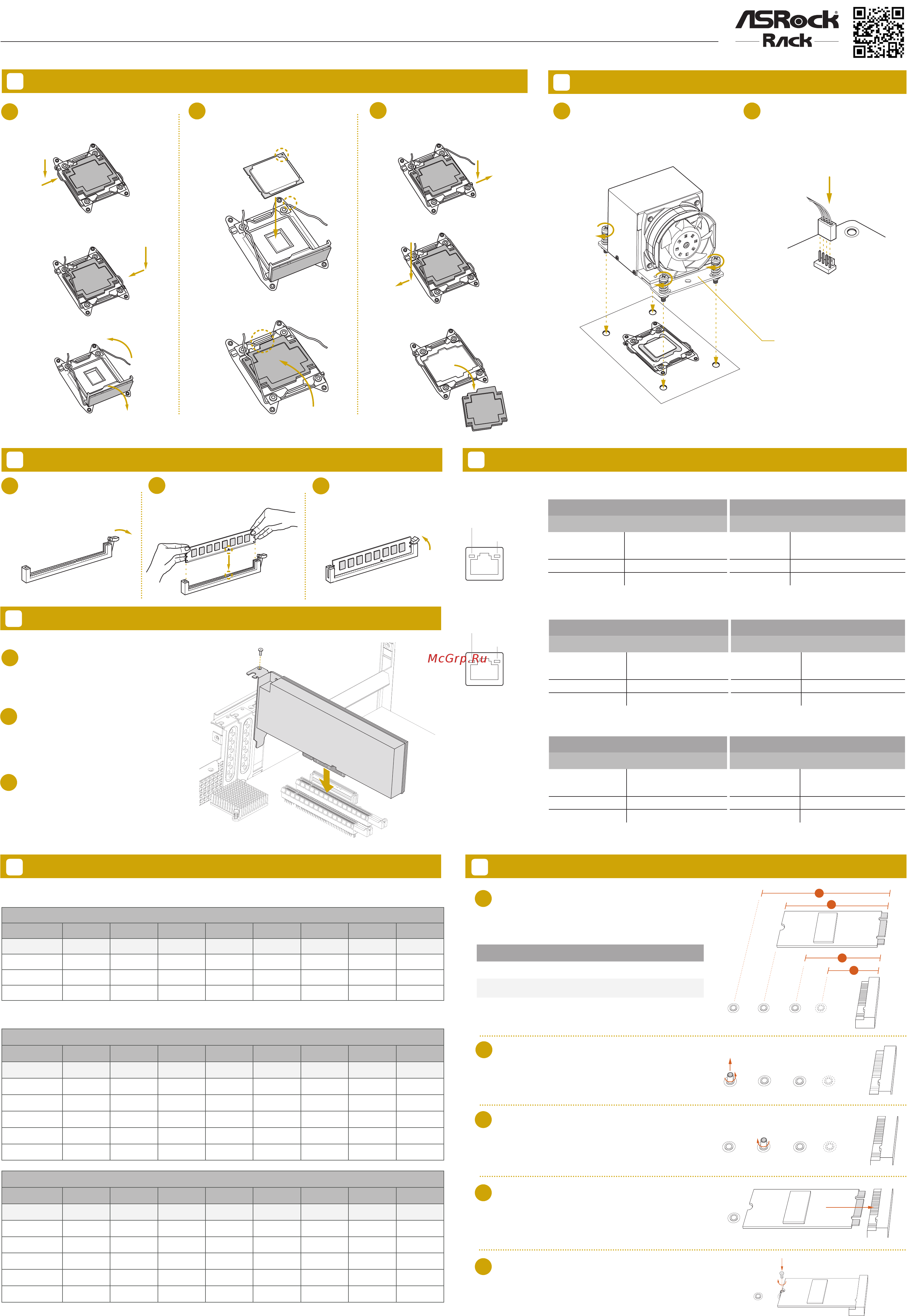

EP2C612D16HM / EP2C612D16HM-2T
Quick Installation Guide
www.asrockrack.com
1G For EP2C612D16HM
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Yellow 100Mbps connection Blinking Green Data Activity
Green 1Gbps connection On Link
10G For EP2C612D16HM-2T
Speed LED Activity / Link LED
Status Description Status Description
O 100Mbps connection or
no link
O No Link
Yellow 1Gbps connection Blinking Green Data Activity
Green 10Gbps connection On Link
9 LAN Port LED Indications
Recommended Memory Congurations
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
6
8
7
1
2
3
Open the socket levers and the
CPU socket cover.
Install the processor and close
the socket cover.
Close the socket levers. Remove
the CPU protection cap.
Install the CPU Fan and Heatsink
1 2
Apply the thermal grease. Install the
CPU fan and heatsink and secure
the screws.
Connect the CPU fan to the CPU
FAN connector.
Install the Memory
1
2
3
Unlock a DIMM slot by
pressing the module clip
outward.
Insert the memory module. Lock the clip.
10
Install the PCIE Card
1
Remove the bracket facing the slot that
you intend to use. Keep the screw for
later use.
2
Align the card connector with t he
slot and press firmly until the card is
completely seated on the slot.
Fasten the card to the chassis with the
screw.
3
IPMI LAN Port
1G/10G LAN Port
11
Install the Processor
ACT/LINK LED
SPEED LED
LAN Port
CPU_
FAN
A
B
A
B
A
B
A
B
B
A
1 CPU Conguration
CPU1
A1 A2 B1 B2 C1 C2 D1 D2
1 DIMM
#
2 DIMMS
# #
4 DIMMS
# # # #
8 DIMMS
# # # # # # # #
2 CPU Conguration
CPU1
A1 A2 B1 B2 C1 C2 D1 D2
1 DIMM
#
2 DIMMS
# #
4 DIMMS
# # # #
8 DIMMS
# # # #
12 DIMMS
# # # # # # # #
16 DIMMS
# # # # # # # #
CPU2
E1 E2 F1 F2 G1 G2 H1 H2
1 DIMM
2 DIMMS
4 DIMMS
8 DIMMS
# # # #
12 DIMMS
# # # #
16 DIMMS
# # # # # # # #
M.2_SSD (NGFF) Module Installation
12
1
2
3
Find the corresponding nut location to be used.
Move the stando based on the module type and
length.
Peel o the yellow protective lm on the nut. Hand
tighten the stando into the desired location.
No. 1 2 3 4
Nut Location A B C D
PCB Length 3cm 4.2cm 6cm 8cm
Module Type
Type
2230
Type
2242
Type
2260
Type
2280
Align and gently insert the M.2 module into the
slot.
Tighten the screw with a screwdriver to secure
the module into place. Please do not overtighten
the screw.
3
2
4
BCD
A
1
BCD
A
BCD
A
A
BCD
NUT1NUT2D
CPU fan for narrow ILM socket
*Support an active or passive heatsink
We recommend using the CPU Installation tool to avoid CPU pin-bent problem.
4
5
