EP2C612D8 Series
68 69
English

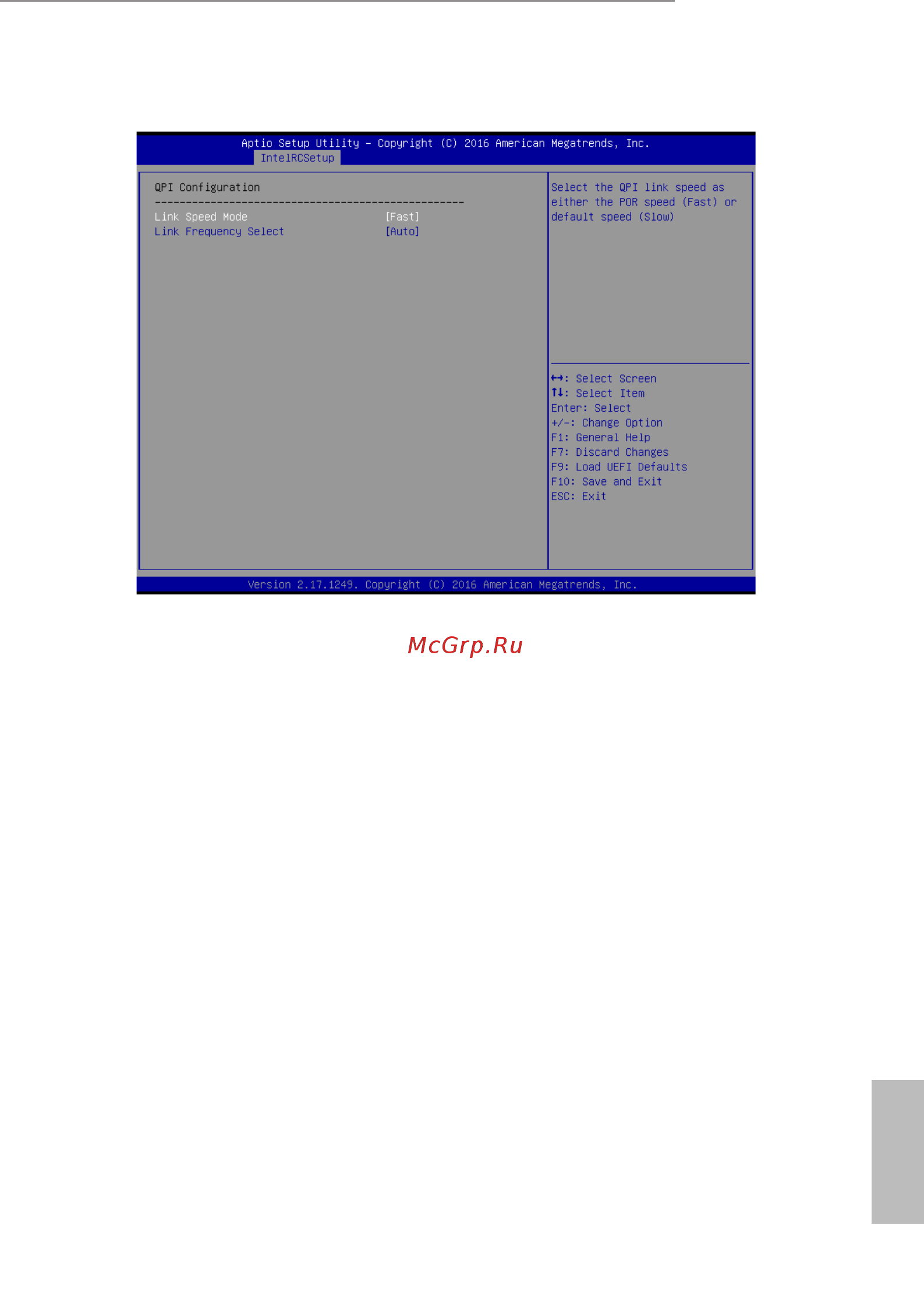

3.4.3 QPI Conguration
Link Speed Mode
Select the QPI link speed as either the POR speed (Fast) or default speed (Slow).
Link Frequency Select
Allows for selecting the QPI Link Frequency.
