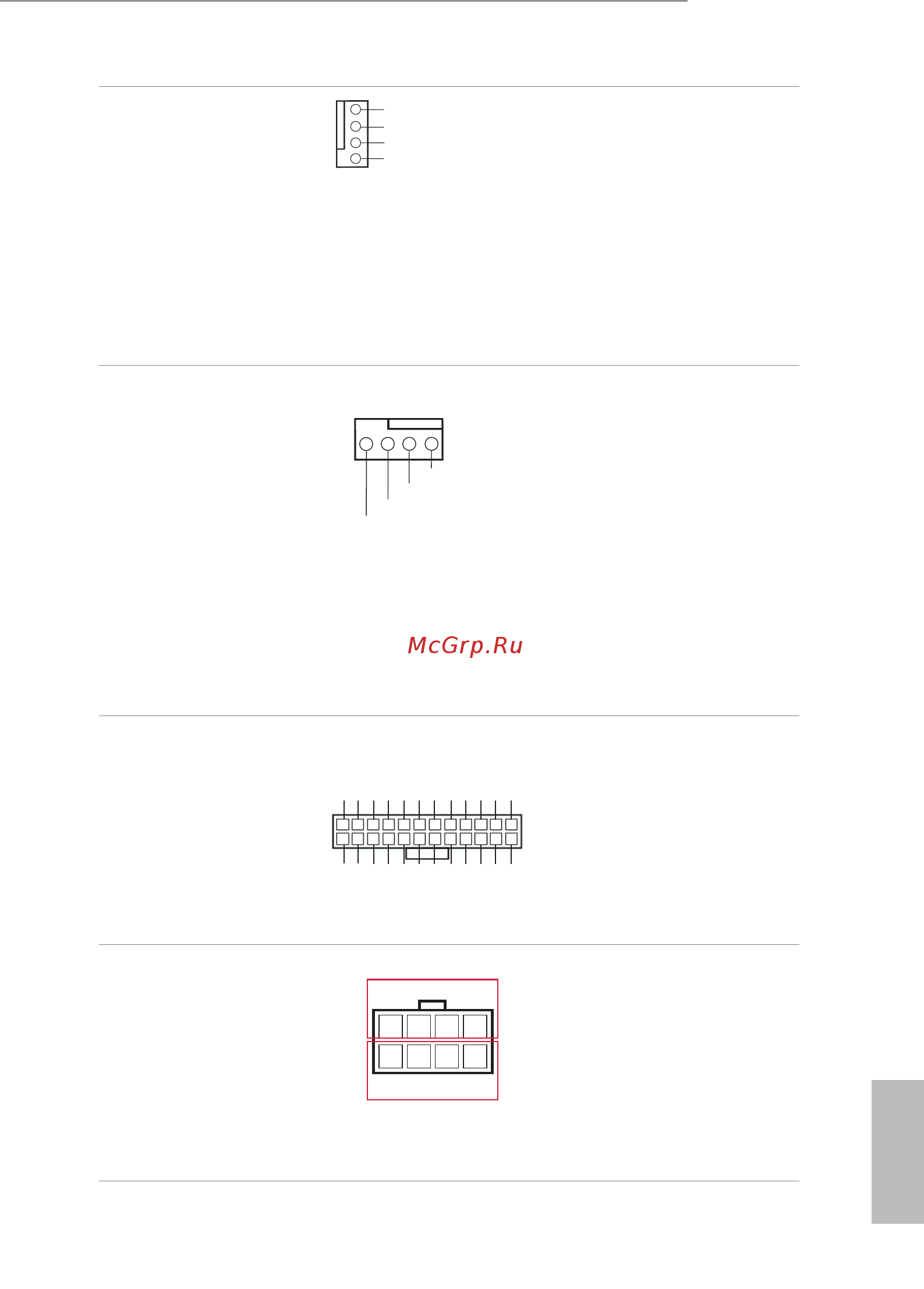

EPC612D4I
24 25
English
CPU Fan Connector
(4-pin CPU1_FAN1)
(see p.6, No. 9)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
is motherboard provides
two 4-Pin CPU fan (Quiet
Fan) connectors. If you plan
to connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
*For more details, please refer to the
Cooler QVL list on the ASRock Rack
website.
Front and Rear Fan
Connectors
(4-pin FRNT_FAN1)
(see p.6, No. 11)
(4-pin FR NT_FAN2)
(see p.6, No. 12)
(4-pin FR NT_FAN3)
(see p.6, No. 14)
(4-pin REAR _FAN1)
(see p.6, No. 1)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
4 3 2 1
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
ATX Power Connector
(24-pin ATX PWR1)
(see p.6, No. 7)
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
121
13
24
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
is motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
ATX 12V Power
Connector
(8-pin ATX12V2)
(see p.6, No. 8)
4
8
1
5
+12V2
GND
is motherboard provides
two 8-pin ATX 12V power
connectors.
