EPC612D4U / EPC612D4U-2T / EPC612D4U-8R / EPC612D4U-2T8R

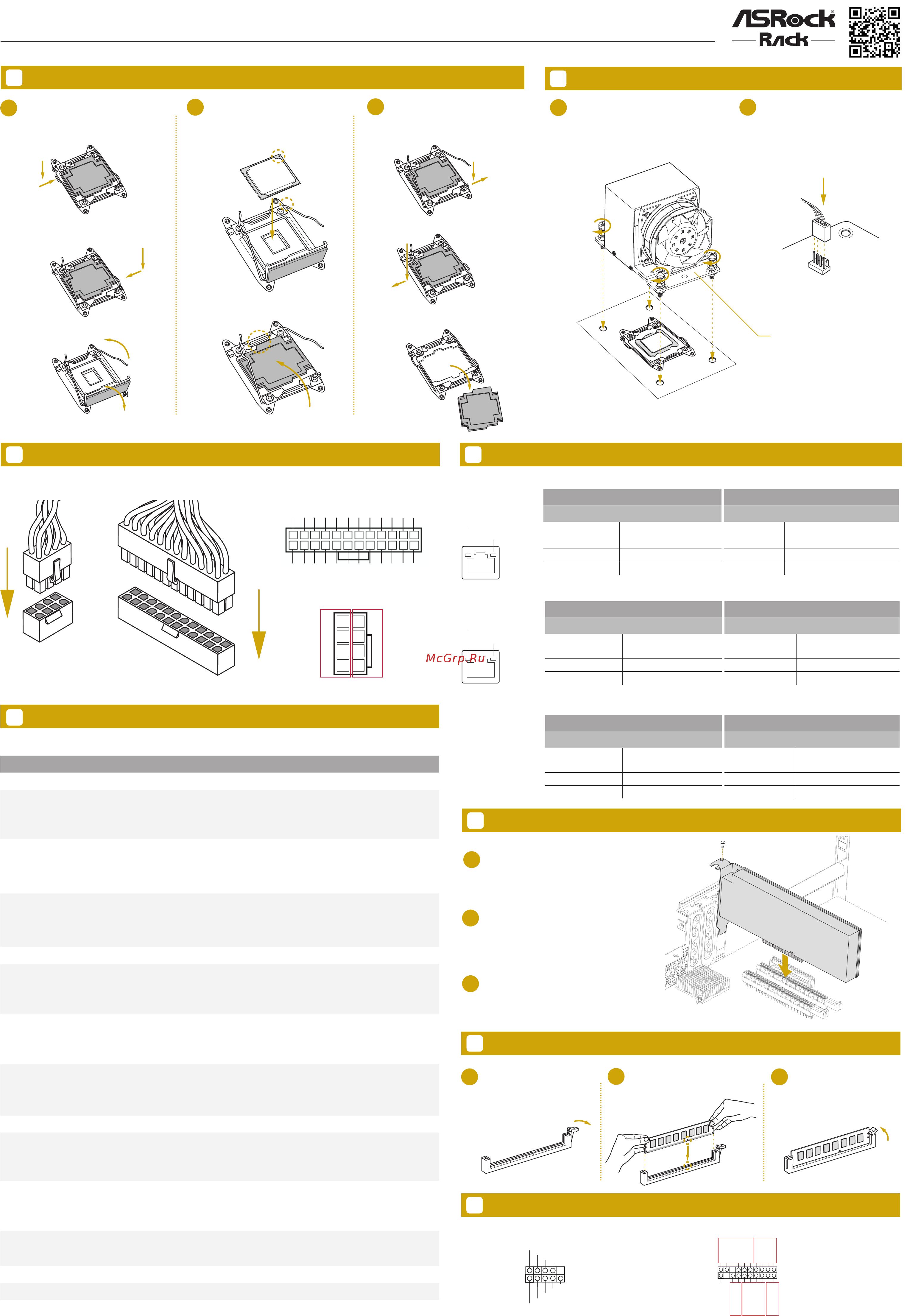

Quick Installation Guide
www.asrockrack.com
1G For EPC612D4U / EPC612D4U-8R
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
O 100Mbps connection Blinking Yellow Data Activity
Green 1Gbps connection On Link
10G For EPC612D4U-2T / EPC612D4U-2T8R
Speed LED Activity / Link LED
Status Description Status Description
O 100Mbps connection
or no link
O No Link
O 1Gbps connection Blinking Yellow Data Activity
Green 10Gbps connection On Link
8 LAN Port LED Indications
5
7
6
1
2
3
Open the socket levers and the
CPU socket cover.
Install the processor and close
the socket cover.
Close the socket levers. Remove
the CPU protection cap.
Install the CPU Fan and Heatsink
CPU_
FAN
1
2
Apply the thermal grease. Install the
CPU fan and heatsink and secure
the screws.
Connect the CPU fan to the CPU
FAN connector.
Install the Power Cables
IPMI Port
LAN Port
System Panel Auxiliary Panel
A
B
A
B
A
B
A
B
B
A
Install the Processor
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
11 Install the Memory
1
2
3
Unlock a DIMM slot by
pressing the module clip
outward.
Insert the memory module. Lock the clip.
10
Install the PCIE Card
1
Remove the bracket facing the slot that
you intend to use. Keep the screw for
later use.
2
Align the card connector with the
slot and press firmly until the card is
completely seated on the slot.
Fasten the card to the chassis with the
screw.
3
12 Headers
Dr. Debug
Code Description
00 Please check if the CPU is installed correctly and then clear CMOS.
0d
Problem related to memory, VGA card or other devices. Please clear CMOS, re-install the memo-
ry and VGA card, and remove other USB, PCI devices.
01 - 54
(except 0d),
5A- 60
Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the
problem still exists, please install only one memory module or try using other memory modules.
55
e Memory could not be detected. Please re-install the memory and CPU. If the problem still
exists, please install only one memory module or try using other memory modules.
61 - 91 Chipset initialization error. Please press reset or clear CMOS.
92 - 99
Problem related to PCI-E devices. Please re-install PCI-E devices or try installing them in other
slots. If the problem still exists, please remove all PCI-E devices or try using another VGA card.
A0 - A7
Problem related to IDE or SATA devices. Please re-install IDE and SATA devices. If the problem
still exists, please clear CMOS and try removing all SATA devices.
b0
Problem related to memory. Please re-install the CPU and memory. If the problem still exists,
please install only one memory module or try using other memory modules.
b4 Problem related to USB devices. Please try removing all USB devices.
b7
Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the
problem still exists, please install only one memory module or try using other memory modules.
d6
e VGA could not be recognized. Please clear CMOS and try re-installing the VGA card. If the
problem still exists, please try installing the VGA card in other slots or use other VGA cards.
d7
e Keyboard and mouse could not be recognized. Please try re-installing the keyboard and
mouse.
d8 Invalid Password.
FF Please check if the CPU is installed correctly and then clear CMOS.
9
ACT/LINK LED
SPEED LED
LAN Port
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yel low 100M bps connection
On Link Green 1Gbps connection
4
8
1
5
+12V2
GND
1
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
12
24 13
GND
SMB_CLK
SMB_Alert
CASEOPEN
1
SMB_DATA
+3VSB
LAN1_LINK
LED_PWR
LAN2_LINK
LED_PWR
+5VSB
GND
GND
LOCATO RL ED 1+
LOCATO RL ED 1-
LOCATO RB TN #
System Fau lt L ED -
A
B
C
D
System Fau lt L ED +
E
Dr. Debug
CPU fan for narrow ILM socket
*Support an active or passive heatsink
We recommend using the CPU Installation tool to avoid CPU pin-bent problem.
