Username: If share Type is Samba(CIFS), then enter username to authenticate on the
server.
Password: If share Type is Samba(CIFS), then enter password to authenticate on the
server.
Same settings for Floppy/Harddisk Images: Enable/Disable to select same media
type data configurations for all the remote media types.
Mount Floppy: Check the box to enable Mount Floppy support.
Server Address for Floppy Images: Displays the address of the server where the
remote media images are stored.
Path in server: Displays the Source path to the remote media images.
Share Type for Floppy: Displays the Share Type of the remote media server either
NFS or CIFS.
Mount Harddisk: Check the box to enable Mount Harddisk support.
Server Address for Harddisk Images: Displays the address of the server where the
remote media images are stored.
Path in server: Displays the Source path to the remote media images.
Share Type for Harddisk: Displays the Share Type of the remote media server either
NFS or CIFS.
3.8.5.2 VMedia Instance Settings
This page is used to configure virtual media device settings.

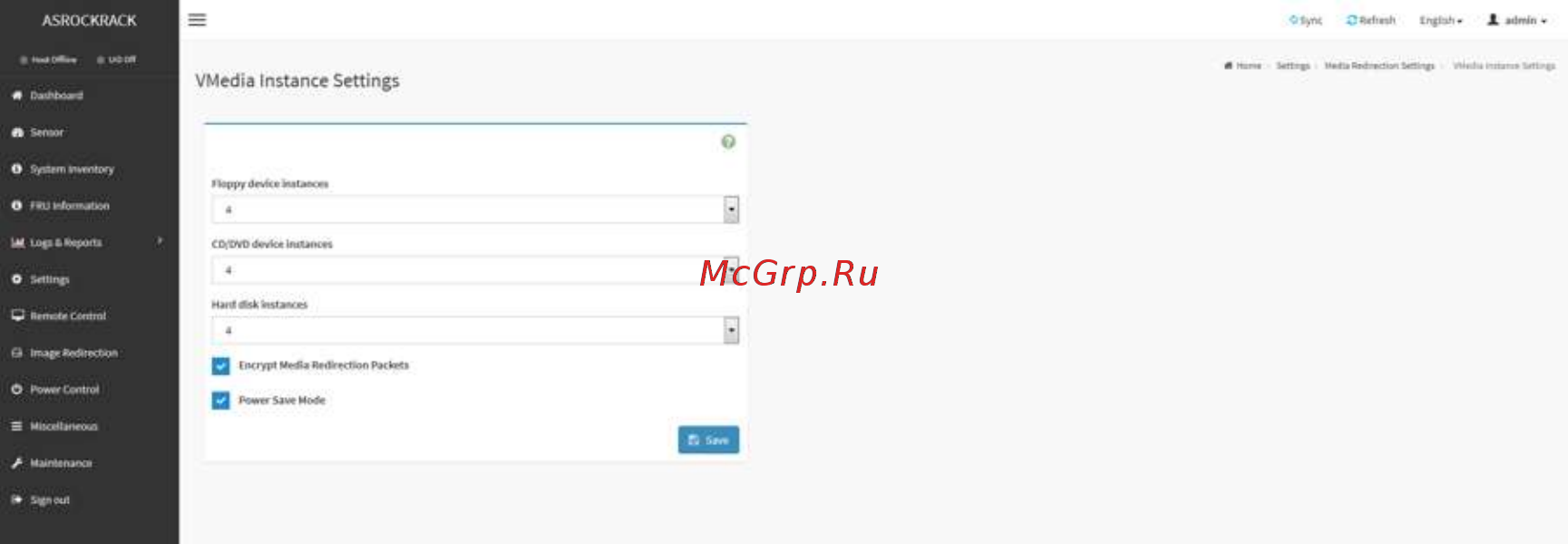

VMedia Instance Settings Page
Floppy device instances: The number of floppy devices supported for Virtual Media
redirection.
CD/DVD device instances: The number of CD/DVD devices supported for Virtual
Media redirection.
Harddisk instances: The number of harddisk devices supported for Virtual Media
22
