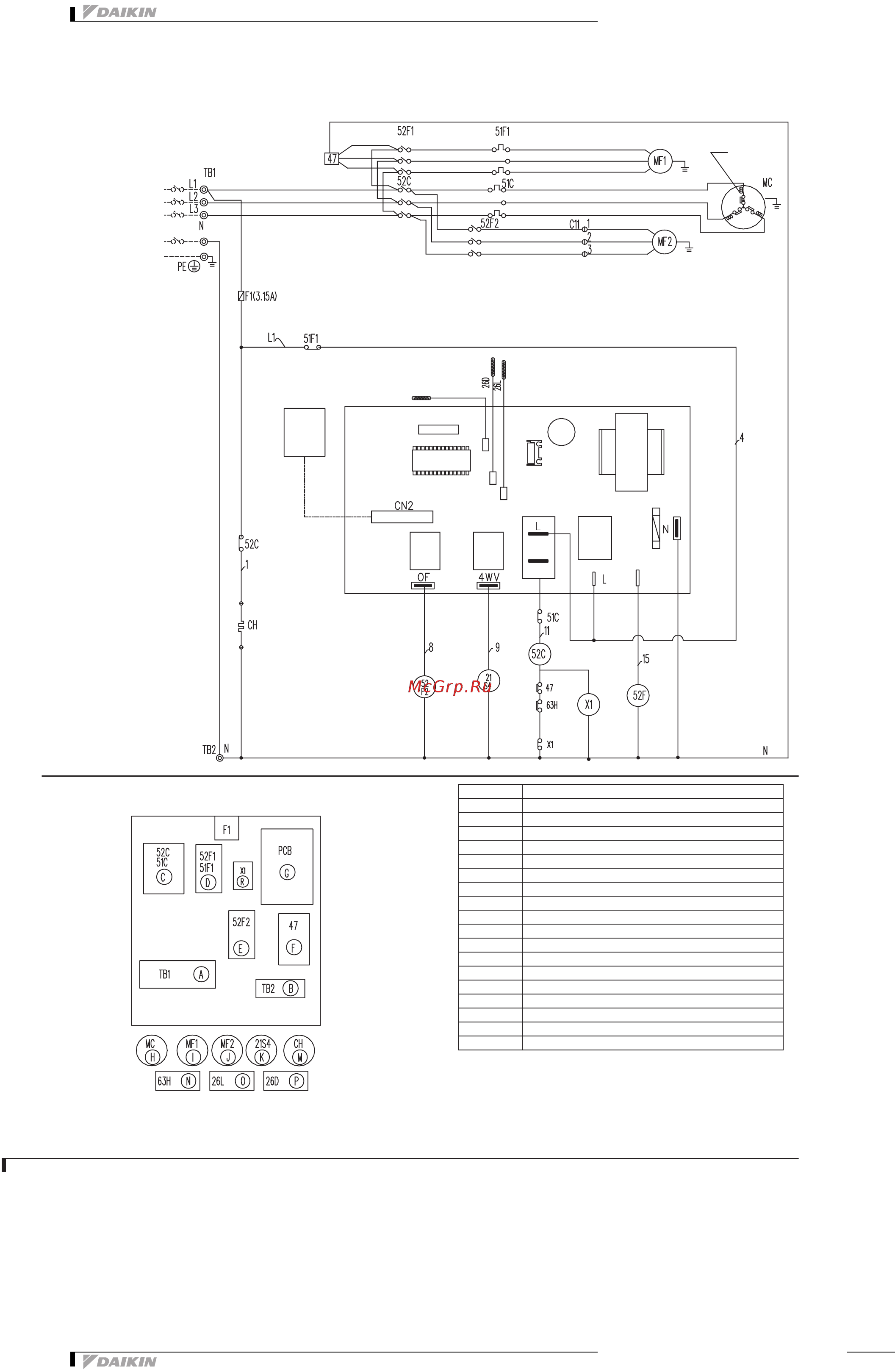

UATYP/TY320A
Caution,
1. To protect each Fan motor and compressor from abnormal current, Over current relays <51C>, <51F> are installed. Therefore, do not
change factory set value of Over current relays.
N
OTES
1 The dotted lines show field wiring.
2 The figure in the parenthesis shows field supply parts.
3 Color of earth is yellow and green twisting.
Power Supply
380~415VAC
3N~PE
50Hz
BLACK
RED
WHITE
BLACK
WHITE
RED
RETURN AIR SENSOR
BLUE
RED
RED
WHITE
BLACK
Arrangement
SLM
REMOTE
CONTROL
BLUE
SYMBOL NAME
MC Compressor motor
MF1 Fan motor (indoor)
MF2 Fan motor (outdoor)
52C Contactor (Compressor)
52F1 Contactor (fan I/D)
52F2 Contactor (fan 0/D)
51C Over current relay (comp)
51F1 Over current relay (fan I/D)
F1 Fuse (3.15A)
TB1,2 Terminal block
63H High-pressure switch
CH Crankcase heater
21S4 4-Way valve
26D Sensor (defrost)
26L Sensor (freeze protection)
PCB Printed circuit board
47 Phase protector/Discharge thermostat
X1 Auxiliary relay (Self Hold)
BLACK
RED
WHITE
TRANSFORMER
ID FAN
COMP.
INTERNAL
PROTECTOR
RED
RED
CIRCUIT BREAKER
(FIELD SUPPLY)
UATYP/TY320A.......60A
