MezzanineCardInstallation

Before installing a mezzanine card to a motherboard, remove the motherboard from the

chassis. To do so, be sure to power down the system and remove all connected cables rst. For

more details, refer to the user manual that comes with your system.

*e illustrations are for reference only and may be slightly dierent from the real products due to dierent models.

1

2

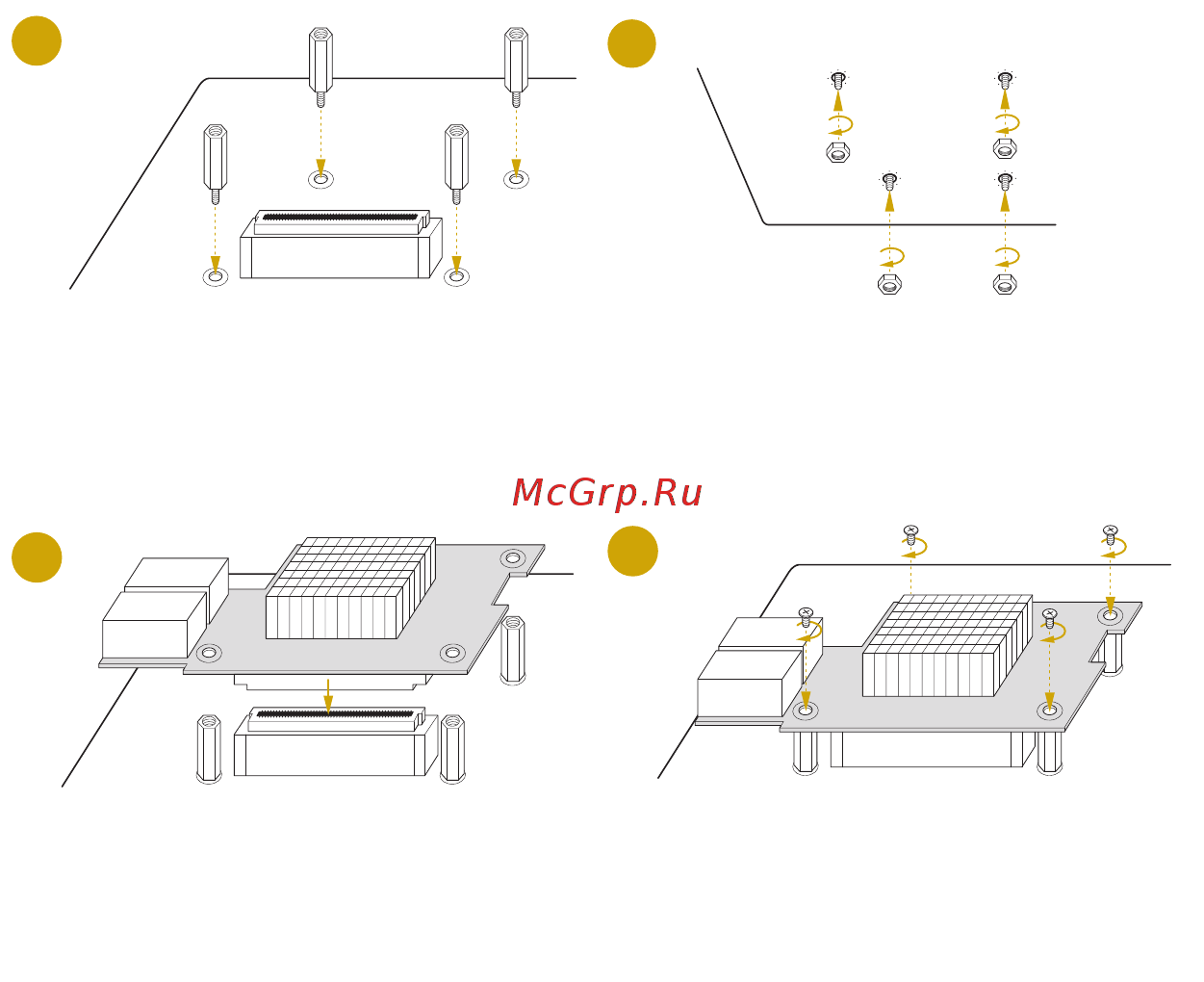

1. Install the four standos into the

motherboard around the mezzanine

2. Install the four lock nuts on the bolts

under the motherboard. Hand-tighten

When the mezzanine card is well installed, horizontally slide the motherboard back to the

chassis so the I/O connectors t through the I/O openings at the rear of the chassis. Well install

the motherboard to the chassis with screws. For more details, refer to the user manual that

comes with your motherboard.
