1 SFP+ Port (Fiber) (LAN1)
2 SFP+ Port (Fiber) (LAN2)
1
2
M599
•
1 x Mezzanine Card
•
4 x Screws
•
4 x Standos
•
4 x Nuts
•
1 x Support CD
•
1 x Quick Installation Guide
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these head-
ers and connectors. Placing jumper caps over the headers and connectors will cause permanent
damage to the motherboard.
Front LAN LED Connector
(LAN_ LED_1)
1
LAN3_LINK
LED_PWR
LED_PWR
LAN4_LINK
is 4-pin connector is used for
the front LAN status indicator.
LAN Port LED Indications
Package Contents
L AN2_10G L AN2_1G
L AN1_10G/LAN1_1G
(4.3in)109.40mm
(2.7in)68.00mm
(0.5in)14.80mm

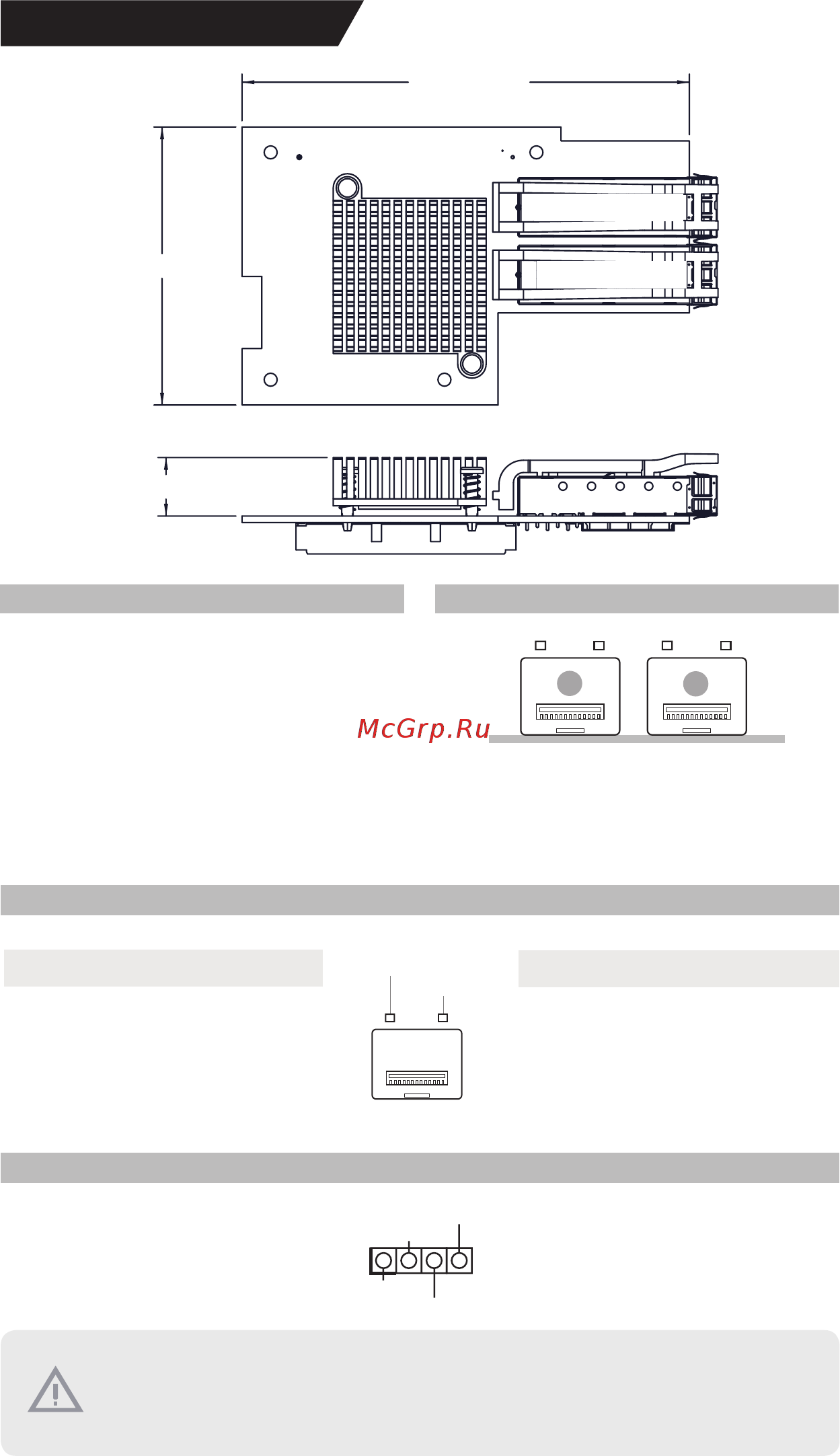

Layout
Onboard Header
Activity/LinkLED
Status Description
O No Link
Blinking Data Activity
On Link
SpeedLED
Status Description
O 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
