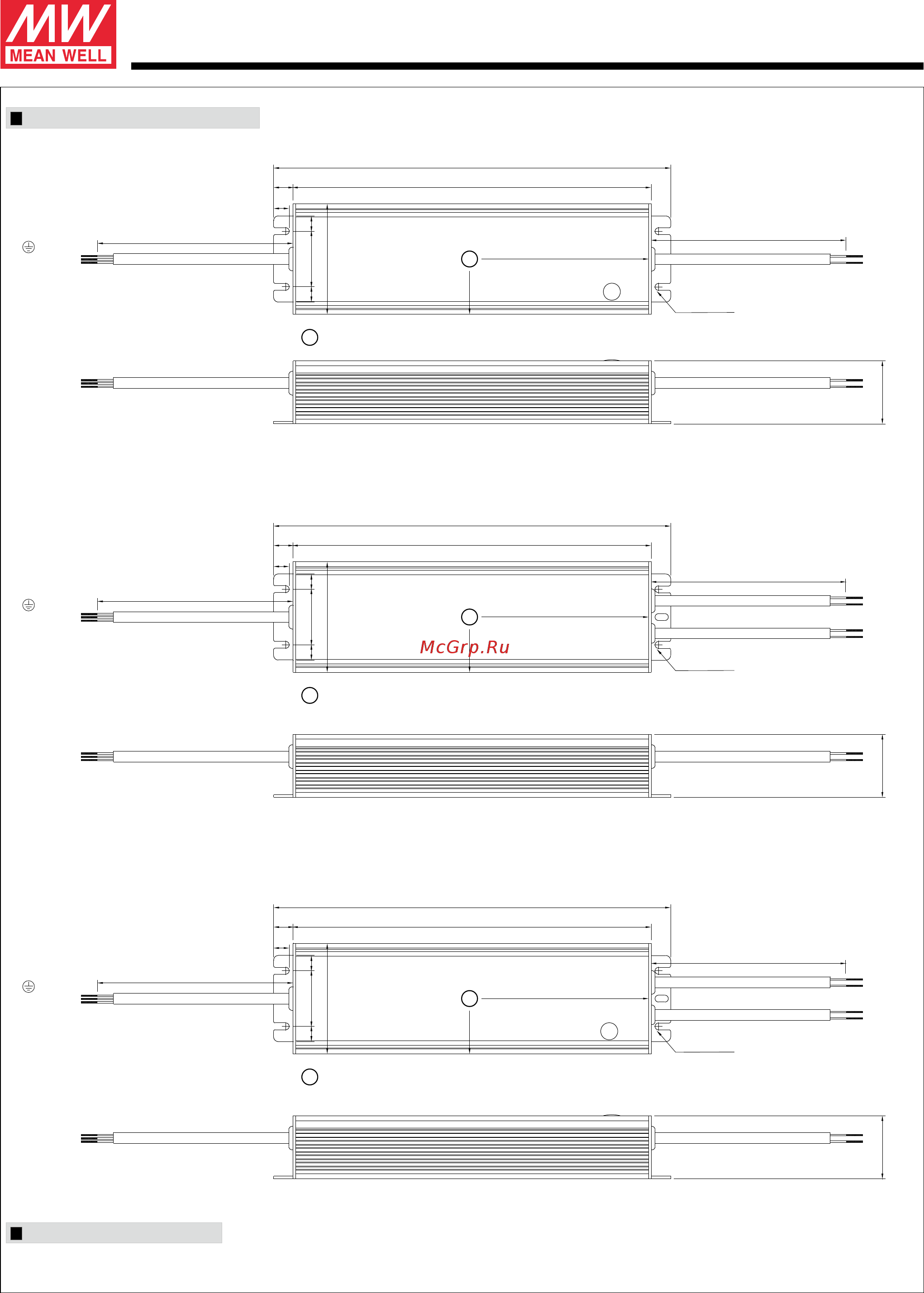

MECHANICAL SPECIFICATION
Case No.954F Unit:mm
250W Constant Current Mode LED Driver
HLG-240H-C series
File Name:HLG-240H-C-SPEC 2018-09-30
244.2
220.2
12
9.6
300 20±
FG (Green/Yellow)
FG (Green/Yellow)
38.8
AC/L(Brown)
AC/L(Brown)
AC/N(Blue)
AC/N(Blue)
9.4 9.4
34.2
68
300 20±
110.1
110.1
34
34
244.2
220.2
12
9.6
※ B/D2-Type
300 20±
38.8
9.4 9.4
34.2
68
300 20±
※ A-Type
Io
ADJ.
ψ×4.2 4PL
ψ×4.2 4PL
: Max. Case Temperature
: Max. Case Temperature
tc
tc
tc
tc
* DIM+ for B-Type
PROG+ for D2-Type
* *DIM- for B-Type
PROG- for D2-Type
INSTALLATION MANUAL
Please refer to : http://www.meanwell.com/manual.html
+V(Brown)
-V(Blue)
+V(Brown)
-V(Blue)
DIM-(Black)**
DIM+(Gray)*
SJOW 17AWG&H05RN-F 1.0mm x3C²
SJOW 17AWG&H05RN-F 1.0mm x3C²
SJOW 17AWG&H05RN-F 1.0mm x2C²
SOOW 17AWG&H07RN-F 1.0mm x2C²
SJOW 17AWG&H05RN-F 1.0mm x2C(for others)²
(for HLG-240H-C700)
SOOW 17AWG&H07RN-F 1.0mm x2C²
SJOW 17AWG&H05RN-F 1.0mm x2C(for others)²
(for HLG-240H-C700)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
110.1
34
244.2
220.2
12
9.6
※ AB-Type
300 20±
38.8
9.4 9.4
34.2
68
300 20±
ψ×4.2 4PL
: Max. Case Temperature
tc
tc
+V(Brown)
-V(Blue)
DIM-(Black)
DIM+(Gray)
SJOW 17AWG&H05RN-F 1.0mm x3C²
SJOW 17AWG&H05RN-F 1.0mm x2C²
SOOW 17AWG&H07RN-F 1.0mm x2C²
SJOW 17AWG&H05RN-F 1.0mm x2C(for others)²
(for HLG-240H-C700)
Io
ADJ.
