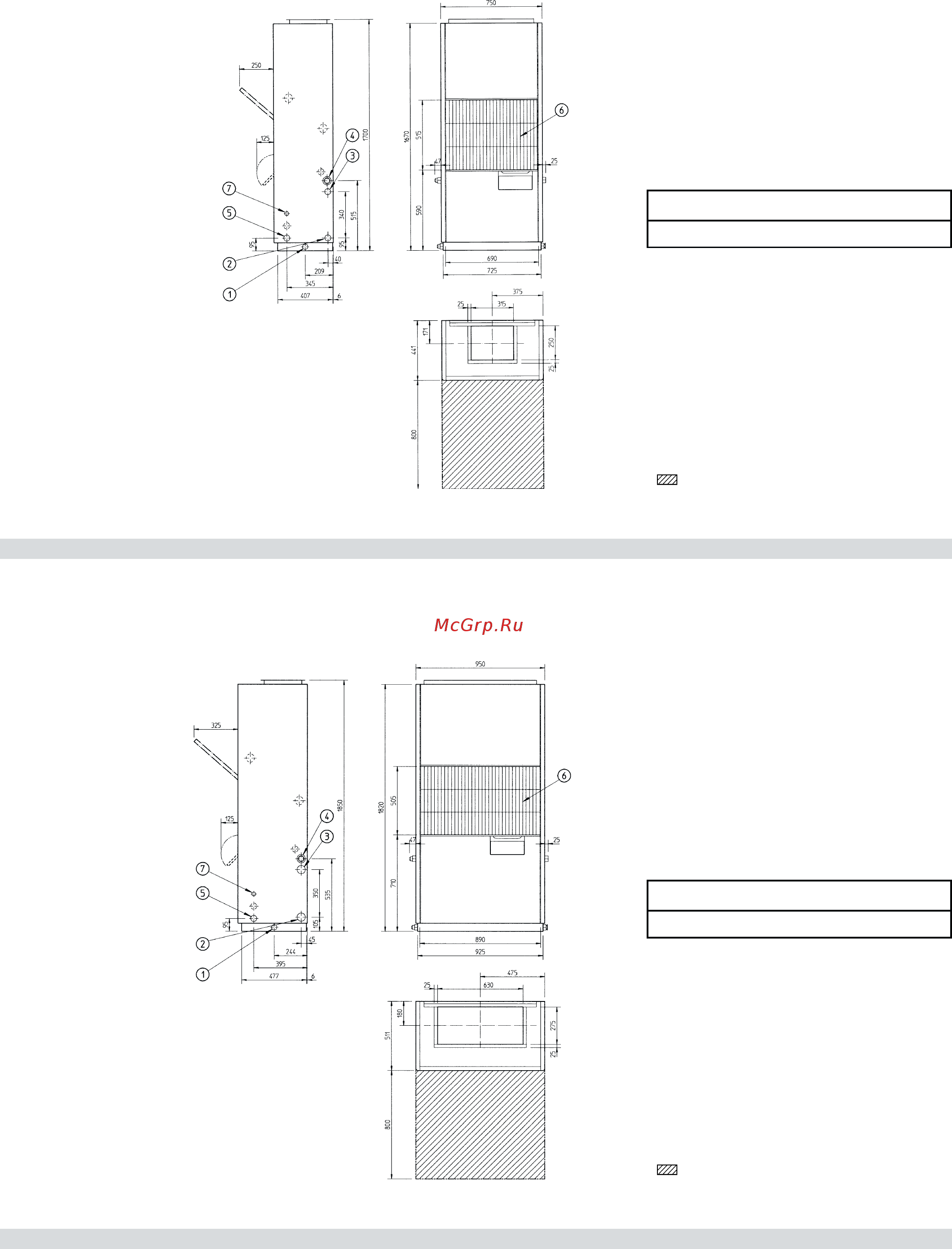

EFR5JB
EFR3JB
➀
lower drain connection 1" FPT
➁
liquid pipe inlet Ø61
➂
discharge pipe outlet Ø61
➃
upper drain connection 1" FPT
➄
power supply intake Ø45
➅
suction grille
➆
control wiring Ø28
service space
Discharge Liquid
5/8" flare 1/2" flare
➀
lower drain connection 1" FPT
➁
liquid pipe inlet Ø45
➂
discharge pipe outlet Ø45
➃
upper drain connection 1" FPT
➄
power supply intake Ø45
➅
suction grille
➆
control wiring Ø28
service space
Discharge Liquid
1/2" flare 3/8" flare
