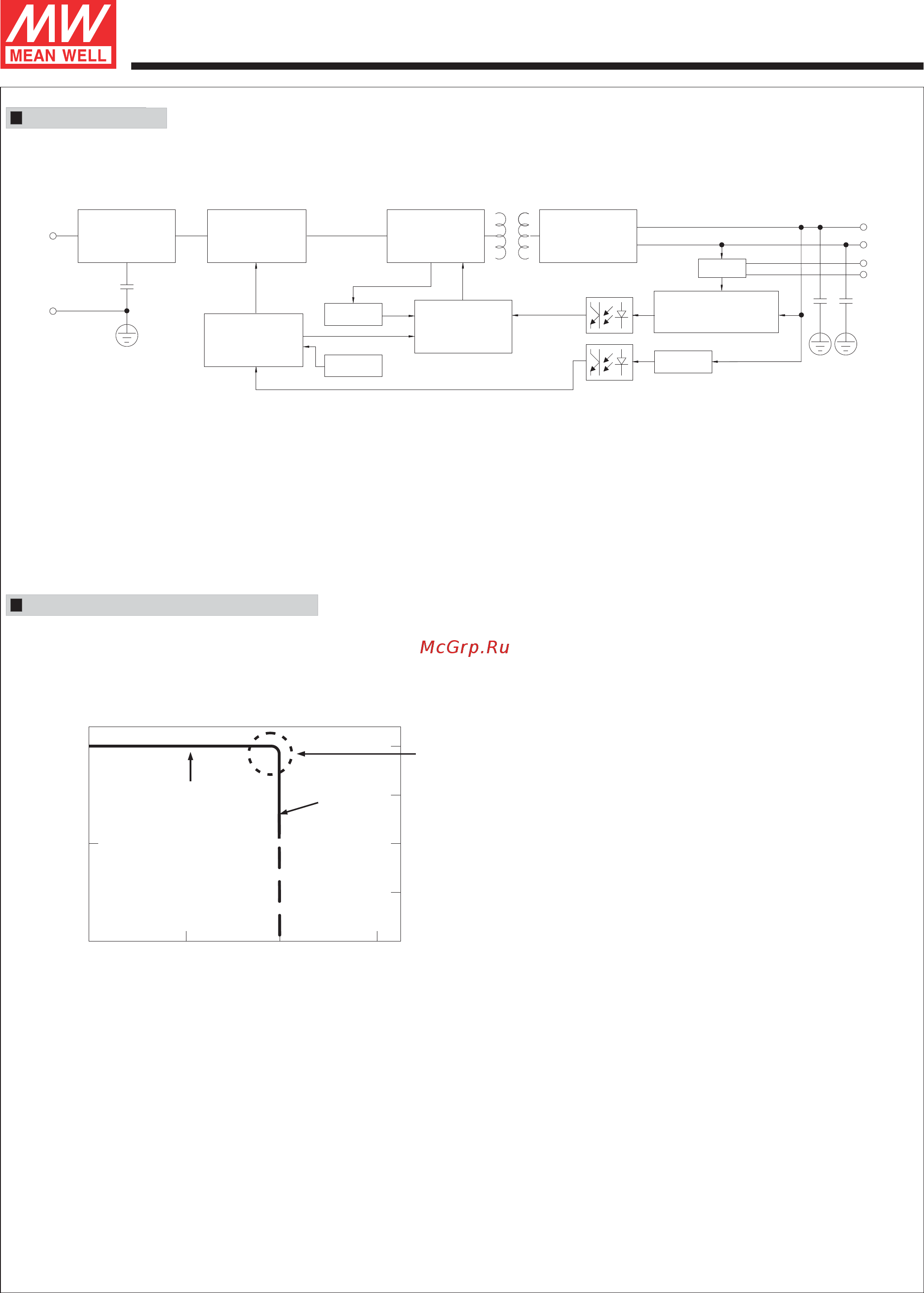

BLOCK DIAGRAM
PFC KHfosc : 45 z
fosc : 55 zPWM KH
DIM+
(B Type)
DIM-
DETECTION
PWM
CIRCUIT
O.L.P.
EMI FILTER
RECTIFIERS
POWER
SWITCHING
FILTER
&
RECTIFIERS
Vo+
Vo-
I/P
FG
CONTROL
O.V.P.
&
O.L.P.
PFC
CIRCUIT
PFC
CONTROL
O.T.P.
480W Constant Voltage + Constant Current LED Driver
HLG-480H series
File Name:HLG-480H-SPEC 2019-02-28
DRIVING METHODS OF LED MODULE
Typical output current normalized by rated current (%)
Vo(%)
100
50
50 100
Io (%)
Constant
Current area
Constant
Voltage area
(A)
(B)
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
※ This series is able to work in either Constant Current mode (a direct drive way) or
Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.
