C
A
B
D
E
F
A
B
B
A
C
C
A
A
F
F
G
H
C
I
I
dmx
dmx
dmx
Copyright © 2020, GRIVEN S.r.l World Lighting Challenge - www.griven.com

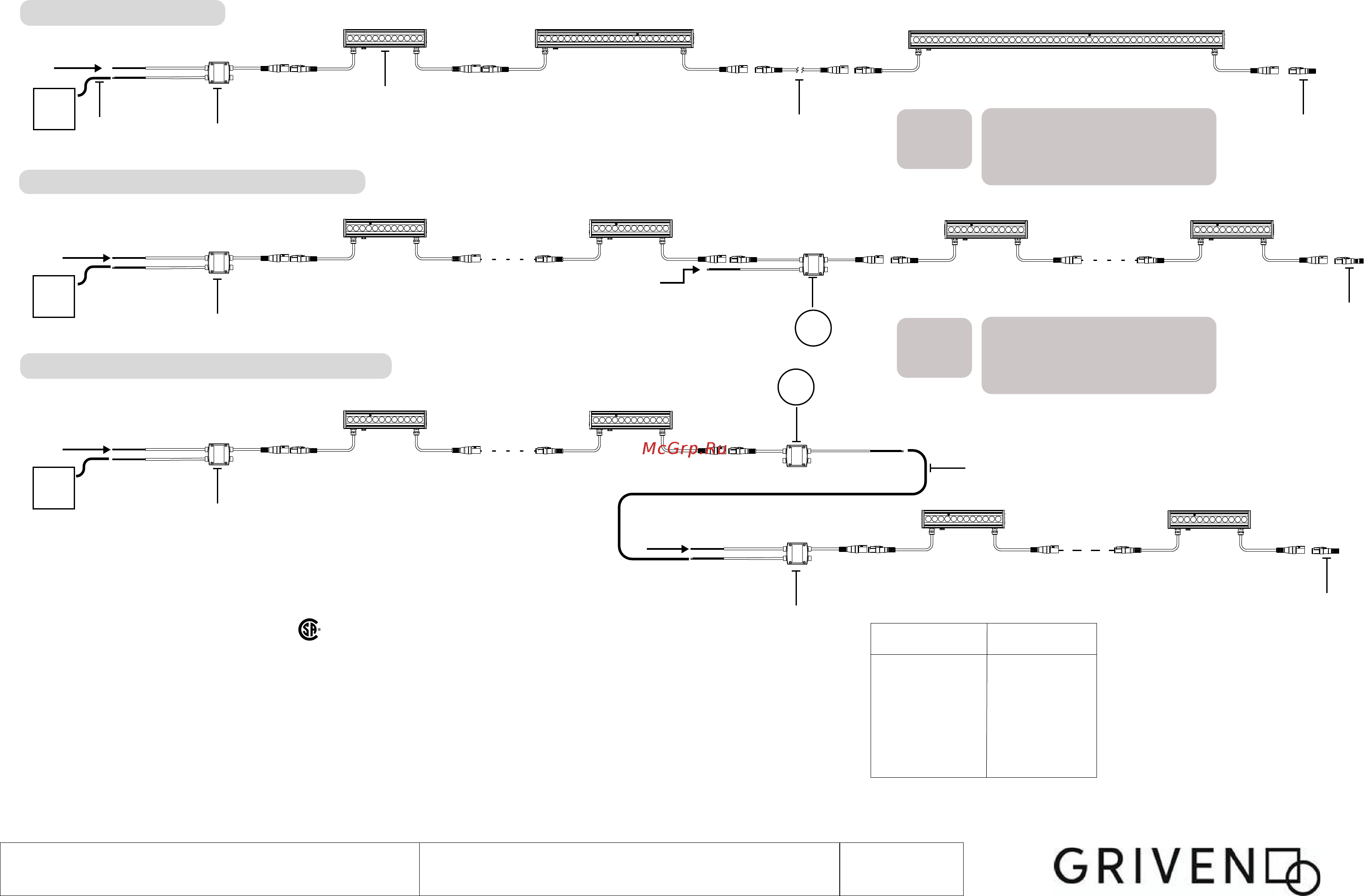

Conguration Scheme Parade L-1 L-2 L-3 L-4
Codes: AL5060 AL5061 AL5065 AL5066
AL5070 AL5071 AL5075 AL5076
Rev. A-01
A - Power Input CE ver. 220-240 Vac - ver. 120 & 277 Vac
B - DMX/RDM Controller
C - Start Line Box - AL5058C with connectors / AL5058M without connectors
D - Parade L-1 , L-2 , L-3 , L-4 , L-2 Recessed , L-3 Recessed
E - Connection Cable - AL8264 L=1m AL8265 L=2m AL8266 L=3m AL8267 L=5m AL8268 L=10m
F - DMX Terminator - AL5169
G - Repower Box - AL5167C with connectos / AL5167M without connectors
H - DMX Junction Box - AL5059C with connectors / AL5059M without connectors
I - DMX Cable - AL0512
CE Colours
Brown
Blue
Yellow/Green
Red
Black
White
USE
Live
Neutral
Ground
DMX Data +
DMX Data -
DMX GND
Multy Chain Conguration using Repower Box
Single Chain Conguration
Multy Chain Conguration using DMX junction Box
Max. 10 A
per
daisy chain
Use a DMX repeater on each 32nd
xture of the daisy chain or in case
the total DMX LINE length exceeds
1000 ft (300m)
Max. 10 A
per
daisy chain
Use a DMX repeater on each 32nd
xture of the daisy chain or in case
the total DMX LINE length exceeds
1000 ft (300m)
