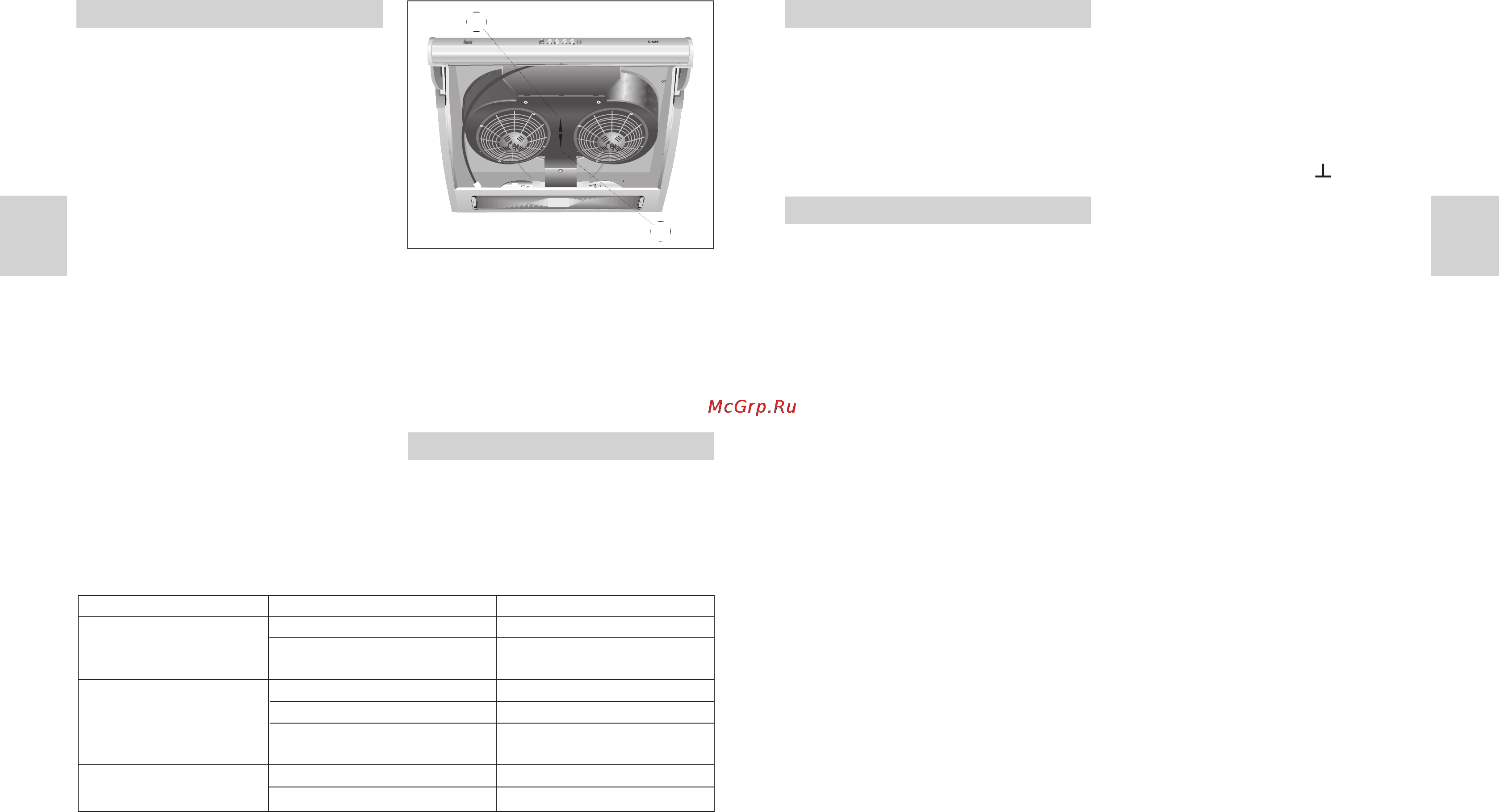

Teka C-610 [4/4] Electrical connection

Special U.K. Requirements

Height above gas hob: 75 mm minimum

NEVER PLACE THE COOKER HOOD OVER

AN EYE-LEVEL GRILL.

This appliance must be connected by a

competent person, using fixed wiring via

a DOUBLE POLE SWITCHED FUSED

SPUR OUTLET.

Electrical connection

We recommend that the appliance is con-

nected by a qualified electrician, who is a

member of the N.I.C.E.I.C. and who will

comply with the I.E.E. and local regulations.

Should the colour of the wires in the mains

lead for the appliance not correspond with

the coloured markings identifying the termi-

nal in your spur box proceed as follows:

- The wire which is coloured blur must be

connected to the marked N (Neutral) or

coloured Black.

- The wire which is coloured brown must be

connected to the marked L (Live) or

couloured Red.

- Where avialable (see installation), the wire

which is coloured yellow/green must be

connected to the market or coloured

Yellow/Green.

If the cooker hood is installed for use above

a gas appliance then the provision for venti-

lation must be in accordance with the Gas

Safety (Installation & Use) Regulations

1984 and the relevant Building Regula-

tions. Detailed recommendations are con-

tained in the following British Standard

Codes of Practice BS6172, BS5440 and

BS6891 Current Edition.

Installation

To fix the extractor to the kitchen unit the

pattern on page 18 is used.

The lower part of the extractor must be

located at a minimum height of 60 cm

above the hob for electric cookers and 65

cm for gas cookers. If the instructions of

a gas cooker indicate a greater distance

these must be observed.

The extractor must be connected to a

wall socket with an effective earth.

When the extractor is working at the

same time as other non-electrical cook-

ing equipment, the outlet air pressure

must not exceed 4 Pa (4 x 10

-5

bar).

To achieve optimum performance the

length of the outlet hose should not

exceed 4 meters, or include more than

two 90º angles (elbows).

Although venting to the outside is recom-

mended, activated carbon filters may be

used, which allow the gas to be returned to

the kitchen through the outlet pipe.To evacu-

ate via the upper part, an external evacua-

tion conduit is needed and the evacuation

lever to be located in the “E” position. The

small (anti-return) outlet hose is located,

ensuring that the remaining outlets are duly

plugged. To allow re-circulation through the

active carbon the evacuation lever is located

in the “I” position, ensuring that the upper

opening is plugged. Then the activated car-

bon filter is located in the inlet mouth.

If something does not work

Before seeking technical assistance car-

ry out the following checks first:

Defect Possible cause Solution

The extractor The cable is not connected Connect the mains cable

does not work No current is reaching the plug Revise/repair the

electricity circuit

The extractor does not Filter saturated with grease Clean or substitute filter

blow enough or vibrates Outlet obstructed Eliminate obstructions

Inadequate air conduit Contact the installer and follow

instructions of this manual

The lamps do not light Lamp broken Exchange the bulb

Lamp loose Tighten bulb
