10 drivers(max.) synchronization (1 master + 9 slaves)

Maximum cable length between each units : 20 meter.

LCM-40DA

(Slave 2)

LCM-40DA

------

SYN.

DA-

Push Button

AC/N

AC/L

DA+

PUSH

AC/N

AC/L

SYN. SYN.

LCM-40DA

(Master)

LCM-40DA

(Slave 1)

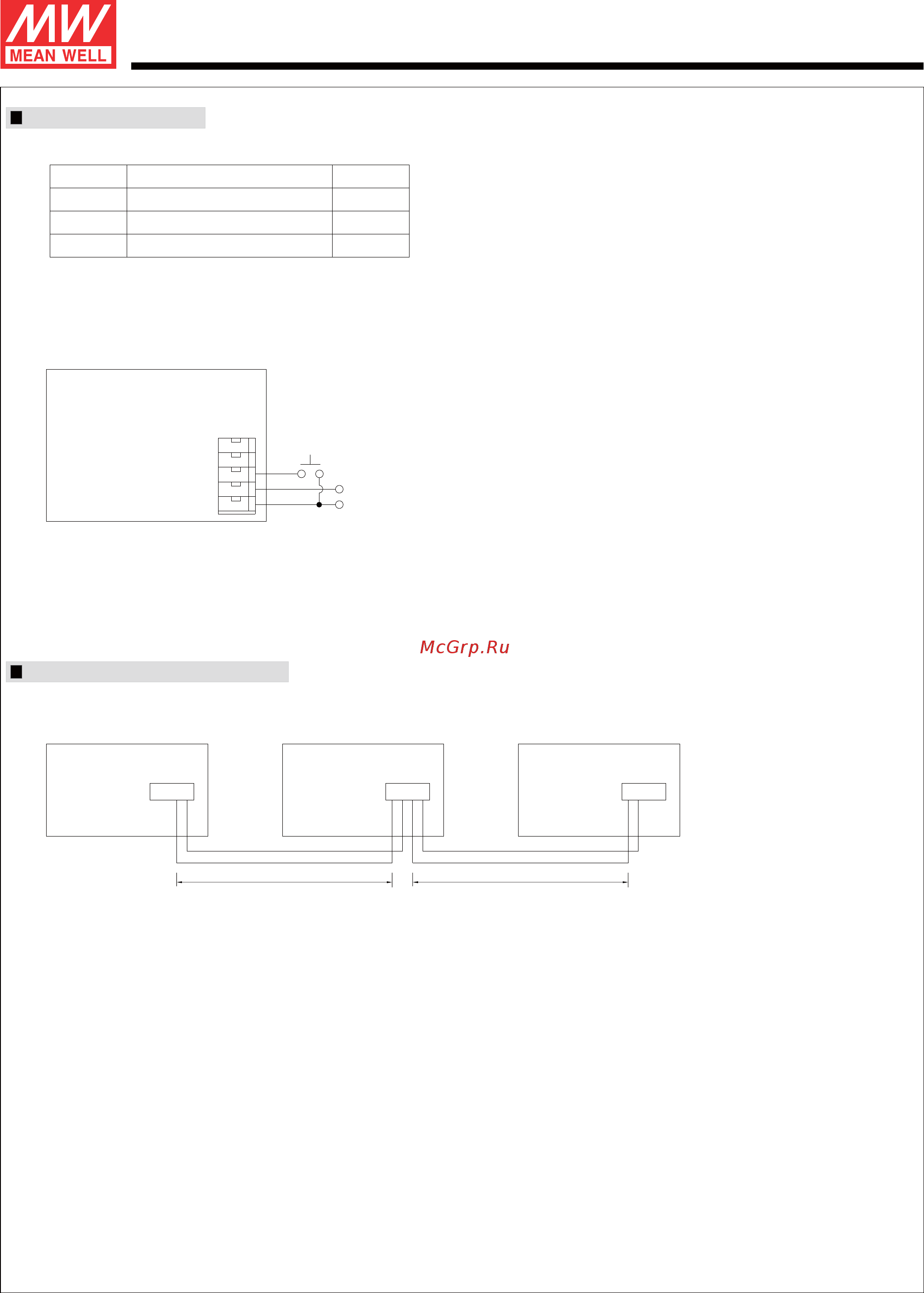

DIMMING OPERATION

SYNCHRONIZATION OPERATION

※PUSH dim(primary side)

Maximum number of drivers up to 10 pcs.

Maximum length of the cable, from push button to last driver is 20 meter.

Factory setting at 100%.

Warning: The pushbutton can only be connected in between the PUSH terminal of LCM-40DA and AC/L (brown or black color). It would cause short

circuit if it is connected to AC/N.

DALI protocol including 16 groups and 64 addresses.

First step is fixed at 6% of output.

※DALI interface(primary side)

Ignore <0.05 sec.To avoid reaction on AC spike

Short push 0.1~1 sec.Push to turn ON-OFF

Long push 1.5~10 sec.Dimming up or down

Reset push >11 sec.Setting light to 100%

20m 20m

NOTE Please make sure all units are set to 100% dimming setting(factory default) before synchronizing.:

File Name:LCM-40DA-SPEC 2014-06-26

40W Multiple-Stage Output Current LED Power Supply

LCM-40DA series

Every long pushing action will change the dimming direction.
