‧10 drivers(max.) synchronization (1 master + 9 slaves)

‧Maximum cable length between each units : 20 meter.

LCM-60DA

(Slave 2)

LCM-60DA

- - -- - -

SYN.

DA-

Push Button

AC/N

AC/L

DA+

PUSH

AC/N

AC/L

SYN. SYN.

LCM-60DA

(Master)

LCM-60DA

(Slave 1)

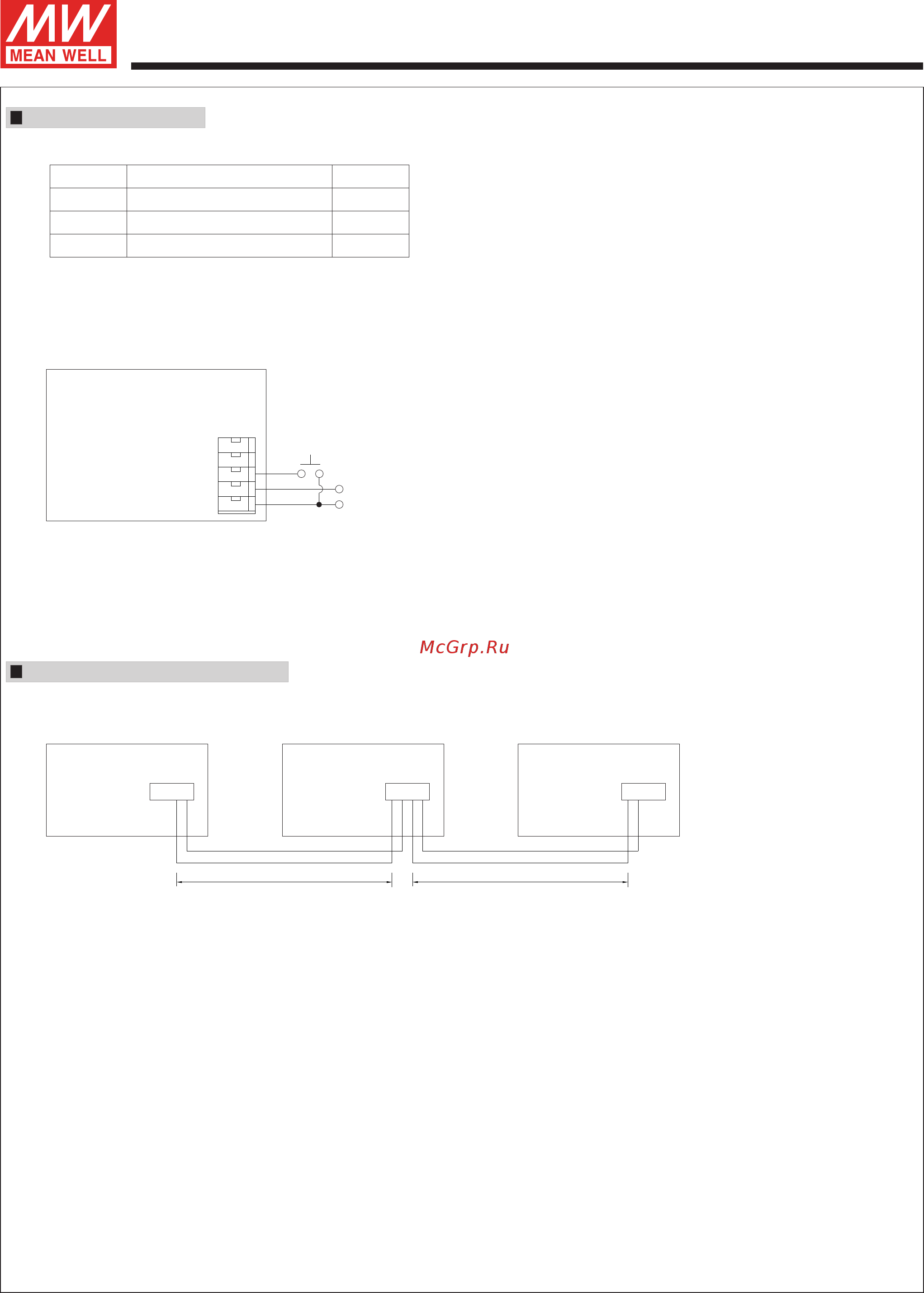

DIMMING OPERATION

SYNCHRONIZATION OPERATION

※PUSH dim(primary side)

‧Maximum number of drivers up to 10 pcs.

‧Maximum length of the cable, from push button to last driver is 20 meter.

‧Factory setting at 100%.

‧When the light is lower than 10% it will always dim up, or when the light output is higher than 90% it will always dim down.

Warning: The pushbutton can only be connected in between the PUSH terminal of LCM-60DA and AC/L (brown or black color). It would cause short

circuit if it is connected to AC/N.

‧DALI protocol including 16 groups and 64 addresses.

‧First step is fixed at 6% of output.

※DALI interface(primary side)

Ignore <0.05 sec.To avoid reaction on AC spike

Short push 0.1~1 sec.Push to turn ON-OFF

Long push 1.5~10 sec.Dimming up or down

Reset push >11 sec.Setting light to 100%

20m 20m

File Name:LCM-60DA-SPEC 2014-03-28

60W Multiple-Stage Output Current LED Power Supply

LCM-60DA series

NOTE: Please make sure all units are set to 100% dimming setting(factory default) before synchronizing.
