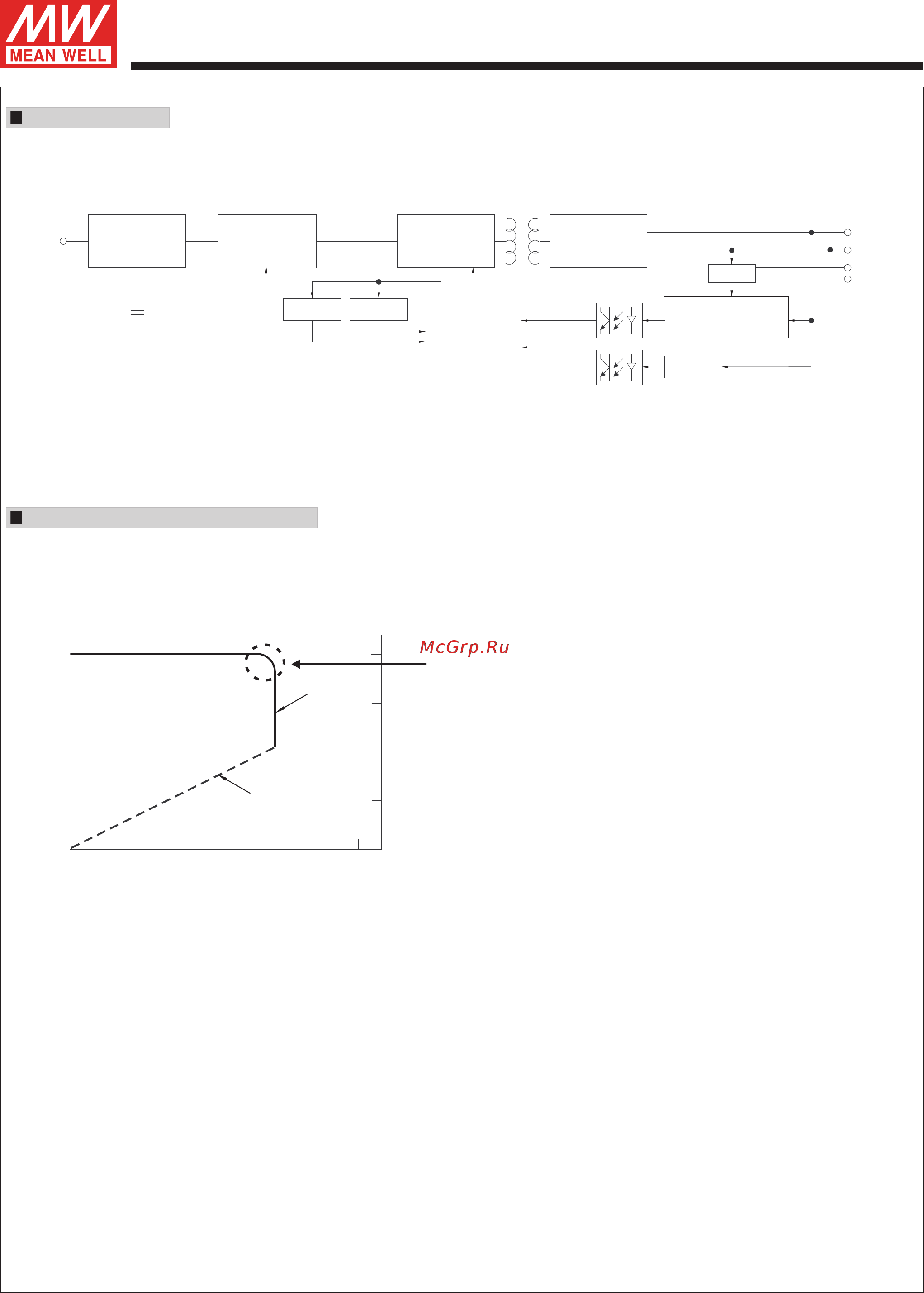

LPF-90D series
BLOCK DIAGRAM
fosc : 100KHz
DRIVING METHODS OF LED MODULE
DETECTION
PWM & PFC
CIRCUIT
O.L.P.O.T.P.
EMI FILTER
RECTIFIERS
POWER
SWITCHING
FILTER
&
RECTIFIERS
+V
-V
I/P
CONTROL
O.V.P.
&
O.L.P.
PFC
CIRCUIT
90W Constant Current Mode LED Driver
※ This series works in constant current mode to directly drive the LEDs.
Typical output current normalized by rated current (%)
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
100
60
(min.)
Vo(%)
50
100
Io(%)
Constant
Current area
Hiccup
Protection
DIM-
DIM+
File Name:LPF-90D-SPEC 2017-04-14
