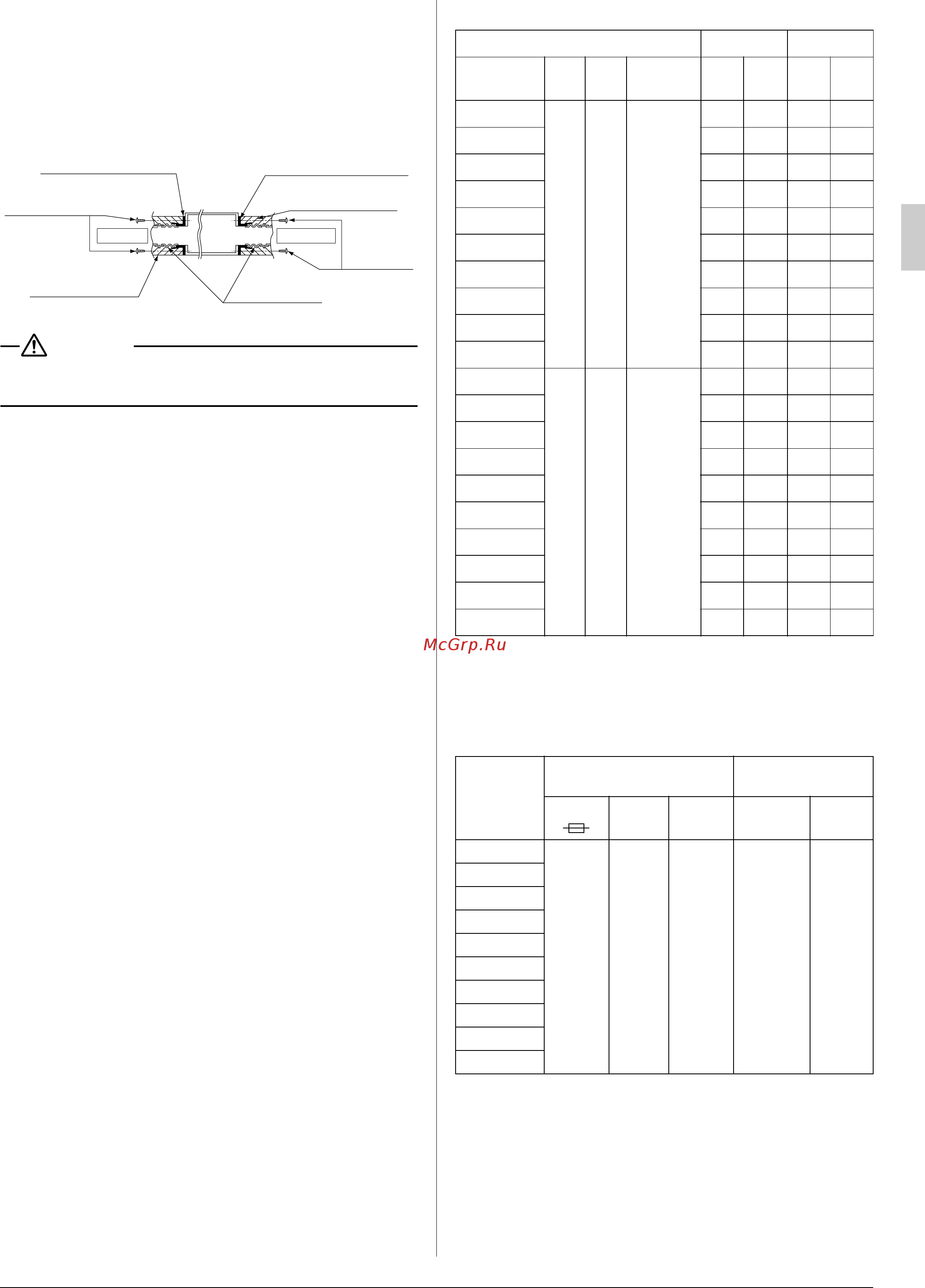

![Daikin FXMQ40PVES [11/17] Canvas duct field supply](/views2/1702320/page11/bgb.png)
English 9
Connection method of ducts on air inlet and outlet sides.
• Connect the field supply duct in alignment with the inner side
of the flange.
• Connect the flange and unit with the flange connection screw
(3).
• Wrap aluminum tape around the flange and duct joint in order
to prevent air leakage.
CAUTION
Connect the flange and unit with the flange connection screw (3)
regardless of whether the duct is connected to the air inlet side.
9. ELECTRIC WIRING WORK
9-1 GENERAL INSTRUCTIONS
• All field supplied parts and materials and electric works must
conform to local codes.
• Use copper wire only.
• For electric wiring work, refer to also “Wiring diagram”
attached to the control box lid.
• For remote controller wiring details, refer to the installation
manual attached to the remote controller.
• All wiring must be performed by an authorized electrician.
• This system consists of multiple indoor units. Mark each
indoor unit as unit A, unit B..., and be sure the terminal board
wiring to the outdoor unit and BS unit are properly matched.
If wiring and piping between the outdoor unit and an indoor
unit are mismatched, the system may cause a malfunction.
• A circuit breaker capable of shutting down power supply to
the entire system must be installed.
• Refer to the installation manual attached to the outdoor unit
for the size of power supply wiring connected to the outdoor
unit, the capacity of the circuit breaker and switch, and wiring
instructions.
• Be sure to ground the air conditioner.
• Do not connect the ground wire to gas and water pipes, light-
ning rods, or telephone ground wires.
• Gas pipes : might cause explosions or fire if gas leaks.
• Water pipes : no grounding effect if hard vinyl piping is
used.
• Telephone ground wires or lightning rods : might cause
abnormally high electric potential in the ground during
lighting storms.
9-2 ELECTRICAL CHARACTERISTICS
MCA: Min. Circuit Amps (A); MFA: Max. Fuse Amps (A)
kW: Fan Motor Rated Output (kW); FLA: Full Load Amps (A)
9-3 SPECIFICATIONS FOR FIELD SUPPLIED
FUSES AND WIRE
Allowable length of transmission wirings and remote controller
wiring are as follows.
(1) Outdoor unit – Indoor unit:
Max. 1000 m (Total wiring length: 2000 m)
(2) Indoor unit – Remote controller:
Max. 500 m
Unit
Flange on air outlet side
(provided with the unit)
Insulation material
(field supply)
Canvas duct
(field supply)
Flange on air inlet side
(provided with the unit)
Insulation material
(field supply)
Air inlet
Air outlet
Screws for duct
flanges (3)
(accessory)
Screws
for duct
flanges (3)
(accessory)
Units Power supply Fan motor
Model Hz Volts
Voltage
range
MCA MFA kW FLA
FXMQ20PVE
50
220-
240
Max. 264
Min. 198
0.6 16 0.09 0.5
FXMQ25PVE
0.6 16 0.09 0.5
FXMQ32PVE
0.6 16 0.09 0.5
FXMQ40PVE
1.4 16 0.140 1.1
FXMQ50PVE
1.6 16 0.350 1.3
FXMQ63PVE
1.8 16 0.350 1.4
FXMQ80PVE
2.3 16 0.350 1.8
FXMQ100PVE
2.9 16 0.350 2.3
FXMQ125PVE
3.4 16 0.350 2.7
FXMQ140PVE
3.4 16 0.350 2.7
FXMQ20PVE
60 220
Max. 242
Min. 198
0.6 16 0.09 0.5
FXMQ25PVE
0.6 16 0.09 0.5
FXMQ32PVE
0.6 16 0.09 0.5
FXMQ40PVE
1.4 16 0.140 1.1
FXMQ50PVE
1.6 16 0.350 1.3
FXMQ63PVE
1.8 16 0.350 1.4
FXMQ80PVE
2.3 16 0.350 1.8
FXMQ100PVE
2.9 16 0.350 2.3
FXMQ125PVE
3.4 16 0.350 2.7
FXMQ140PVE
3.4 16 0.350 2.7
Model
Power supply wiring
Remote controller wiring
Transmission wiring
Field fuses
Wire Size Wire Size
FXMQ20PVE
16A
H05VV-
U3G
Size must
comply
with local
codes.
Sheathed
wire
(2 wire)
0.75 -
1.25 mm
2
FXMQ25PVE
FXMQ32PVE
FXMQ40PVE
FXMQ50PVE
FXMQ63PVE
FXMQ80PVE
FXMQ100PVE
FXMQ125PVE
FXMQ140PVE
01_EN_3PN06583-7S.fm Page 9 Tuesday, March 16, 2010 8:43 PM
