4
7. Cable Connection Description

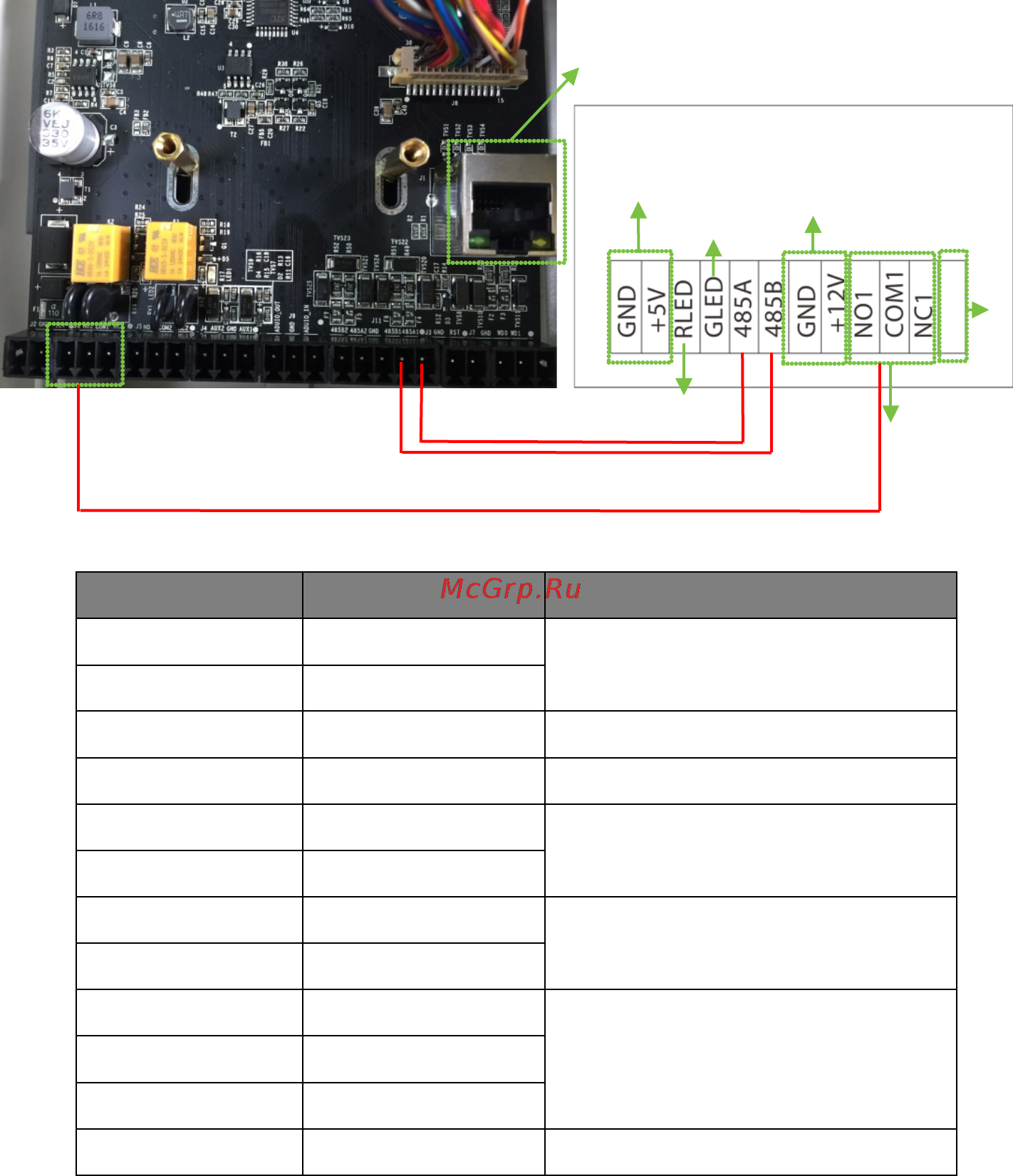

1) Wiring terminal diagram
2) Port description
Pin Wire Usage
GND Black
Power interface of the integrated
machine
+5V Red
RLED Red Red light
GLED Green Green light
485A Green For connecting to the 485A1 and
485B1 ports of the camera
485B White
GND
Black
Power interface of the camera
+12V Red
NO1
Green
Relay output for connecting to the
barrier gate
COM1 Red
NC1 Blue
Reserved
License Plate Recognition
Integrated Machine
485 connection cable
Green light
Red light
Reserved
License Plate Recognition Camera
Ethernet Interface
Relay output for
connecting to the
barrier gate
Power interface of the camera
Power interface of the integrated machine
