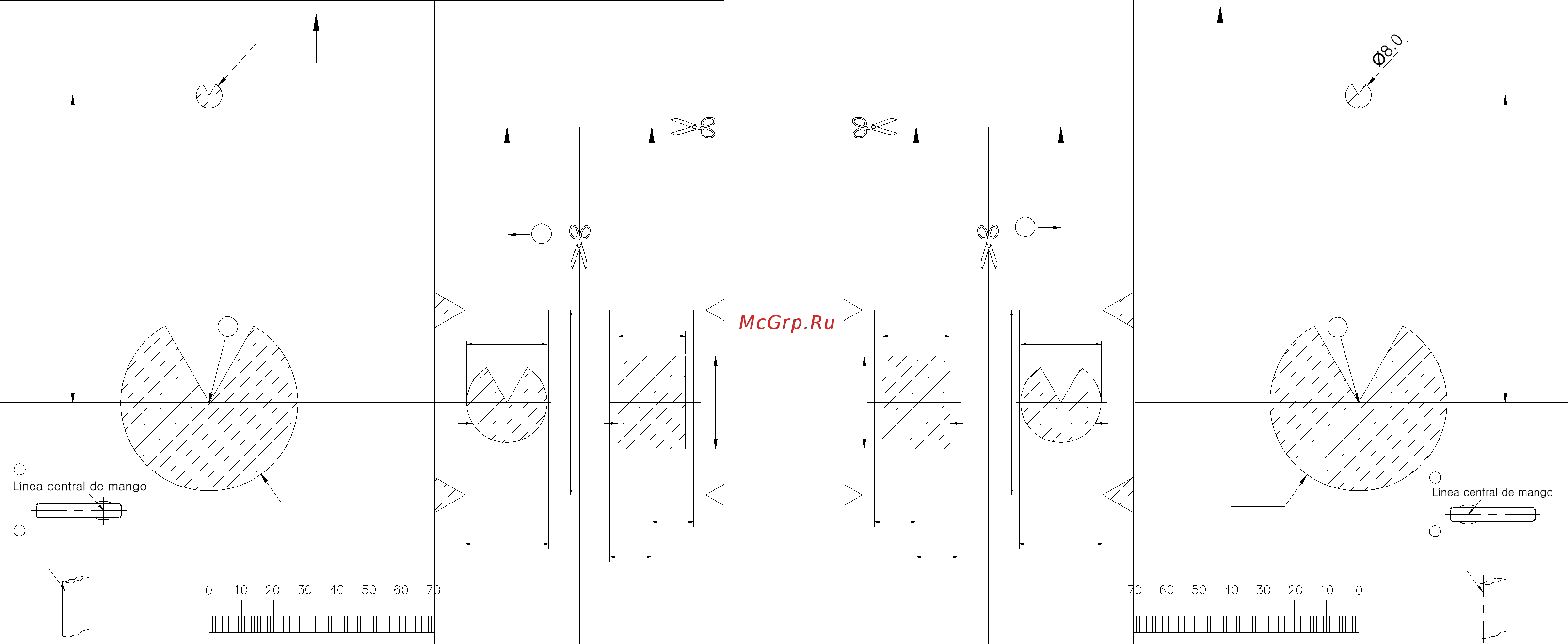

Installation Template
- Right Handle
UP
UP
UP
Depth:12mm [15/32"]
Align this line to the
Door side centerline
29.0
55mm
[2 11/64"]13mm
[33/64"]
13mm
[33/64"]
21mm
[53/64"]
26mm
[1 1/32"]
Installation Template
- Left Handle
UP
UP
UP
Depth:2mm [5/64"]
Depth:12mm [15/32"]
29.0
13mm
[33/64"]
13mm
[33/64"]
21mm
[53/64"]
26mm
[1 1/32"]
Align this line to the
Door side centerline
57.5mm [2 17/64"]
57.5mm [2 17/64"]
Door Frame HoleMortise Hole
Folding line for 70mm backset
Folding line for 60mm backset
Folding line for 60mm backset
Folding line for 70mm backset
Backset scale range
Depth:95mm [3 47/64"]
Depth:95mm [3 47/64"]
55mm
[2 11/64"]
Rango de escala de conjunto posterior
1
1
2
2
1
2
1
2

- Mango Izquierdo

- Mango Derecho


Arriba
Arriba
Arriba
Arriba
Arriba
Arriba
Backset scale range
Rango de escala de conjunto posterior

central en el lado de la puerta

central en el lado de la puerta


Profundidad:95mm [3 47/64"]
Profundidad:12mm [15/32"]
Agujero de marco de puerta
Agujero empotrado
Door Frame Hole
Agujero de marco de puerta
Mortise Hole
Agujero empotrado
Profundidad:12mm [15/32"]
Profundidad:95mm [3 47/64"]
Profundidad:2mm
[5/64"]
Depth:3mm [1/8"]
Profundidad:3mm
[1/8"]
Depth:2mm [5/64"]
Profundidad:2mm
[5/64"]
Depth:3mm [1/8"]
Profundidad:3mm
[1/8"]
Handle centerline
Door side centerline
Lado de la puerta

Handle centerline
Door side centerline
Lado de la puerta

Note(Nota):
Note(Nota):
25mm
[63/64"]
25mm
[63/64"]
95.5
95.5
8.0
