MEAN WELL ODLC-65-1400DA [4/6] Output current

MEAN WELL ODLC-65-1400DA [4/6] Output current

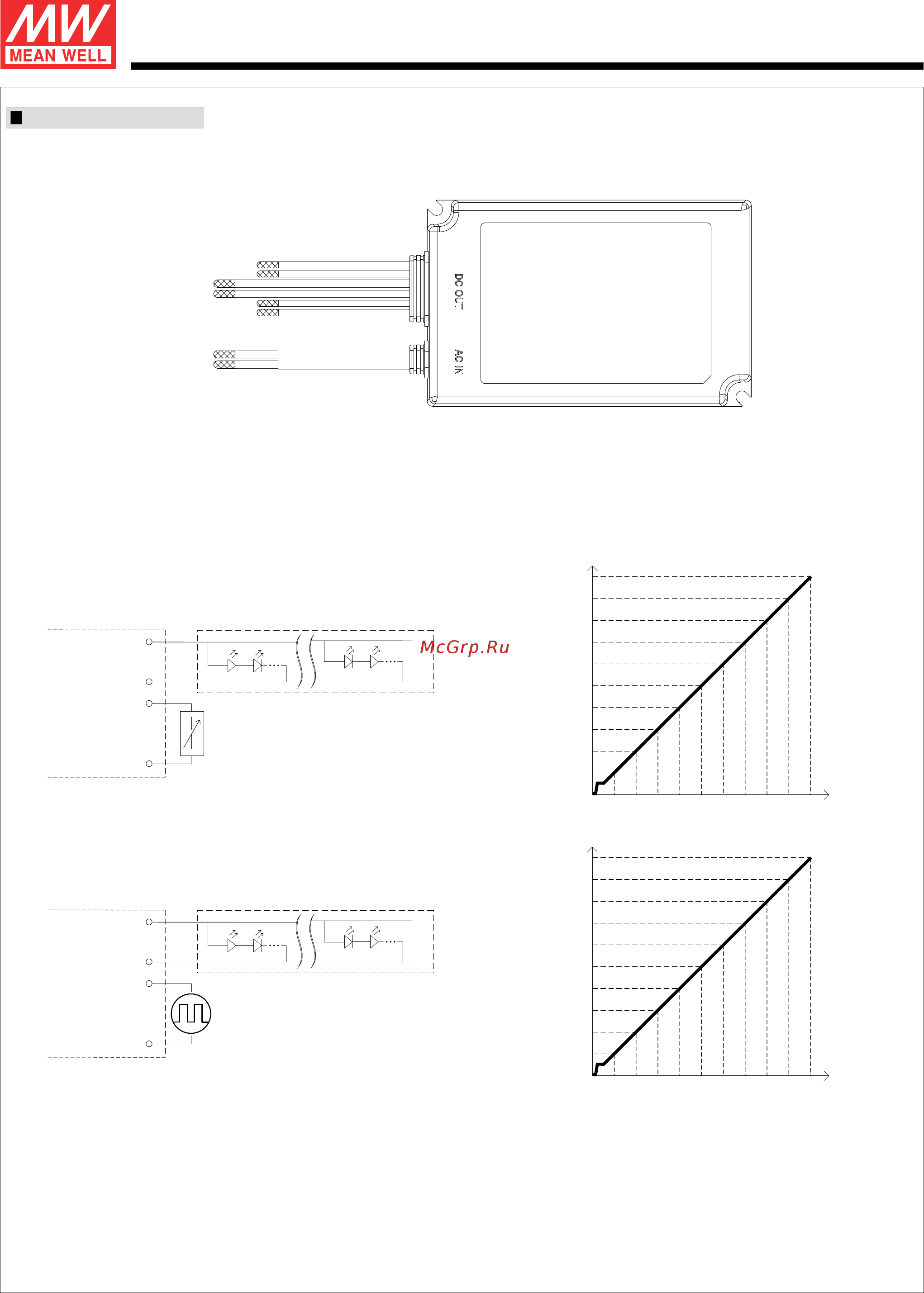

DIMMING OPERATION
※ 2 in 1 dimming function
Output constant current level can be adjusted by applying one of the two methodologies between DIM+ and DIM-:
0 ~ 10VDC, or 10V PWM signal.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
◎ Applying additive 0 ~ 10VDC
◎ Applying additive 10V PWM signal (frequency range 300Hz ~ 3KHz):
Note : 1. Min. dimming level is about 8% and the output current is not defined when 0%< out<8%.I
2. The output current could drop down to 0% when dimming input is about 0Vdc or 10V PWM signal with 0% duty cycle.
Vo+
Vo-
DIM+
DIM-
+
+
+
-
-
-
“DO NOT connect "DIM- to Vo-"
Additive Voltage
DIM+
DIM-
+
+
-
-
“DO NOT connect "DIM- to Vo-"
Additive PWM signal
0V 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
10%
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Output current (%)
0%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
10%
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Output current (%)
Dimming input: Additive voltage
Duty cycle of additive 10V PWM signal dimming input
File Name:ODLC-65-SPEC 2016-10-26
65W Constant Current Mode LED Driver
ODLC-65 series
AUX+(Yellow)
AUX-(Green)
Vo+(Red)
Vo-(Black)
DIM+(Purple)
DIM-(Gray)
ACL(Brown)
ACN(Blue)
Vo+
Vo-
