MEAN WELL ODLC-65A-1400 [3/6] Odlc 6

File Name:ODLC-65-SPEC 2016-10-26

fosc : 70KHz

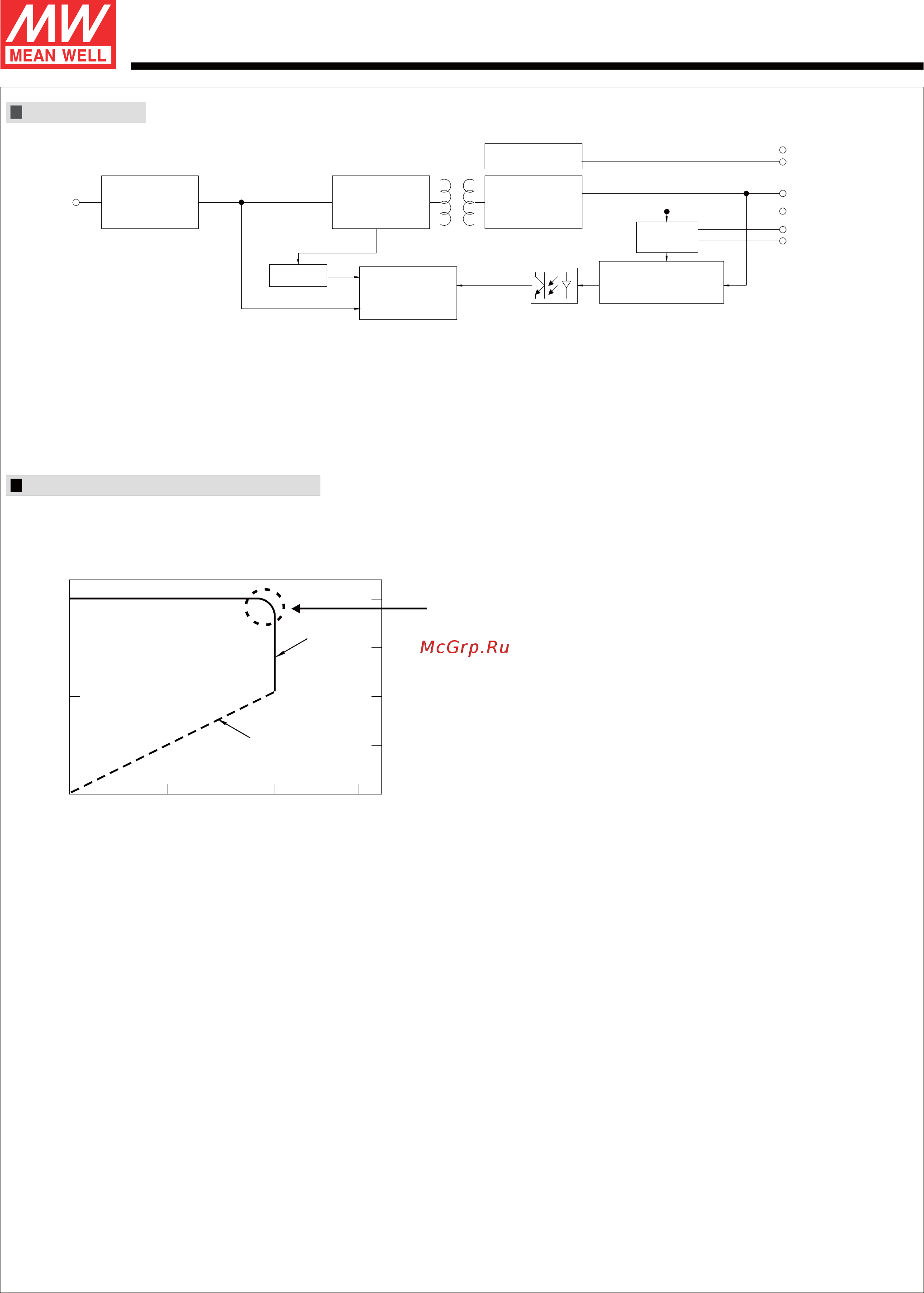

Block Diagram

65W Constant Current Mode LED Driver

ODLC-65 series

DIM+

DIM-

DETECTION

CIRCUIT

EMI FILTER

RECTIFIERS

POWER

SWITCHING

FILTER

RECTIFIERS

AUX+(for A-Type)

I/P

CONTROL

CURRENT

LIMIT

PWM&PFC

O.L.P.

AUX-(for A-Type)

Vo+

Vo-

DRIVING METHODS OF LED MODULE

※ This series works in constant current mode to directly drive the LEDs.

Typical output current normalized by rated current (%)

In the constant current region, the highest voltage at the output of the driver

depends on the configuration of the end systems.

Should there be any compatibility issues, please contact MEAN WELL.

100

(min.)

Vo(%)

100

Io(%)

Constant

Current area

Hiccup

Protection
