MEAN WELL ODLV-65A-60 [3/6] Acl brown acn blue

MEAN WELL ODLV-65A-60 [3/6] Acl brown acn blue
File Name:ODLV-65-SPEC 2016-12-01
65W PWM Output LED Driver
ODLV-65 series

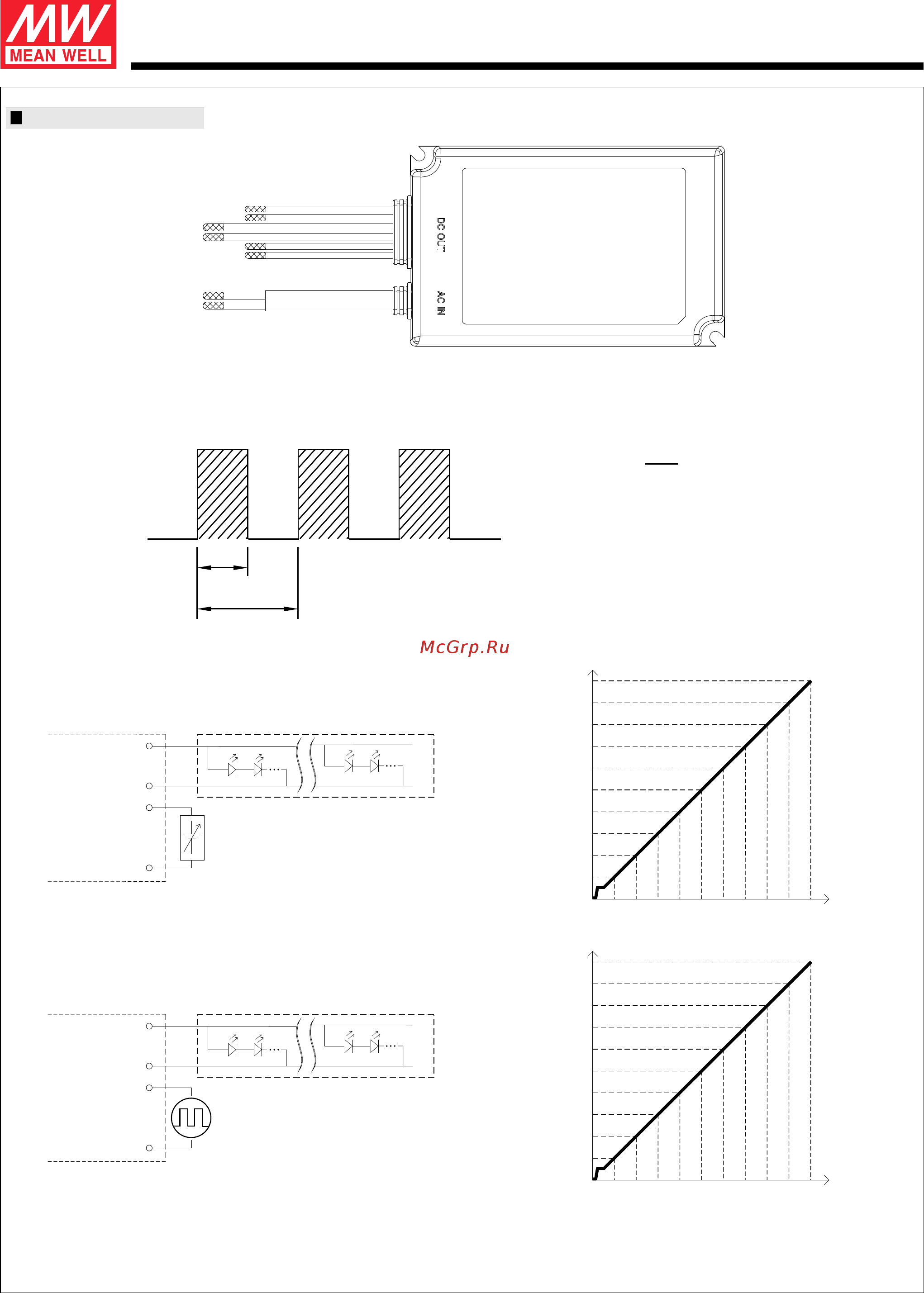

DIMMING OPERATION
※ 2 in 1 dimming function
◎ Applying additive 0 ~ 10VDC
◎ Applying additive 10V PWM signal (frequency range 300Hz~3KHz):
Vo+
Vo-
DIM+
DIM-
+
+
+
-
-
-
“DO NOT connect "DIM- ”to Vo-
Additive Voltage
Vo+
Vo-
DIM+
DIM-
+
+
-
-
“DO NOT connect "DIM- ”to Vo-
Additive PWM signal
0V 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
10%
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
10%
0%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Dimming input: Additive voltage
Duty cycle of additive 10V PWM signal dimming input
※ Dimming principle for PWM style output
ON
OFF
T
ON
T
Output DC current
Io=0A
Output PWM frequency : 1KHz ( 20%)±
Duty cycle(%) = ×100%
T
ON
T
Dimming is achieved by varying the duty cycle of the output current.
Duty cycle of output current (%)
Duty cycle of output current (%)
Note : 1. Min. duty cycle of output current is about 8% and the output current is not defined when 0%< out<8%.I
2. The duty cycle of output current could drop down to 0% when dimming input is about 0Vdc or 10V PWM signal with 0% duty cycle.
AUX+(Yellow)
AUX-(Green)
Vo+(Red)
Vo-(Black)
DIM+(Purple)
DIM-(Gray)
ACL(Brown)
ACN(Blue)
