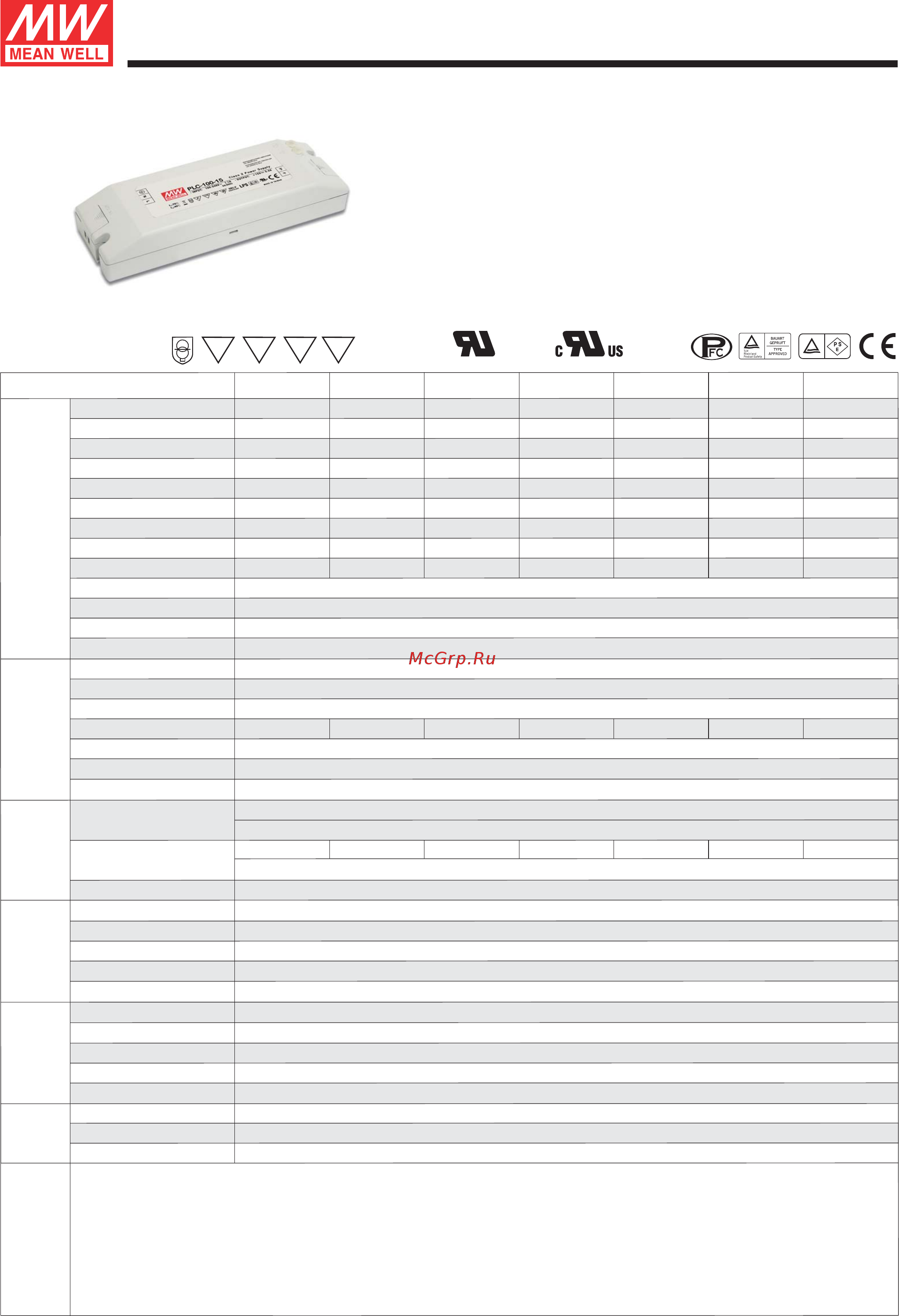

SPECIFICATION

MODEL PLC-100-12 PLC-100-15 PLC-100-20 PLC-100-24 PLC-100-27 PLC-100-36 PLC-100-48

DC VOLTAGE

RATED CURRENT

Note.6

CURRENT RANGE Note.6

RATED POWER Note.6

OUTPUT

VOLTAGE ADJ. RANGE

(Vo ADJ)

CURRENT ADJ. RANGE

(Io ADJ)

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

Note.5

FREQUENCY RANGE

POWER FACTOR (Typ.)

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INPUT

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

SAFETY STANDARDS

Note.7

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

MTBF

DIMENSIONOTHERS

NOTE

PACKING

OVER CURRENT (Typ.)

Note.4

OVER VOLTAGE

OVER TEMPERATURE

12V 15V 20V 24V 27V 36V 48V

5A 5A 4.8A 4A 3.55A 2.65A 2A

0 ~ 5A 0 ~ 5A 0 ~ 4.8A 0 ~ 4A 0 ~ 3.55A 0 ~ 2.65A 0 ~ 2A

60W 75W 96W 96W 95.85W 95.4W 96W

150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p

±3.0%

10.2 ~ 12V

3.75 ~ 5A

12.8 ~ 15V

3.75 ~ 5A

17 ~ 20V

3.6 ~ 4.8A

20.4 ~ 24V

3 ~ 4A

23 ~ 27V

2.6 ~ 3.55A

30.6 ~ 36V

2 ~ 2.65A

40.8 ~ 48V

1.5 ~ 2A

±1.0%

±2.0%

1200ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load

60ms/230VAC 30ms/115VAC at full load

90 ~ 264VAC 127 ~ 370VDC

47 ~ 63Hz

PF>0.95/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)

83% 85%

±3.0%

88.5%

±3.0%

88.5%

±3.0%

88%

±3.0%

88%

±2.0%

88.5%

±2.0%

13 ~ 16V 16.5 ~ 20V 22 ~ 27V 27 ~ 34V 30 ~ 36V 39 ~ 48V 52 ~ 64V

12V:0.8A/115VAC 0.4A/230VAC 15V:0.9A/115VAC 0.45A/230VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC

<0.75mA / 240VAC

95 ~ 102%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 approved

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃

-30 ~ +50 (Refer to "Derating Curve")℃

20 ~ 95% RH non-condensing

-40 ~ +80 , 10 ~ 95% RH℃

±℃ ℃0.03%/ (0 ~ 50 )

10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

297.9K hrs min. MIL-HDBK-217F (25 )℃

200.5*69.5*35mm (L*W*H)

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Please refer to "DRIVING METHODS OF LED MODULE".

5. Derating may be needed under low input voltage. Please check the static characteristics for more details.

6. This is the maximum possible output current and power. Over load protection may be activated slightly below this level to comply with the requirement

of UL1310 class 2.

7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.

8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the

complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

File Name:PLC-100-SPEC 2013-11-27

0.52Kg; 25pcs/14Kg/0.65CUFT

Protection type : Shut down and latch off o/p voltage, re-power on to recover

100W Single Output Switching Power Supply

•

Universal AC input / Full range

•High efficiency up to 88.5%

•Protections: Short circuit / Over current / Over voltage / Over temperature

•Cooling by free air convection

•Built-in active PFC function

•Class 2 power unit

• ass LPSP

•100% full load burn-in test

•High reliability

•Suitable for LED lighting and moving sign applications

•Compliance to worldwide safety regulations for lighting

•2 years warranty

■

Features :

PLC-100 series

RIPPLE & NOISE (max.) Note.2

VOLTAGE TOLERANCE Note.3

ENVIRONMENT

SAFETY &

EMC

PROTECTION

Shut down o/p voltage, re-power on to recover

Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2,-3, Class C ( 70% load) ; EN61000-3-3≧

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level, (surge 4KV), criteria A

9 ~ 12V 11.25 ~ 15V 15 ~ 20V 18 ~ 24V 20.25 ~ 27V 27 ~ 36V 36 ~ 48V

CONSTANT CURRENT REGION

Note.4

EMC IMMUNITY

EMC EMISSION

( for 48V only) ( except for 48V )

FMM

110

LPS

SELV

COLD START 40A(t =950 s measured at 50% I ) at 230VACwidth peak
